System Diagram

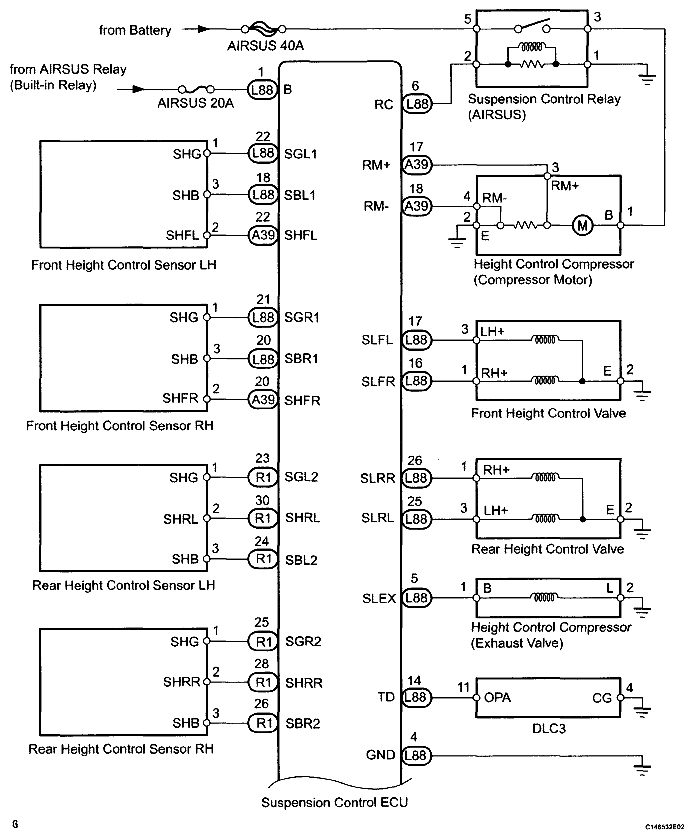

Fig 1: Suspension Control System - System Diagram (1 Of 3)
G04944104Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

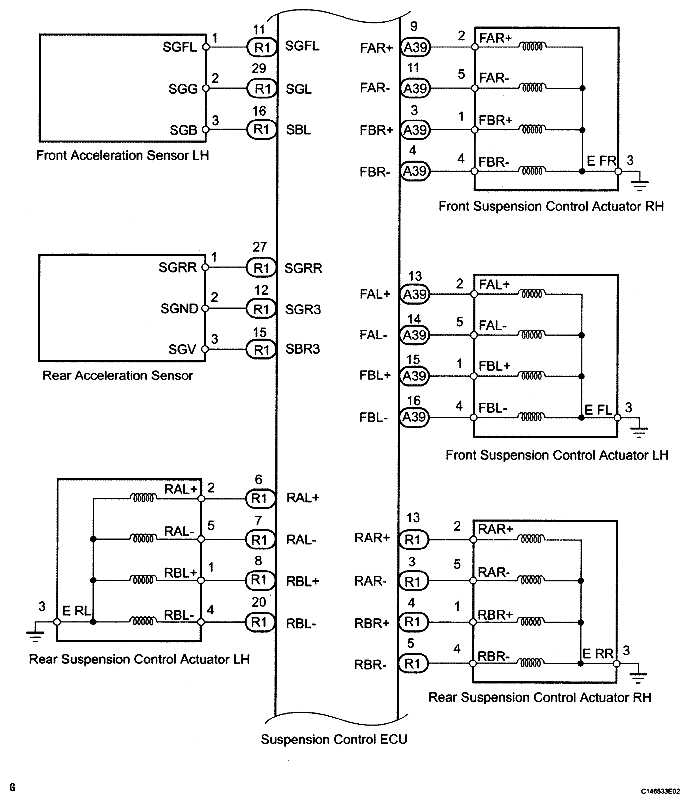

Fig 2: Suspension Control System - System Diagram (2 Of 3)
G04944105Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

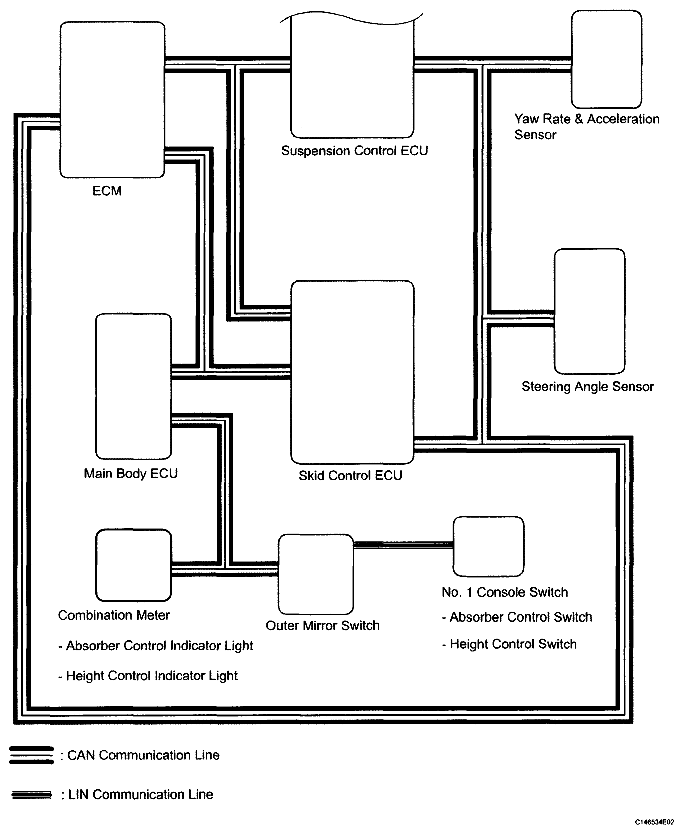

Fig 3: Suspension Control System - System Diagram (3 Of 3)
G04944106Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
