Home >> Lexus >> 2007 >> LS 460 >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Suspension Control >> ABSORBER CONTROL ACTUATOR (for Rear Side) >> Components

ABSORBER CONTROL ACTUATOR (for Rear Side): Components

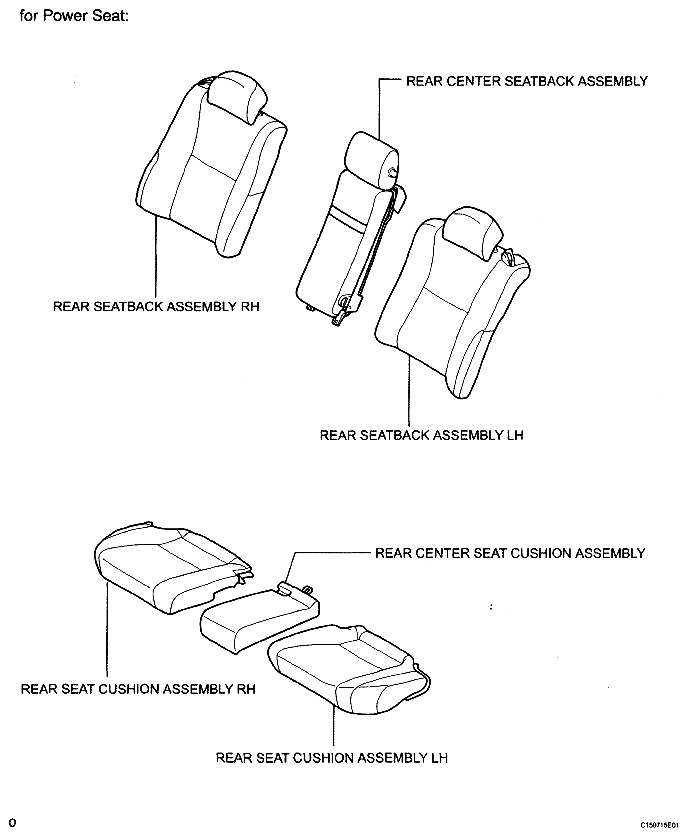

Fig 1: Identifying Absorber Control Actuator (For Rear Side) Components (1 Of 5)
G04944251Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

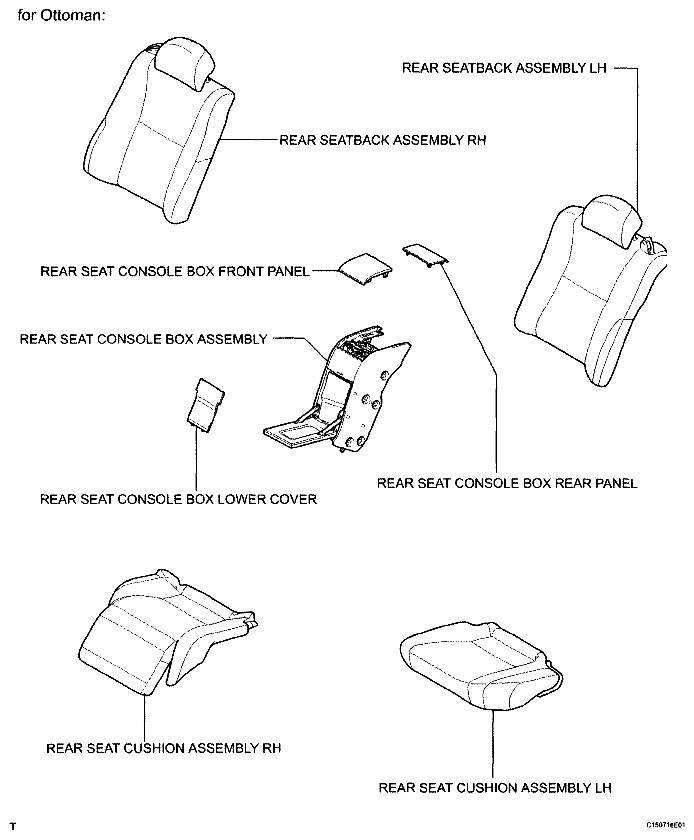

Fig 2: Identifying Absorber Control Actuator (For Rear Side) Components (2 Of 5)
G04944252Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

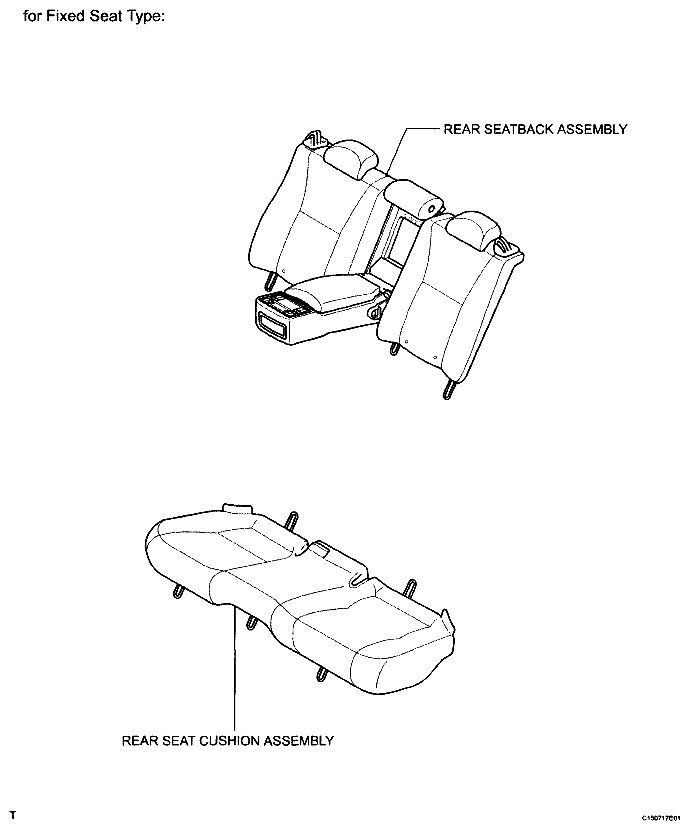

Fig 3: Identifying Absorber Control Actuator (For Rear Side) Components (3 Of 5)
G04944253Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

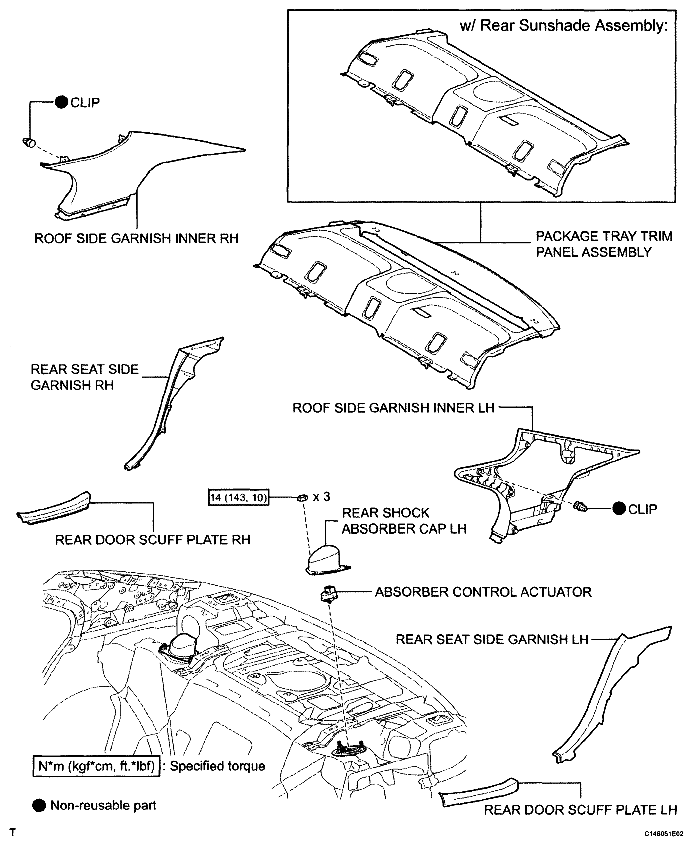

Fig 4: Absorber Control Actuator (For Rear Side) Replacement Components With Torque Specifications (4 Of 5)
G04944254Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Fig 5: Absorber Control Actuator (For Rear Side) Replacement Components With Torque Specifications (5 Of 5)
G04944255Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
