Home >> Lexus >> 2007 >> LS 460 >> Repair and Diagnosis >> Suspension >> Suspension Control Systems >> Suspension Control >> ABSORBER CONTROL ACTUATOR (for Front Side) >> Components

ABSORBER CONTROL ACTUATOR (for Front Side): Components

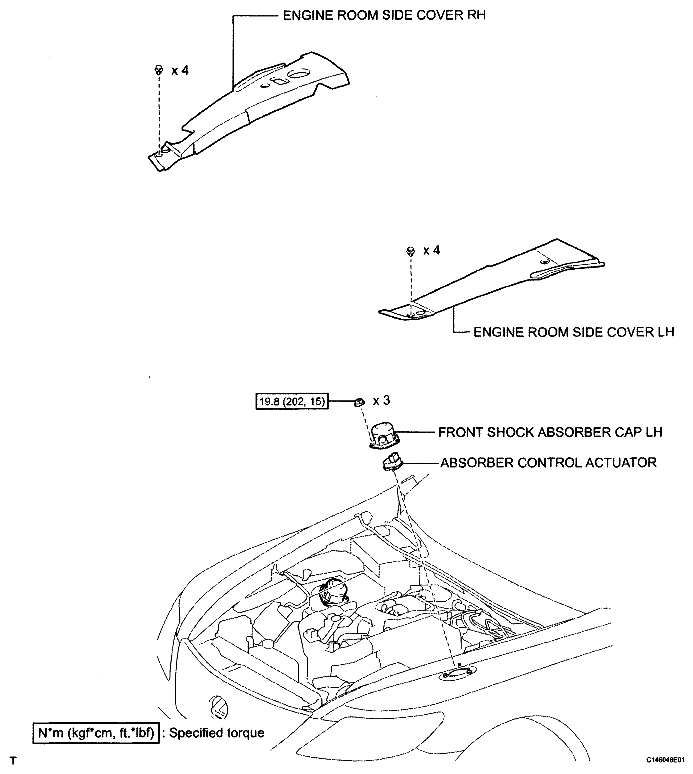

Fig 1: Absorber Control Actuator (For Front Side) Replacement Components With Torque Specifications
G04944243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
