Eng Speed, Mas A/F Se-B1, THRTL Sen 1, Ho2S2 (B1), INJ Pulse-B1

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Below is the data for "ENG SPEED", "MAS A/F SE-B1", "THRTL SEN 1", "HO2S2 (B1)", and "INJ PULSE-B1" when revving engine quickly up to 4,800 RPM under no load after warming up engine sufficiently. Each value is for reference, the exact value may vary.

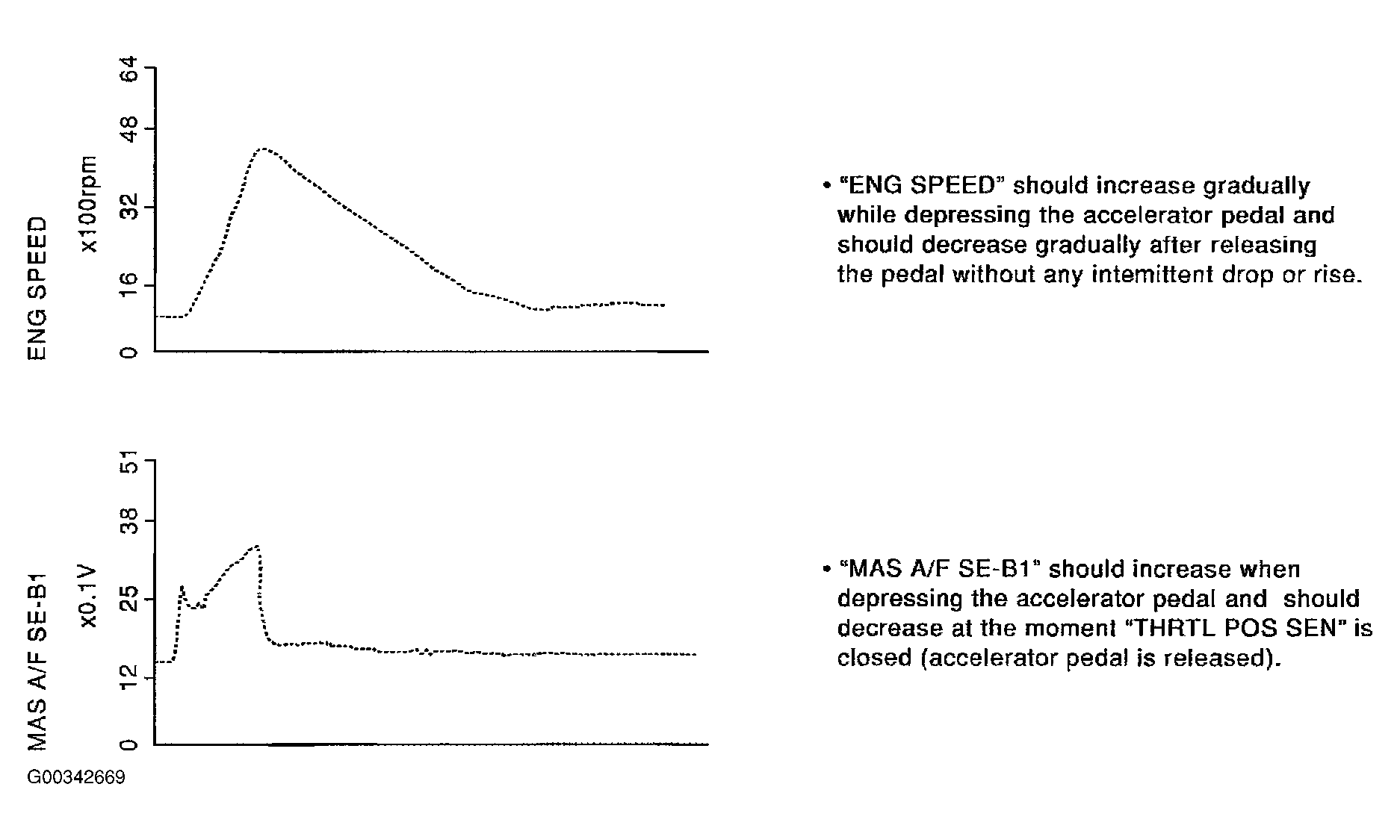

Fig 1: Major Sensor Reference Graph - ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), INJ PULSE-B1 (1 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.

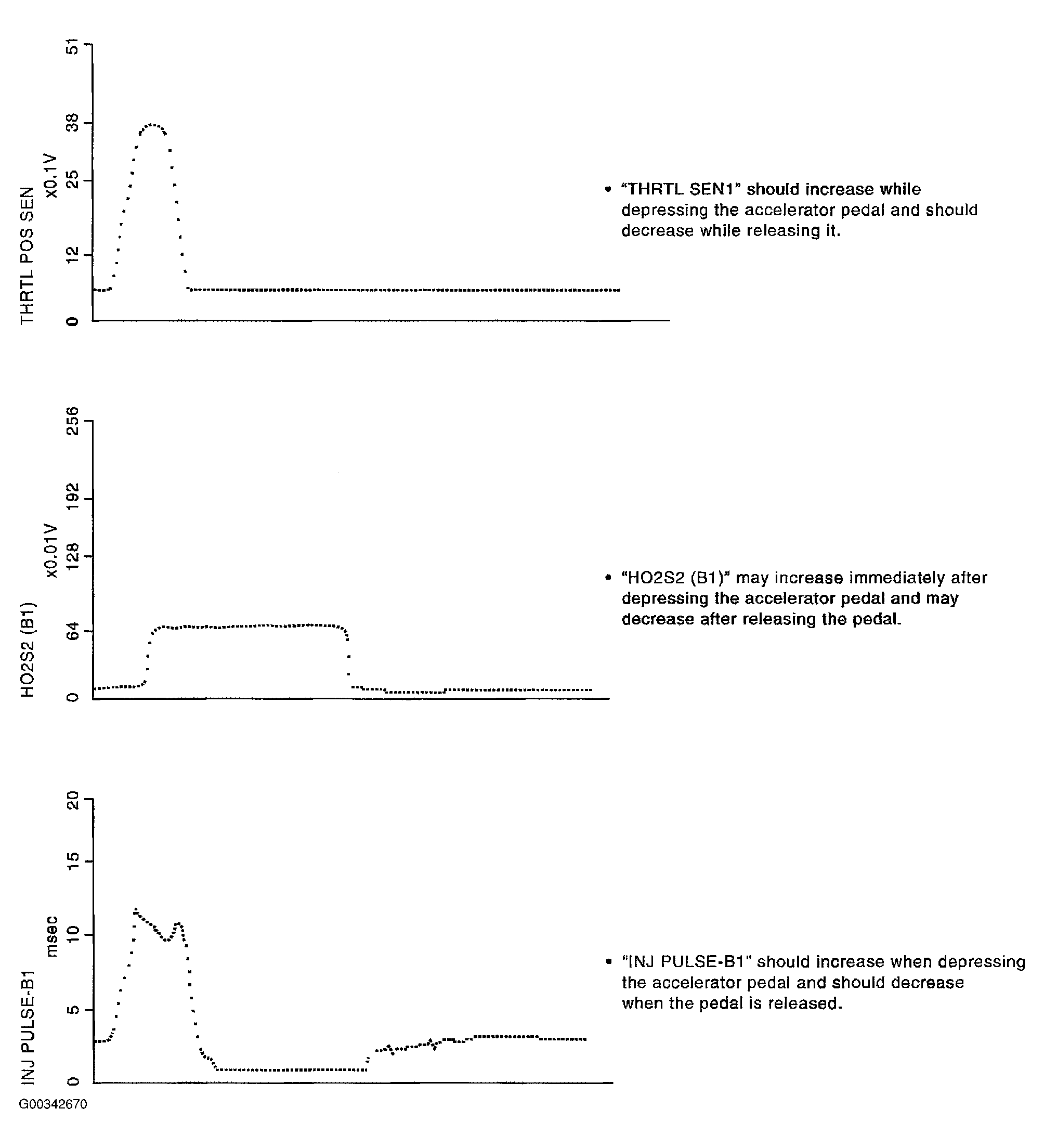

Fig 2: Major Sensor Reference Graph - ENG SPEED, MAS A/F SE-B1, THRTL SEN 1, HO2S2 (B1), INJ PULSE-B1 (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
