Schematic (Crew Cab)

WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

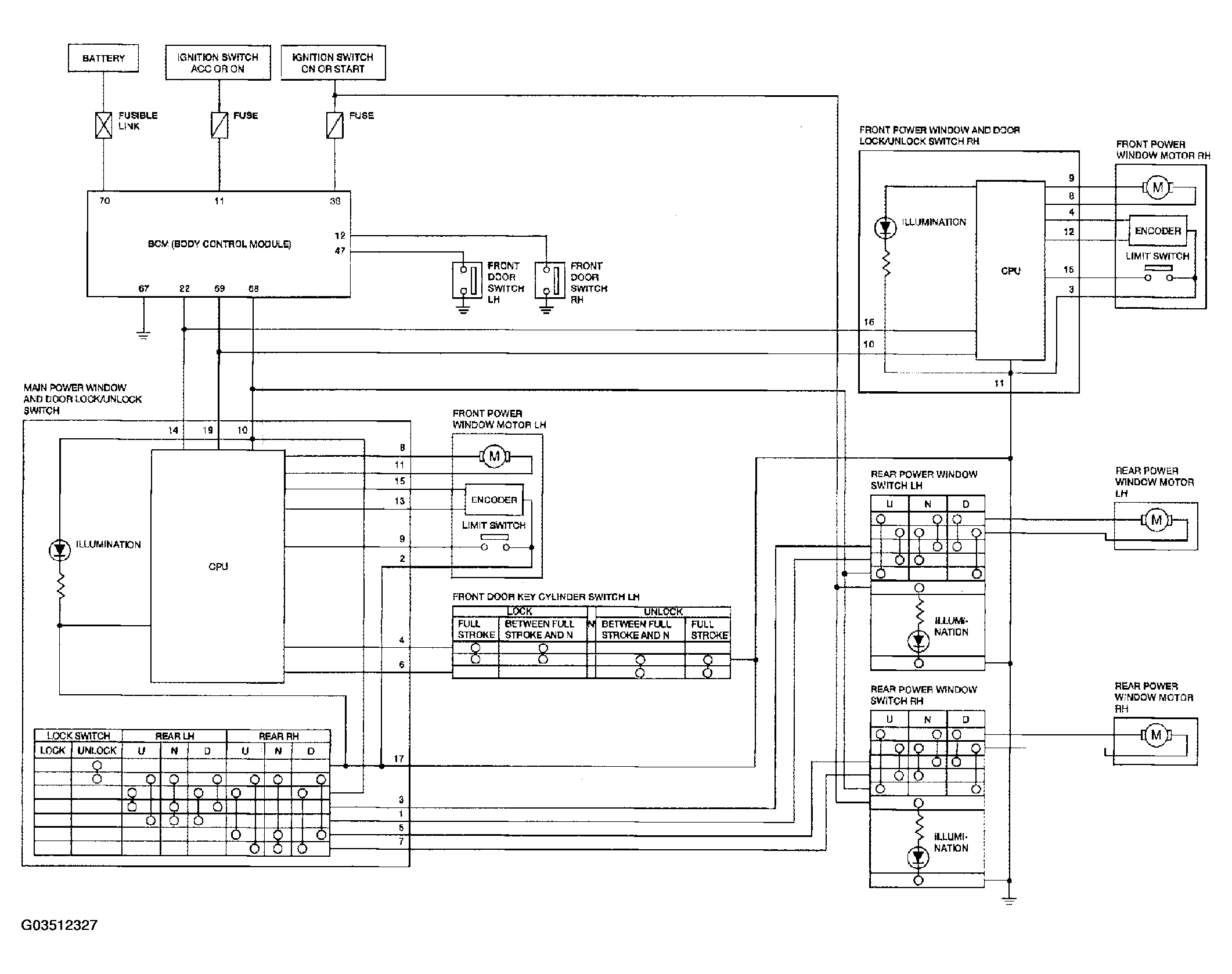

Fig 1: Power Window System - Schematic (Crew Cab)
G03512327Courtesy of NISSAN MOTOR CO., U.S.A.
