Schematic (With Rear Power Vent Windows)

WARNING: This page is about a different car, the 2004 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

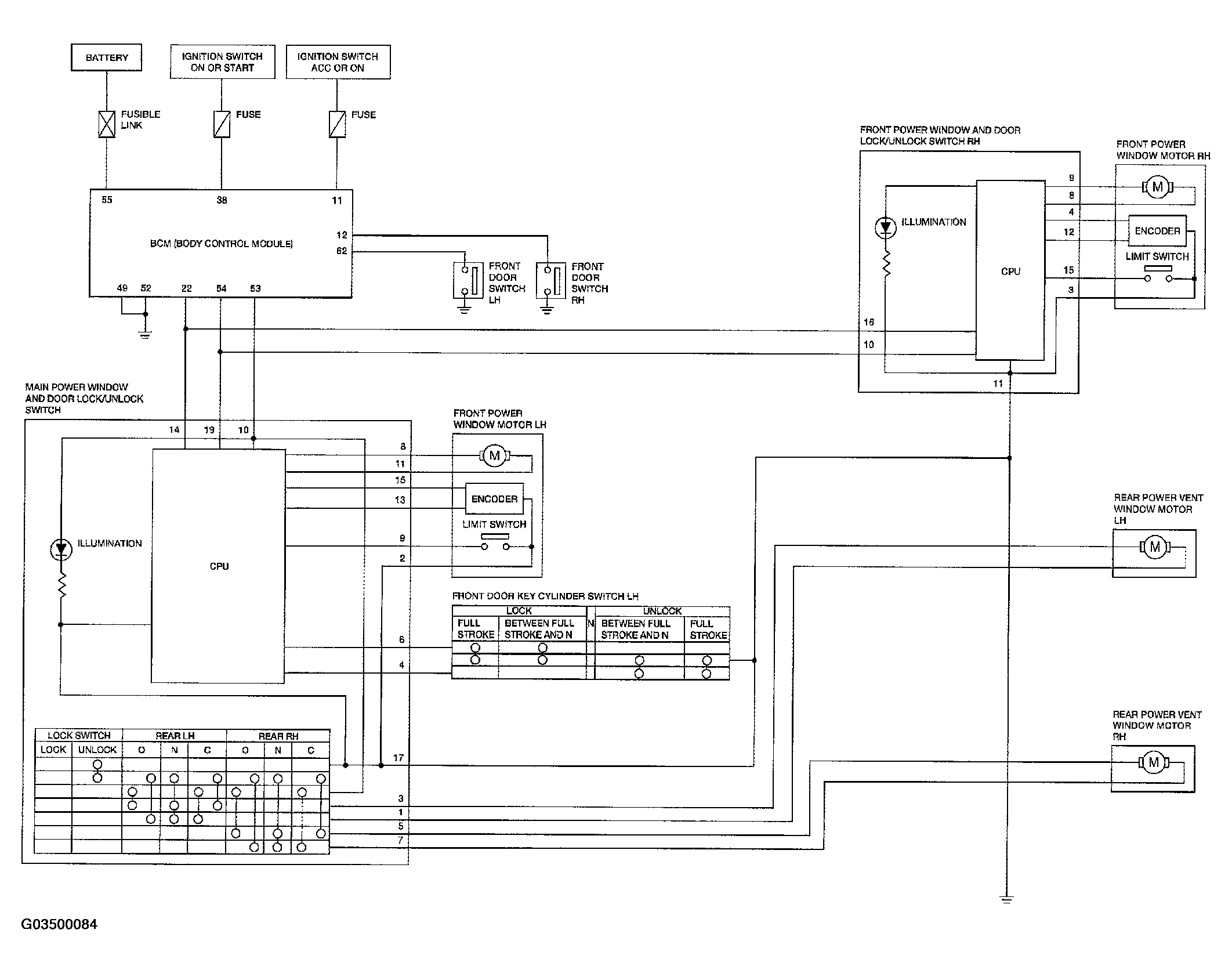

Fig 1: CAN Communication System Schematic Diagram (Without Rear Power Vent Windows)
G03500084Courtesy of NISSAN MOTOR CO., U.S.A.
