Instrument Panel Safety Pad: Installation

HINT:

A bolt without a torque specification is shown in the standard bolt chart (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

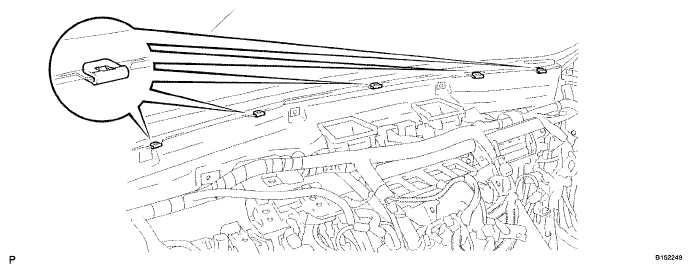

1. INSTALL NO. 3 INSTRUMENT PANEL STAY
   1. Attach the 5 claws to install the 5 stays.
      Fig 1: Identifying Claws And Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
      Fig 2: Identifying Claws And Stays

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

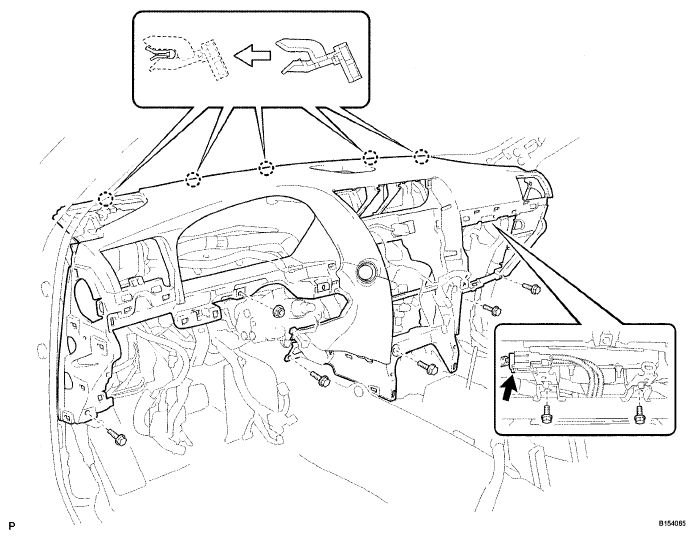

2. INSTALL INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
   1. Attach the 5 claws to install the safety pad.
   2. Install the 5 bolts and nut.
   3. Install the 2 passenger airbag bolts.

      Torque: 20 N*m (204 kgf*cm, 15 ft.*lbf)

      Fig 3: Identifying Passenger Airbag Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

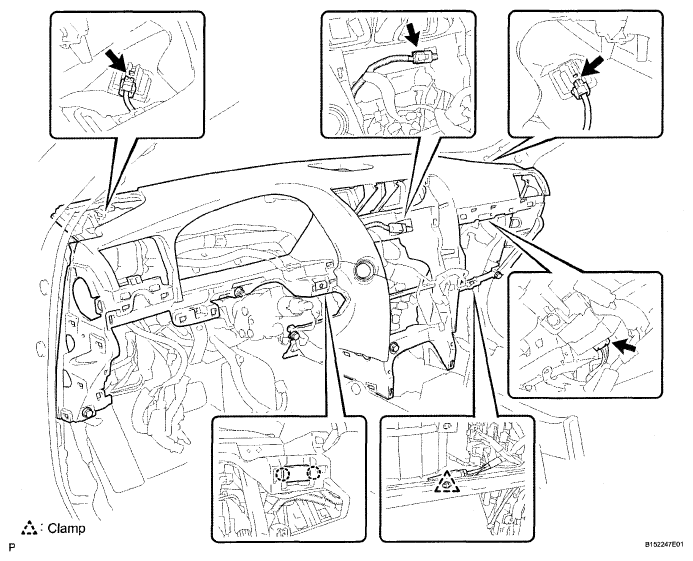

   4. Connect the connectors and clamps.
      Fig 4: Identifying Connectors And Clamps

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. INSTALL FRONT NO. 3 SPEAKER ASSEMBLY  (See INSTALLATION )
4. INSTALL NO. 1 SPEAKER HOLE COVER  (See INSTALLATION )
5. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for LH Side)  (See INSTALLATION )
6. INSTALL NO. 1 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
7. INSTALL FRONT NO. 2 SPEAKER ASSEMBLY (for RH Side)  (See INSTALLATION )
8. INSTALL NO. 2 INSTRUMENT PANEL SPEAKER PANEL SUB-ASSEMBLY  (See INSTALLATION )
9. INSTALL NO. 2 INSTRUMENT PANEL REGISTER ASSEMBLY
   1. Connect the connector.
   2. Attach the 4 claws to install the register.
      Fig 5: Identifying Claws And Register

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. INSTALL NO. 1 INSTRUMENT PANEL REGISTER ASSEMBLY
    1. Connect the connector.
    2. Attach the 4 claws to install the register.
11. INSTALL FRONT PILLAR GARNISH LH  (See INSTALLATION )
12. INSTALL FRONT PILLAR GARNISH RH  (See INSTALLATION )
13. INSTALL INTEGRATION CONTROL AND PANEL ASSEMBLY WITH BRACKET (w/o Navigation System)  (See INSTALLATION )
14. INSTALL MULTI-DISPLAY ASSEMBLY WITH BRACKET (for DVD)  (See INSTALLATION )
15. INSTALL DISPLAY AND NAVIGATION ASSEMBLY WITH BRACKET (for HDD)  (See INSTALLATION )
16. INSTALL RADIO RECEIVER ASSEMBLY WITH BRACKET  (See INSTALLATION )
    Fig 6: Identifying Claws And Register

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
17. INSTALL GLOVE COMPARTMENT DOOR ASSEMBLY
    1. Connect the connector and clamp, and install the compartment door.
    2. Install the 5 screws.
       Fig 7: Identifying Screws And Compartment Door

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
18. INSTALL NO. 2 INSTRUMENT CLUSTER MOULDING
    1. Attach the 5 clips to install the moulding.
19. INSTALL FRONT PASSENGER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
20. INSTALL INSTRUMENT PANEL LOWER  (See INSTALLATION )
    Fig 8: Identifying Clips And Moulding

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
21. INSTALL NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 4 claws to install the under cover.
       Fig 9: Identifying Claws And Under Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
22. INSTALL INSTRUMENT SIDE PANEL RH
    1. Attach the 6 clips to install the side panel.
23. INSTALL DRIVER SIDE KNEE AIRBAG ASSEMBLY  (See INSTALLATION )
    Fig 10: Identifying Clips And Side Panel

    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
24. INSTALL NO. 1 INSTRUMENT PANEL SAFETY PAD SUB-ASSEMBLY
    1. Connect the connectors.
       Fig 11: Identifying Claw And Cover

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the 5 clips and claw to install the safety pad.
    3. Install the 2 screws.
       Fig 12: Identifying Clips And Safety Pad

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Attach the claw to install the cover.
25. INSTALL NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY
    1. Connect the connectors and clamp.
    2. Attach the 2 claws.
    3. Install the under cover with the 2 screws.
       Fig 13: Identifying Under Cover And Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
26. INSTALL NO. 1 INSTRUMENT CLUSTER MOULDING
    1. Attach the 2 clips to install the moulding.
       Fig 14: Identifying Clips And Moulding

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
27. INSTALL INSTRUMENT SIDE PANEL LH
    1. Attach the 6 clips to install the side panel.
       Fig 15: Identifying Clips And Side Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
28. INSTALL COMBINATION METER ASSEMBLY
    1. Connect the connector.
    2. Install the combination meter with the 4 screws.
       Fig 16: Identifying Combination Meter And Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
29. INSTALL INSTRUMENT CLUSTER FINISH PANEL SUB-ASSEMBLY
    1. Connect the connectors.
    2. Attach the 2 clips to install the finish panel.
       Fig 17: Identifying Clips And Finish Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Install the 2 clips.
30. INSTALL TURN SIGNAL SWITCH ASSEMBLY WITH SPIRAL CABLE SUB-ASSEMBLY  (See INSTALLATION )
31. INSTALL STEERING COLUMN COVER (w/o Driver Monitor Camera)  (See INSTALLATION )
32. INSTALL STEERING COLUMN COVER (w/ Driver Monitor Camera)  (See INSTALLATION )
33. INSTALL STEERING WHEEL ASSEMBLY  (See INSTALLATION )
34. INSTALL STEERING PAD ASSEMBLY  (See INSTALLATION )
35. INSTALL NO. 2 STEERING WHEEL COVER LOWER  (See INSTALLATION )
36. INSTALL SWITCH AND VOLUME CASE  (See INSTALLATION )
37. INSTALL CONSOLE BOX ASSEMBLY
    1. Attach the 2 claws.
    2. Connect the connectors.
    3. Install the console box with the 4 bolts and 2 screws.
       Fig 18: Identifying Console Box With Bolts And Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
38. INSTALL CONSOLE COVER LOWER
    1. Install the cover.
39. INSTALL REAR CONSOLE END PANEL SUB-ASSEMBLY
    1. Connect the connector.
    2. Attach the 5 clips and 2 claws to install the end panel.
       Fig 19: Identifying Claws And End Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
40. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
    1. Connect the connector.
    2. Attach the 2 clips to install the panel.
       Fig 20: Identifying Clips And Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
41. INSTALL REAR CONSOLE PANEL UPPER
    1. Connect the connectors.
    2. Attach the 6 clips.
    3. Install the panel with the 2 screws.
       Fig 21: Identifying Panel And Clips

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
42. INSTALL NO. 3 BOX PANEL
    1. Attach the 4 claws to install the No. 3 panel.
       Fig 22: Identifying Claws And Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
43. INSTALL SHIFT LEVER KNOB SUB-ASSEMBLY
    1. Install the shift lever knob and twist it in the direction indicated by the arrow.
       Fig 23: Twisting Shift Lever Knob

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
44. INSTALL INSTRUMENT PANEL FINISH PANEL END RH
    1. Attach the 8 clips and claw to install the finish panel.
       Fig 24: Identifying Claw And Finish Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
45. INSTALL INSTRUMENT PANEL FINISH PANEL END LH
    1. Attach the 8 clips and claw to install the finish panel.
       Fig 25: Identifying Claw And Finish Panel

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
46. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
    NOTE: Reset the AUTO TILT AWAY function setting to the previous condition by changing the customize parameter (see CUSTOMIZE PARAMETERS ).
47. INSTALL COWL TOP VENTILATOR LOUVER RH  (See INSTALLATION )
48. PERFORM INITIALIZATION
    1. Perform initialization (see INITIALIZATION ).
    NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
49. SRS WARNING LIGHT
    1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
