Shift Paddle Switch Circuit: Wiring Diagram

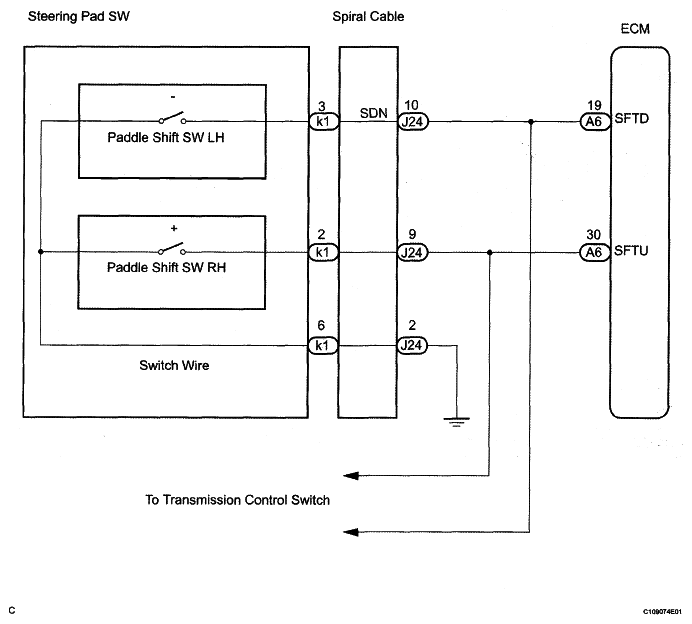

Fig 1: Wiring Diagram - Shift Paddle Switch Circuit

G05316906

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
