Integration Control And Panel: Disassembly

  1. REMOVE CENTER INSTRUMENT CLUSTER FINISH PANEL
    1. Remove the 6 screws.

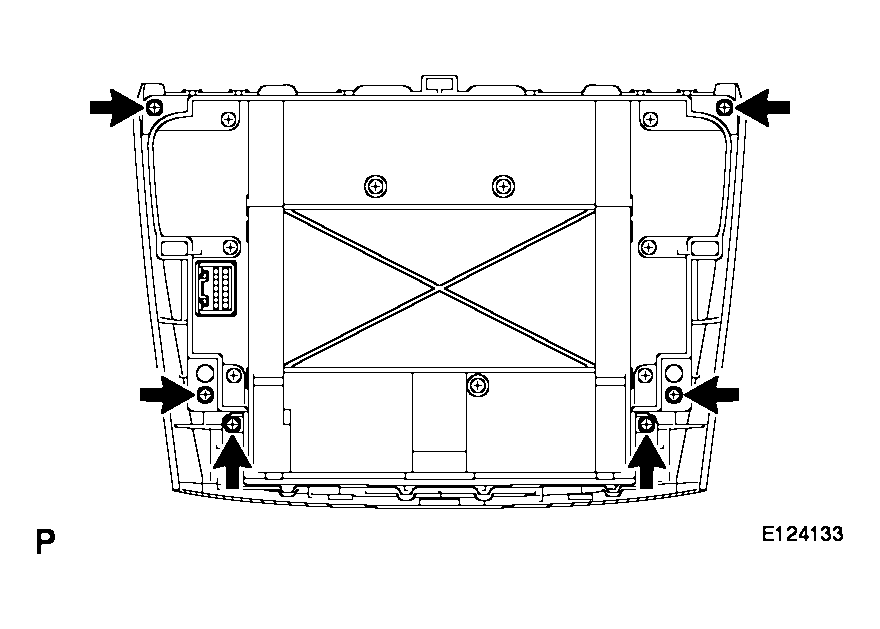

      Fig 1: Identifying Center Instrument Cluster Finish Panel Screws
      G04048538Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 5 claws, and remove the center instrument cluster finish panel.

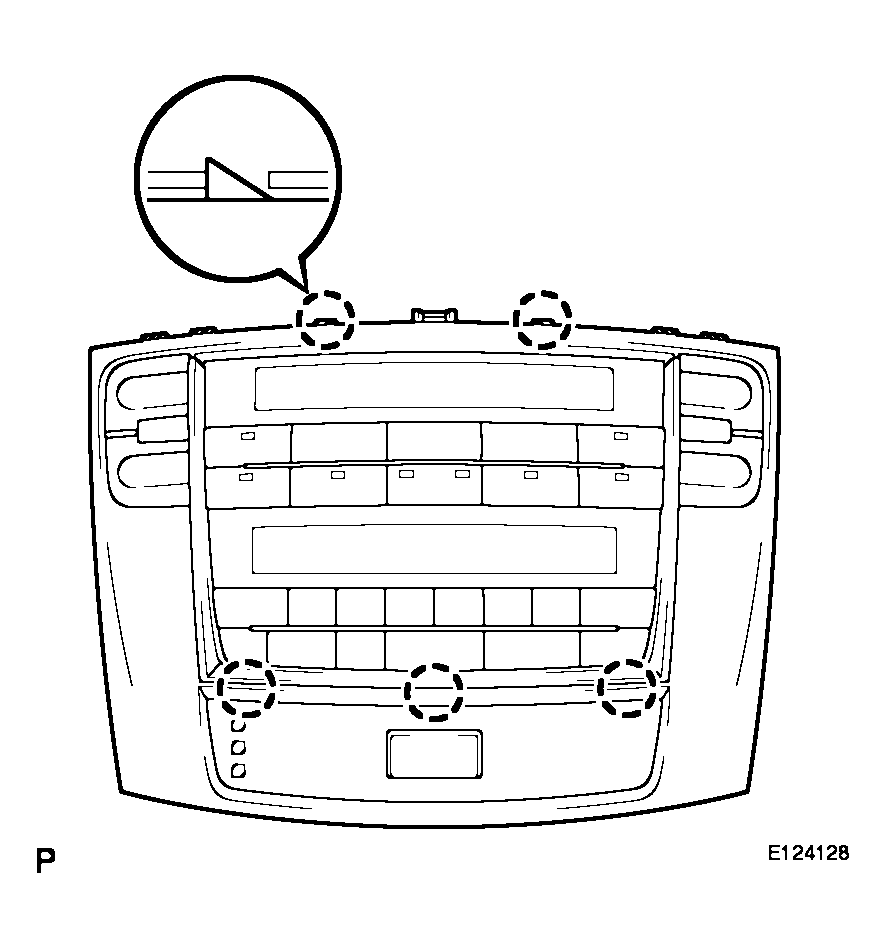

    Fig 2: Identifying Center Instrument Cluster Finish Panel
    G04048539Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 1 CONTROL KNOB SUB-ASSEMBLY
    1. Disengage the 16 claws, and remove the No. 1 control knob sub-assembly.

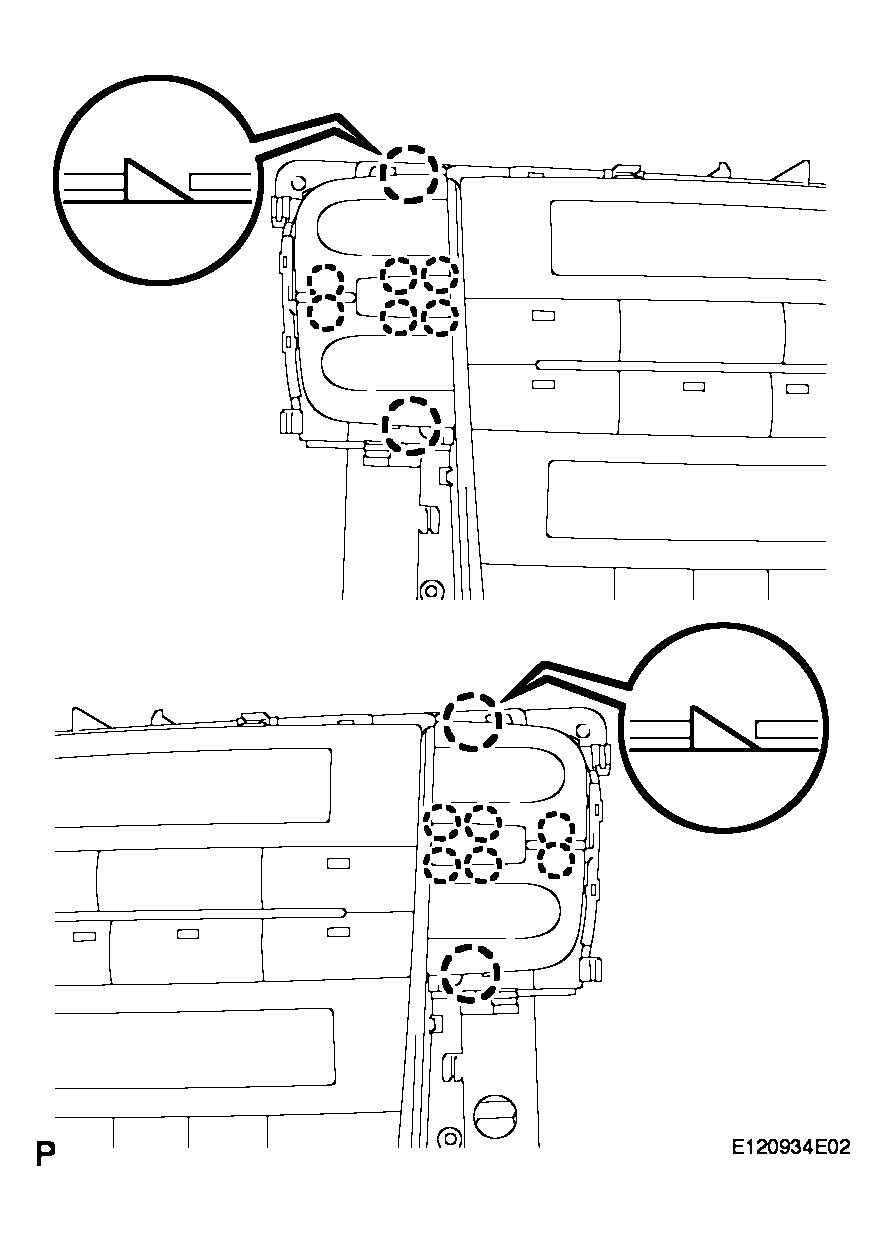

    Fig 3: Identifying Control Knob Sub-Assembly
    G04048540Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
