Blower Unit: Reassembly

  1. INSTALL COOLING UNIT WITH FAN MOTOR SUBASSEMBLY
    1. Install the fan motor with the 3 screws.

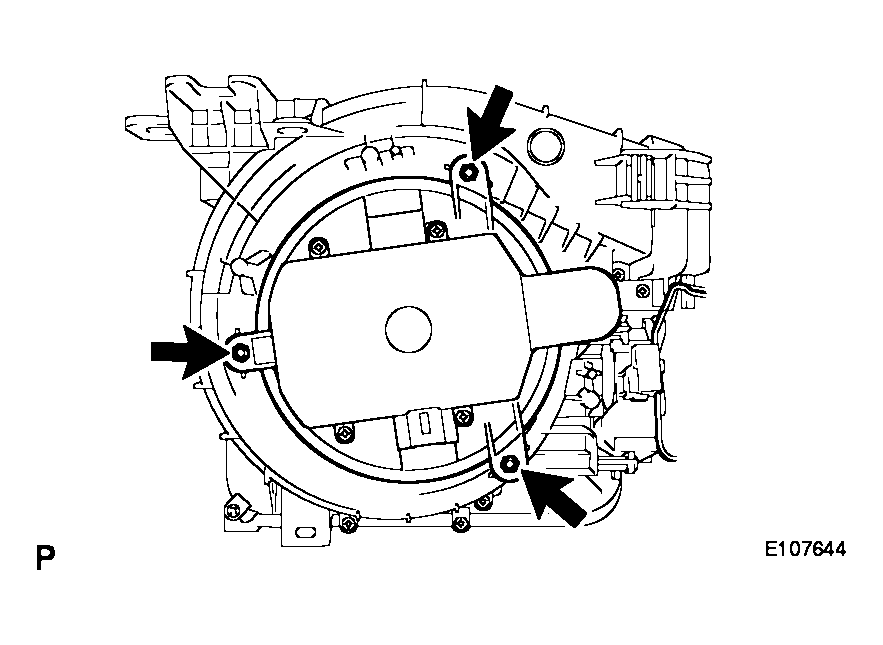

    Fig 1: Identifying Screws And Fan Motor
    G04048452Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL CLEAN AIR FILTER
    1. Attach the 2 claws to install the air filter.

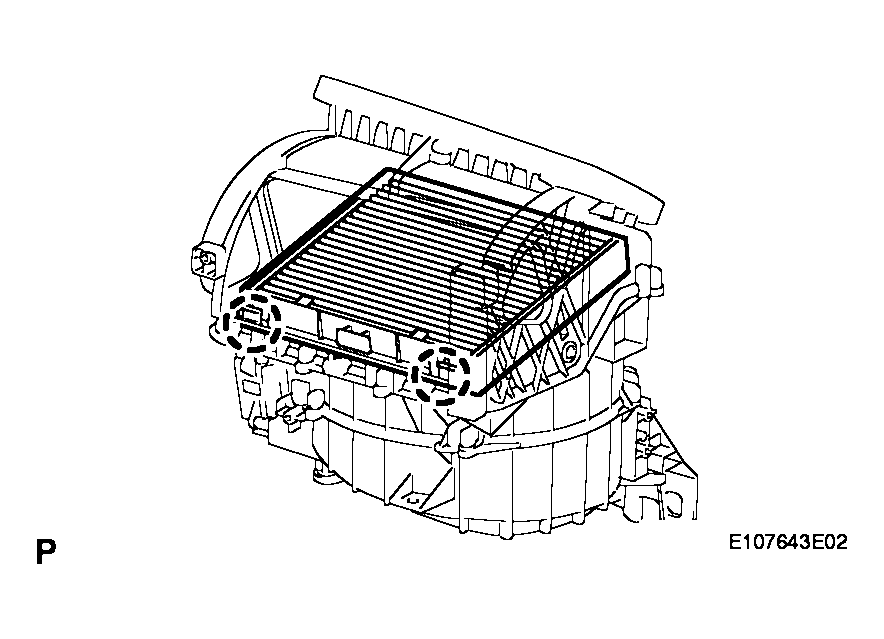

    Fig 2: Identifying Air Filter
    G04048453Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL INLET CONTROL SERVO MOTOR
    1. Install the inlet control servo motor with the 2 screws.

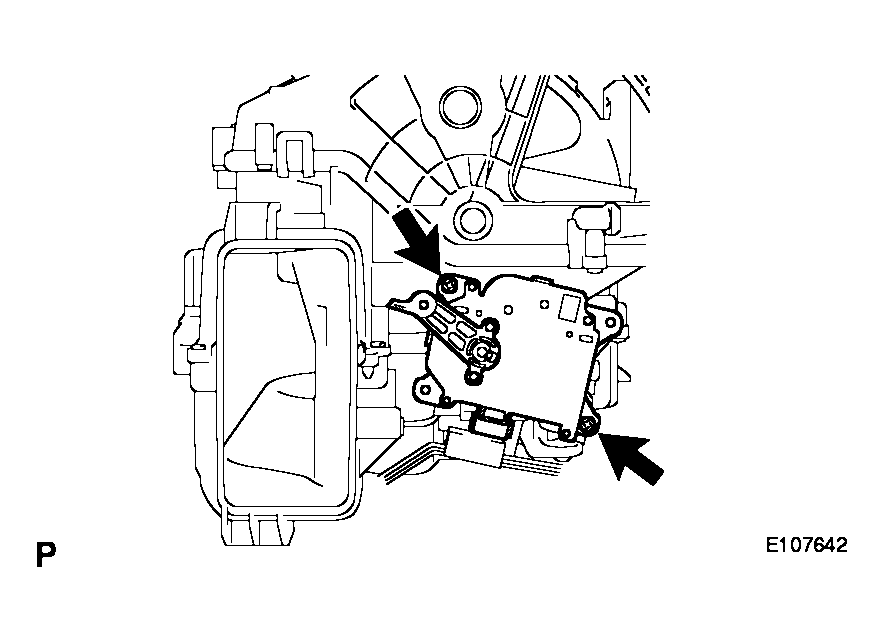

      Fig 3: Identifying Inlet Control Servo Motor And Screws
      G04048454Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Attach the claw and install the lever.

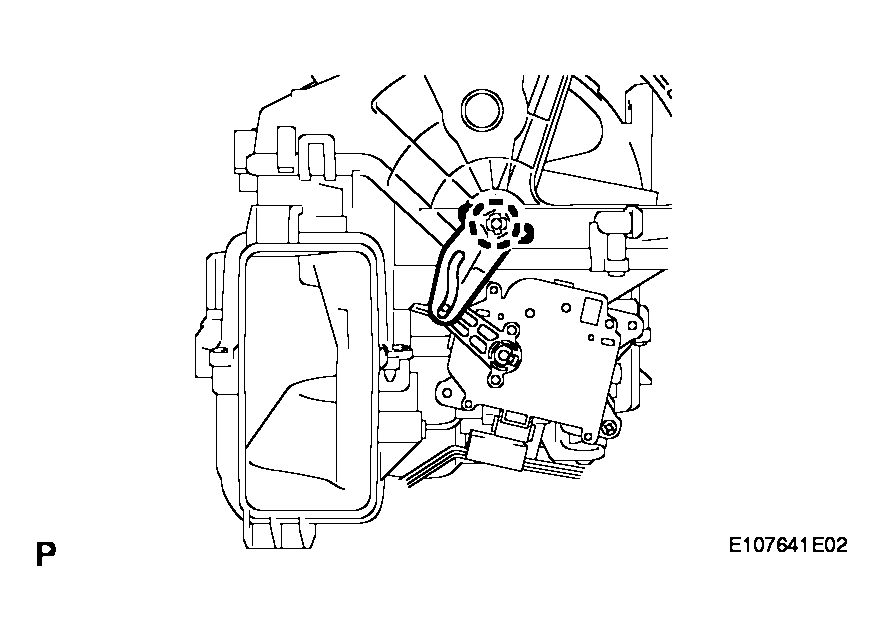

    Fig 4: Identifying Lever
    G04048455Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
