Blower Unit: Disassembly

  1. REMOVE INLET CONTROL SERVO MOTOR
    1. Detach the claw and remove the lever.

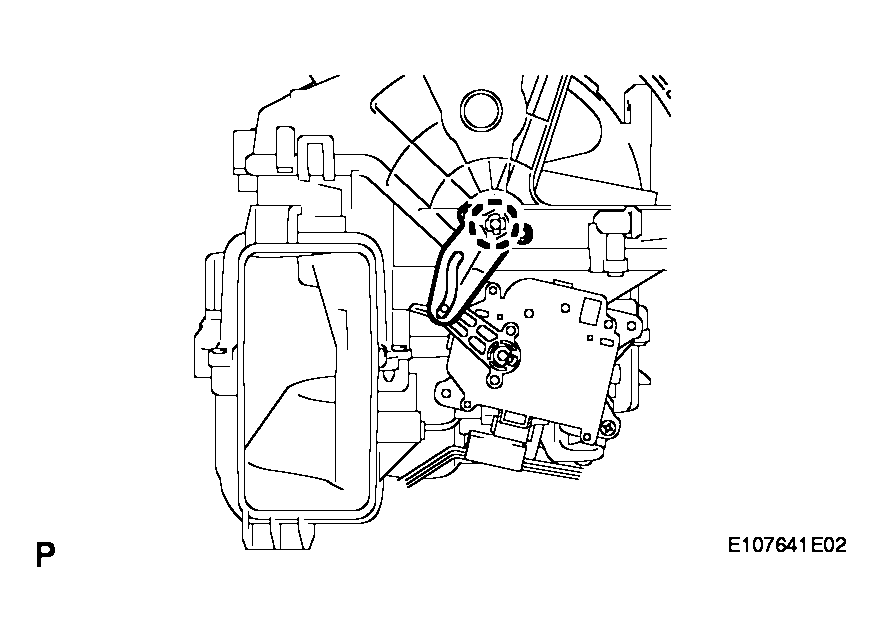

      Fig 1: Detaching Claw And Lever
      G04048448Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 screws and inlet control servo motor.

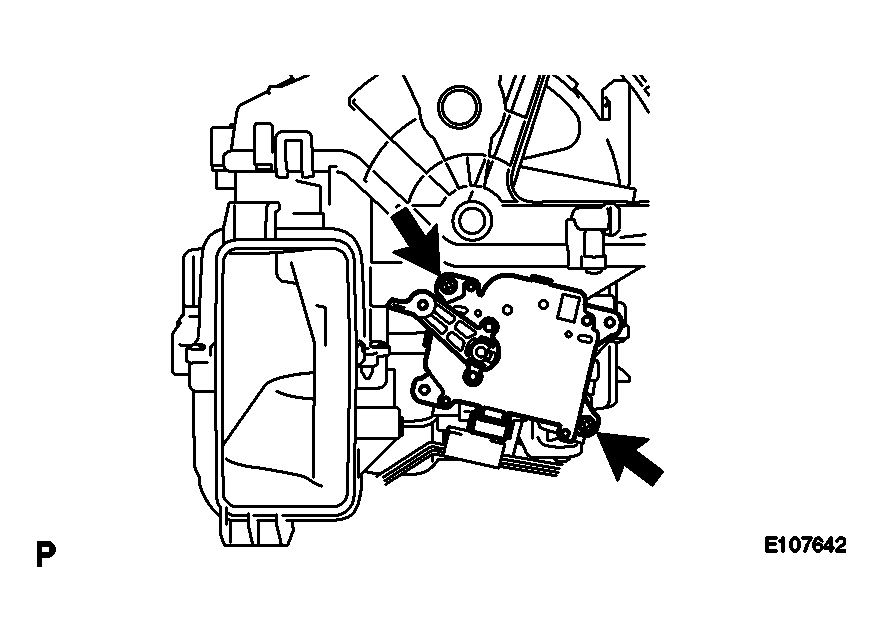

    Fig 2: Identifying Screws And Inlet Control Servo Motor
    G04048449Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE CLEAN AIR FILTER
    1. Detach the 2 claws and remove the air filter.

      HINT:

      Be sure to turn the engine switch on (IG) and set the A/C to RECIRCULATION mode before removing the air filter.

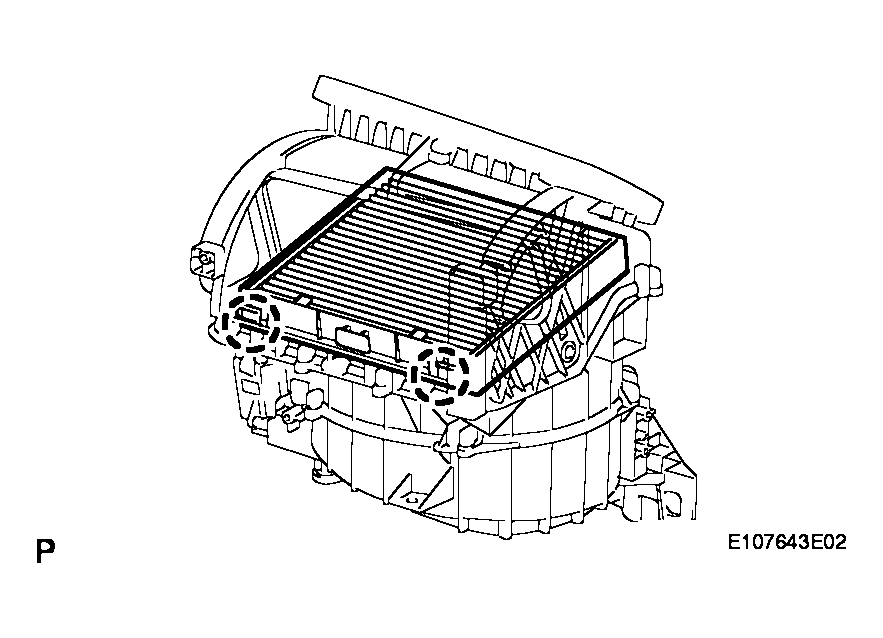

    Fig 3: Identifying Air Filter
    G04048450Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE COOLING UNIT WITH FAN MOTOR SUBASSEMBLY
    1. Remove the 3 screws and fan motor.

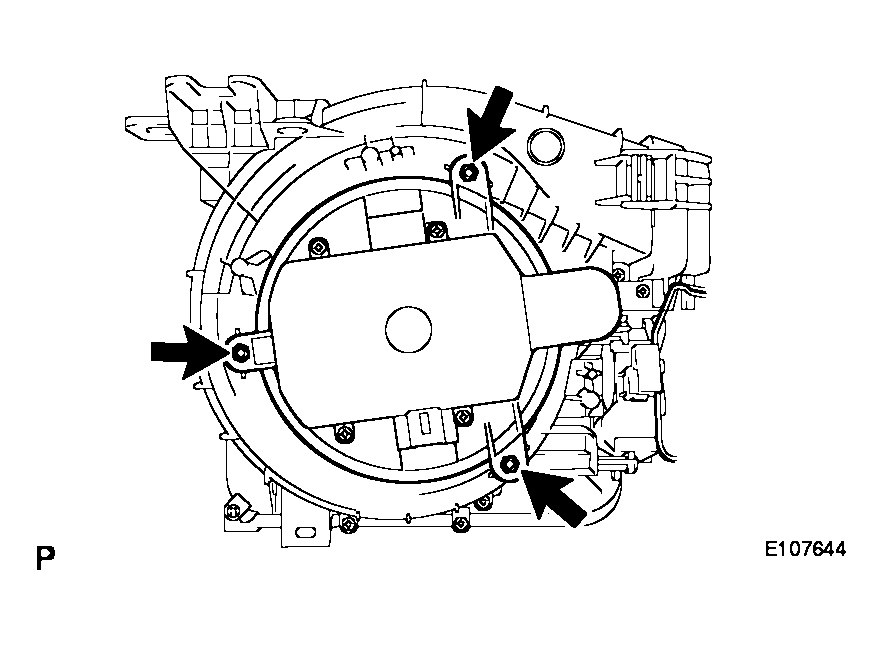

    Fig 4: Identifying Screws And Fan Motor
    G04048451Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
