Front Drive Shaft Assembly: Components

WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

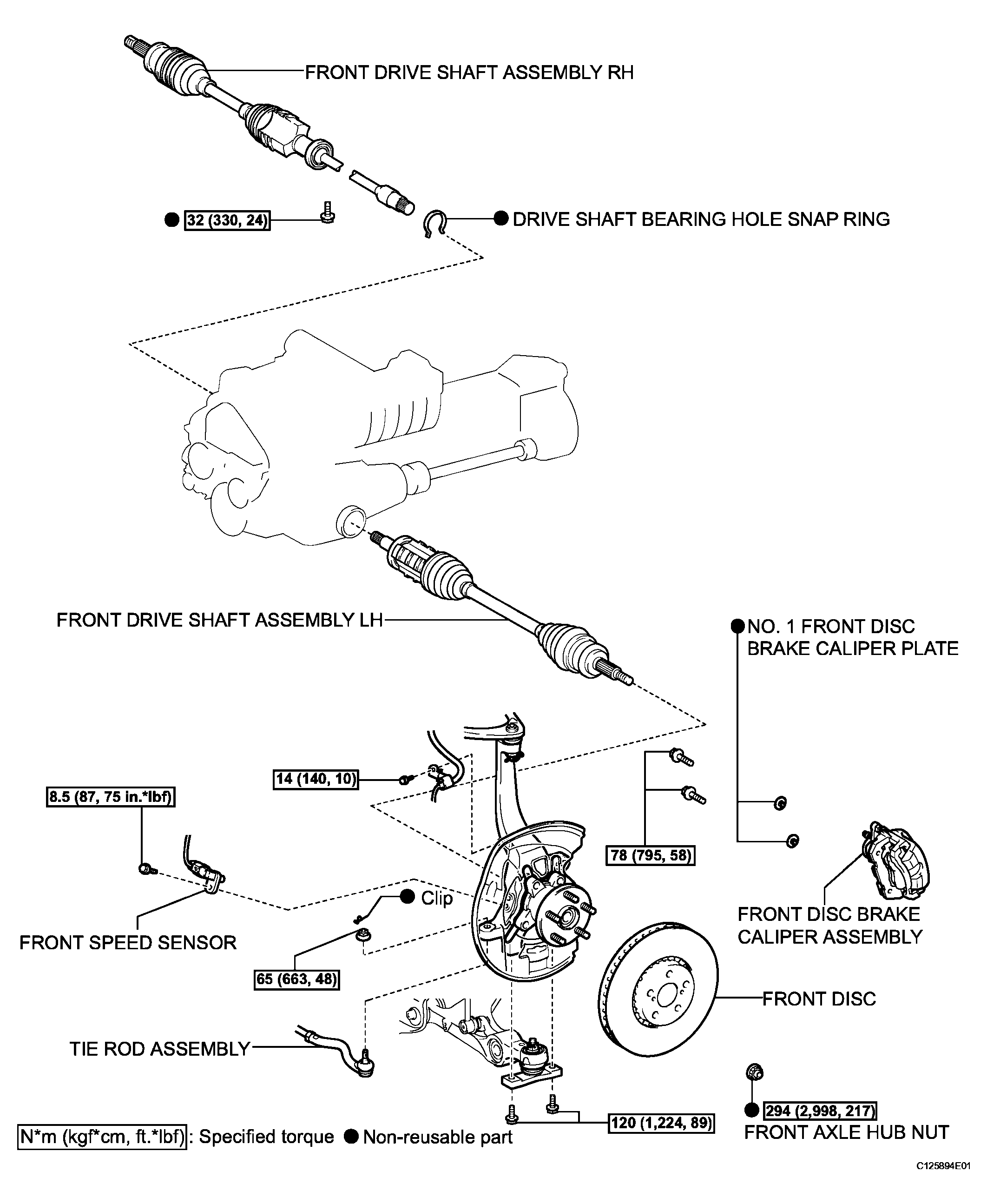

Fig 1: Front Drive Shaft Assembly Replacement Components (1 Of 3) With Torque Specifications
G04046922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

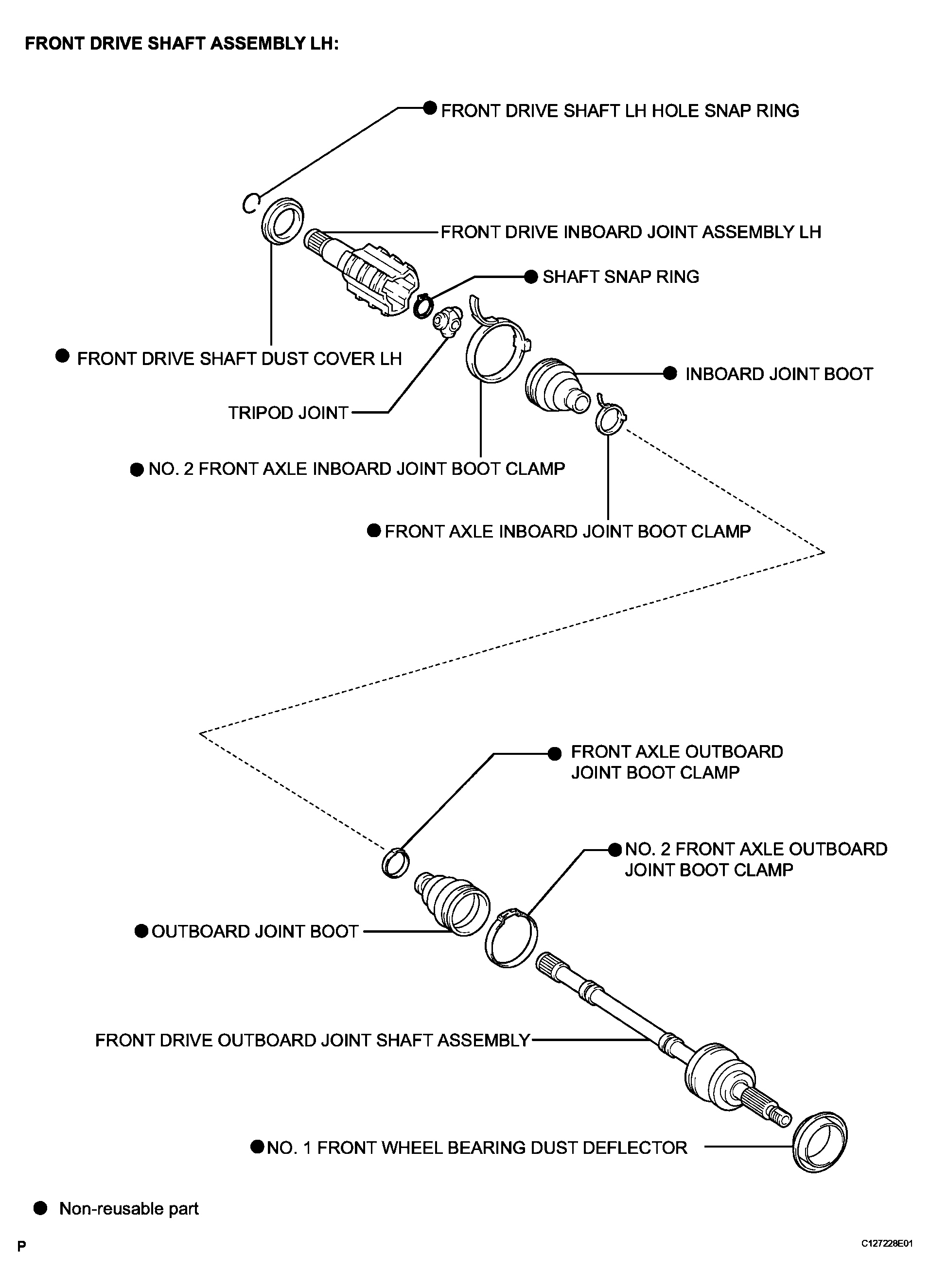

Fig 2: Identifying Front Drive Shaft Assembly Components (2 Of 3)
G04046923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

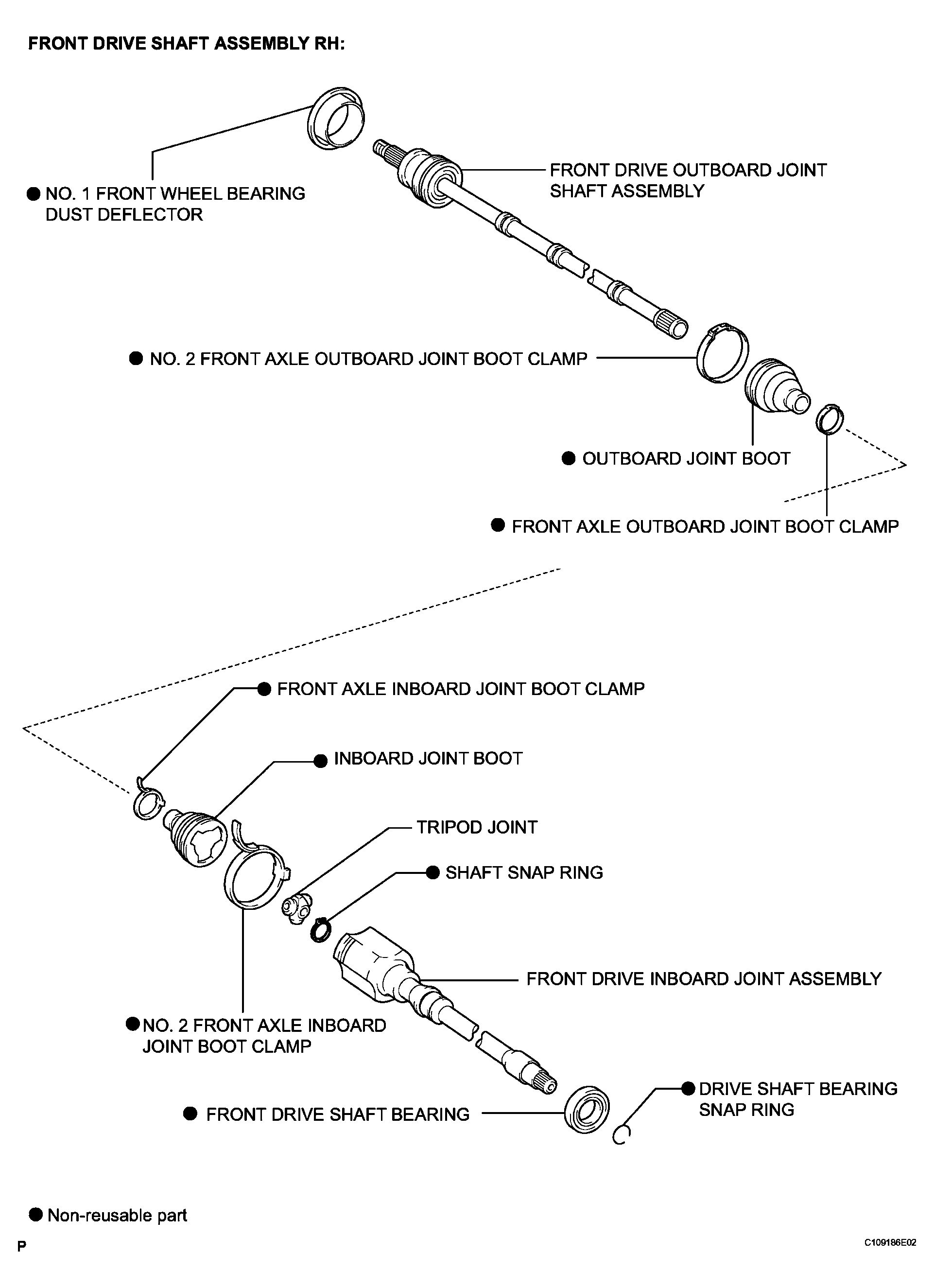

Fig 3: Identifying Front Drive Shaft Assembly Components (3 Of 3)
G04046924Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
