Rear Axle Hub Bolt: Replacement

WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE REAR WHEEL
  2. SEPARATE REAR DISC BRAKE CALIPER ASSEMBLY (See Step 7 in  REMOVAL  )
  3. REMOVE REAR DISC (See Step 9 in  DISASSEMBLY  )
  4. REMOVE REAR AXLE HUB BOLT
    1. Using SST, remove the rear axle hub bolt.

    SST 09628-10011

    NOTE: Do not damage the threads of the hub bolt.

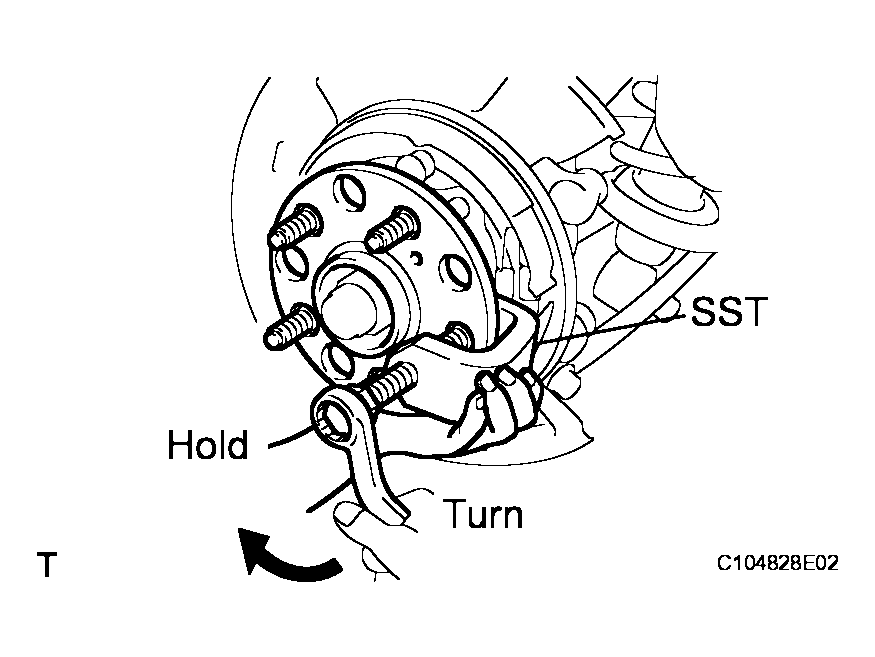

    Fig 1: Removing Rear Axle Hub Bolt Using SST
    G04047239Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSTALL REAR AXLE HUB BOLT
    1. Install a washer and nut to a new bolt as shown in Fig 2 .
    2. Using a screwdriver or equivalent to hold the rear axle hub, install the rear axle hub bolt by tightening the nut.
    NOTE: Do not damage the threads of the hub bolt.
  6. INSTALL REAR DISC (See  REASSEMBLY  )
  7. ADJUST PARKING BRAKE SHOE CLEARANCE (See  ADJUSTMENT  )
  8. INSTALL REAR WHEEL

Torque: 103 N*m (1,050 kgf*cm, 76 ft.*lbf)

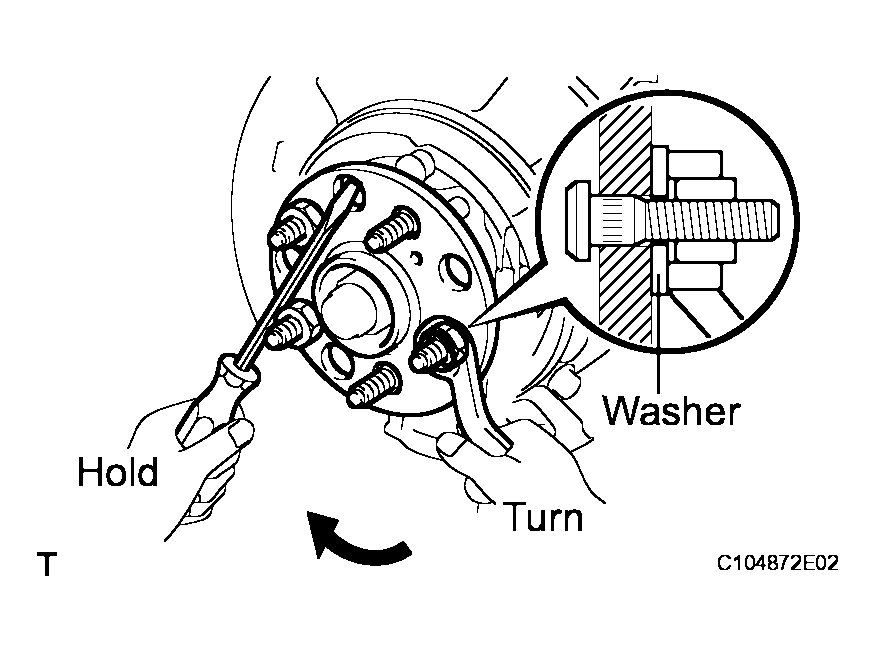

Fig 2: Installing Washer & Nut To Bolt
G04047240Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
