Parts Location

WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

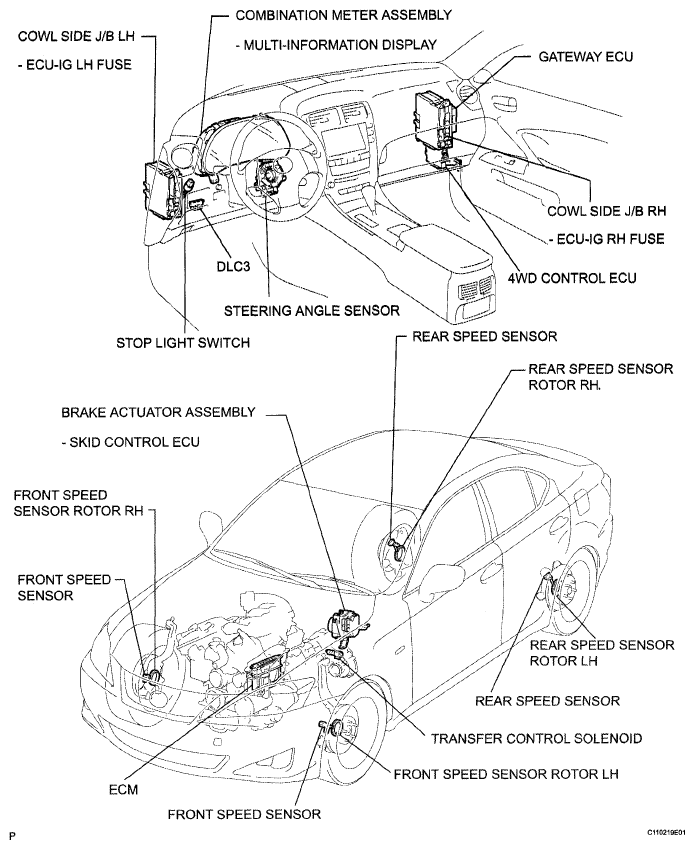

Fig 1: Identifying Four Wheel Drive Control System Parts Location
G05318620Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
