System Diagram

WARNING: This page is about a different car, the 2007 Lexus IS 250. However, it is still accessible from the selected car via links, so may be relevant.

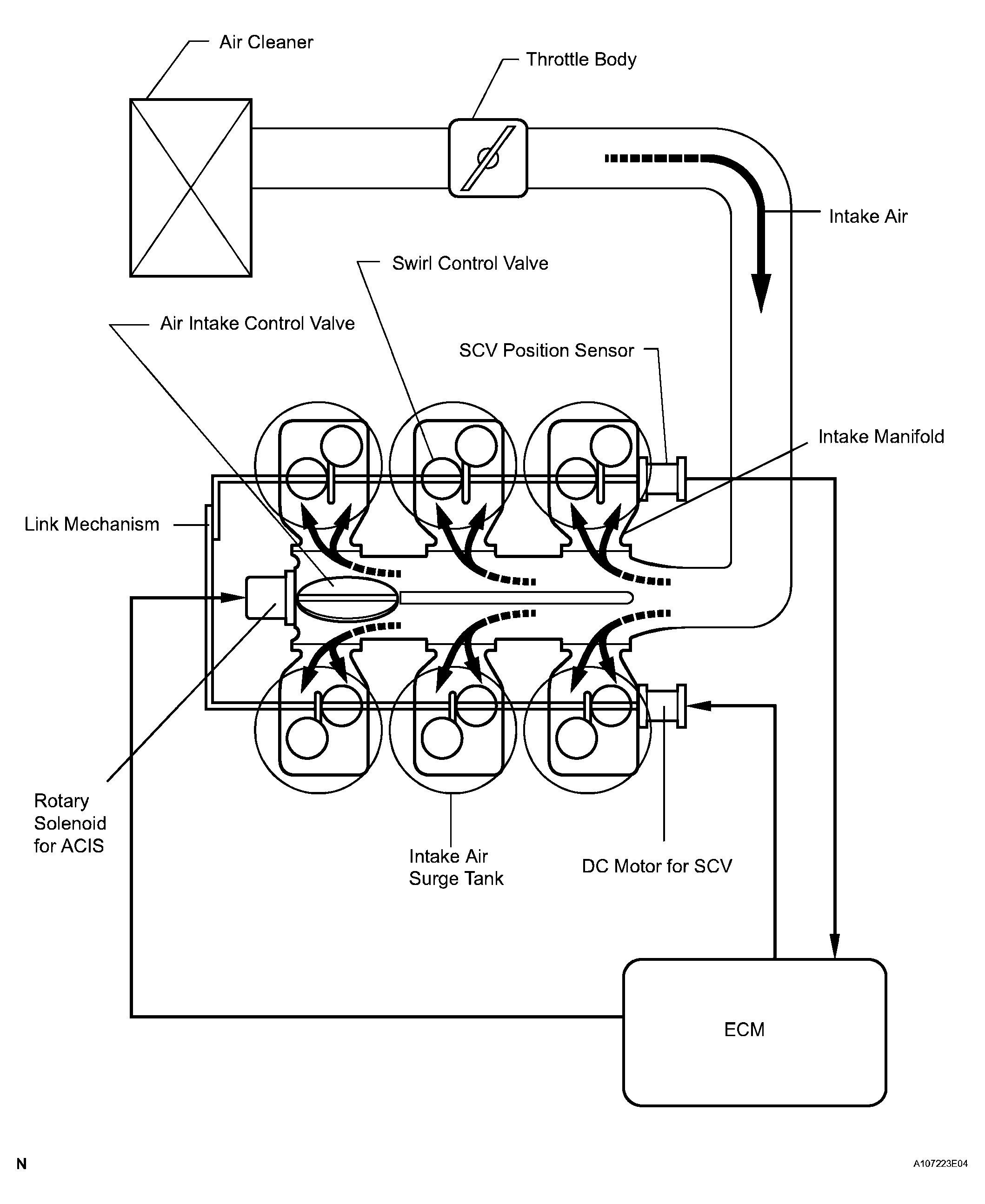

  1. INTAKE CONTROL SYSTEM VALVE DIAGRAM
    Fig 1: Identifying Intake Control System Valve Diagram
    G04044752Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

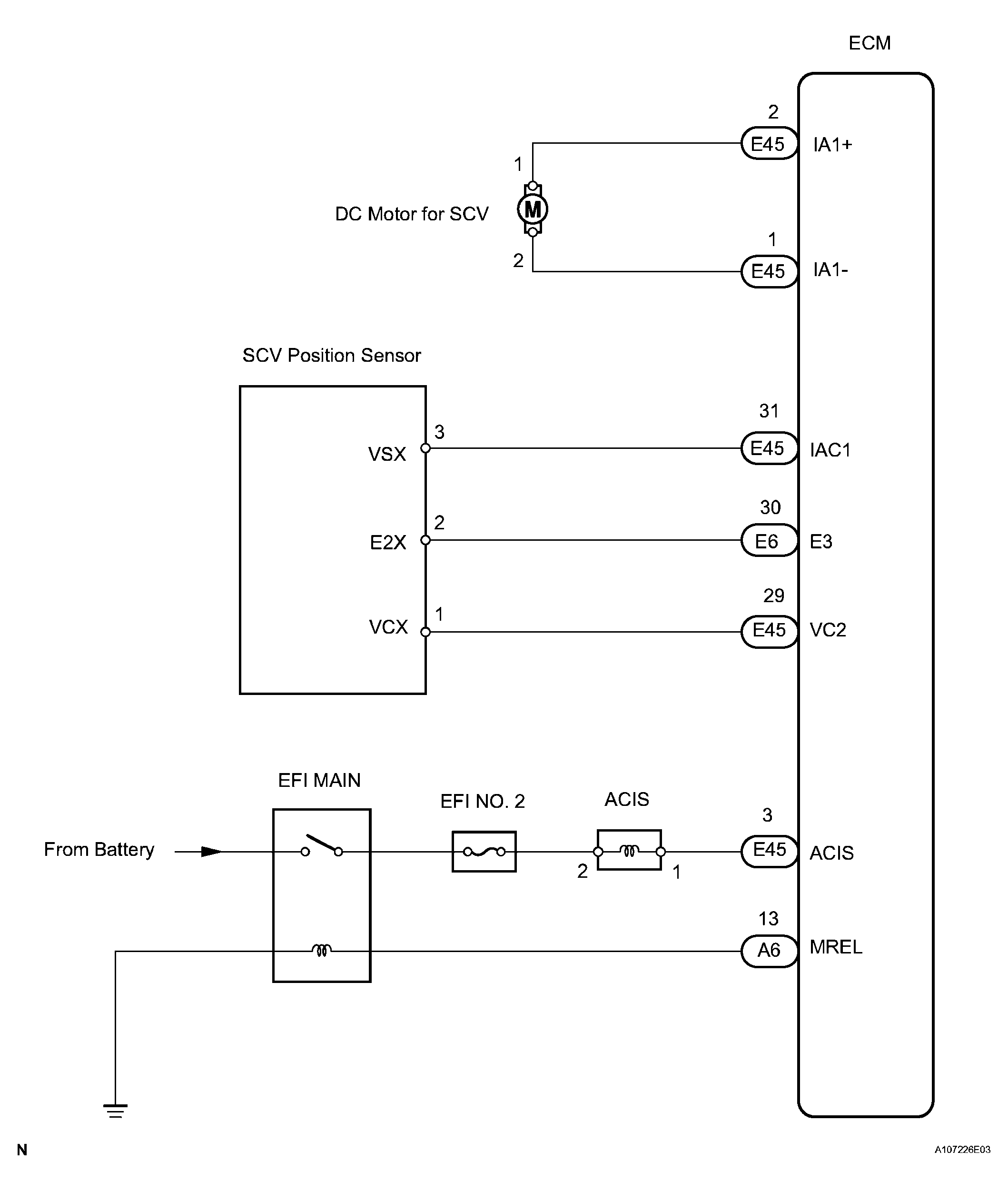

  2. ELECTRICAL WIRING DIAGRAM
Fig 2: Identifying Electrical Wiring Diagram
G04044753Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
