Parts Location

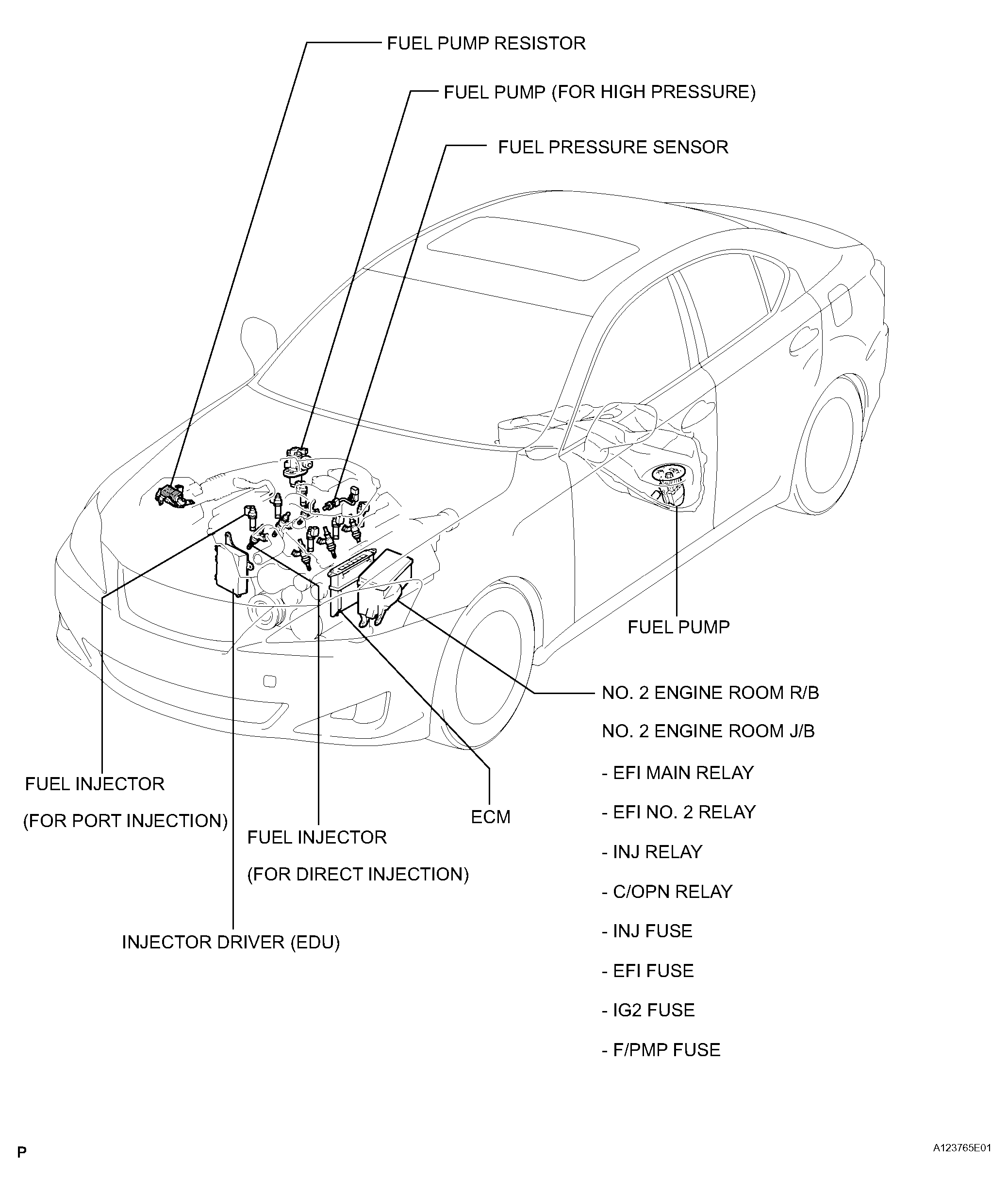

Fig 1: Identifying Fuel System Parts Location

G04056373

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
