Fuel Pump Resistor: Installation

INSTALL FUEL PUMP RESISTOR
1. Install the fuel pump resistor with the bolt.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Install the ground wires with the 2 bolts.
  Torque: 8.0 N*m (80 kgf*cm, 69 in.*lbf)
3. Connect the connector with the clamp.
INSTALL ENGINE ROOM SIDE COVER RH (See INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See INSTALLATION )

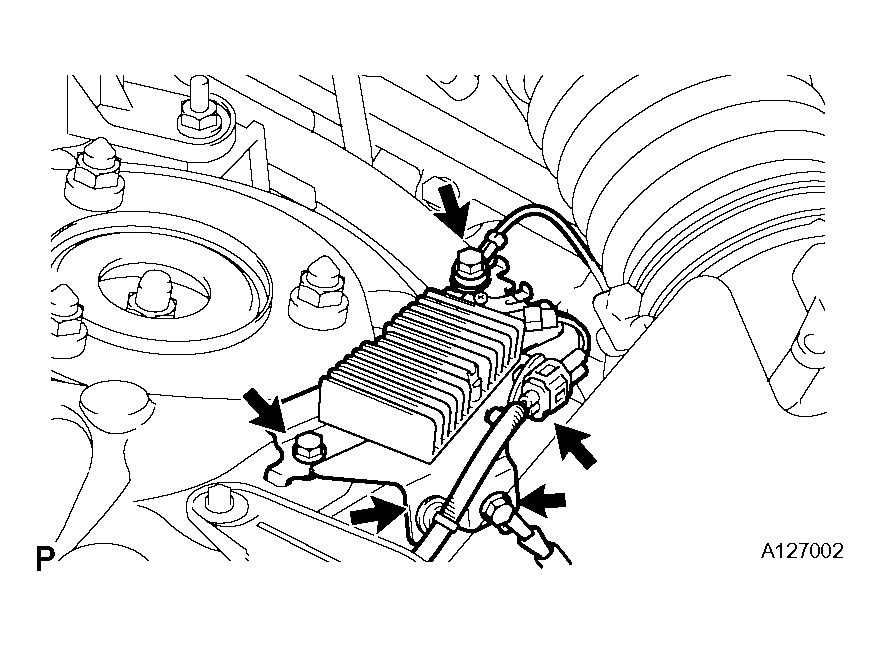

Fig 1: Identifying Fuel Pump Resistor With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
