Fuel Pressure Sensor: Removal

  1. REMOVE COOL AIR INTAKE DUCT SEAL (See  REMOVAL  )
  2. REMOVE ENGINE ROOM SIDE COVER LH (See  REMOVAL  )
  3. REMOVE ENGINE ROOM SIDE COVER RH (See  REMOVAL  )
  4. REMOVE V-BANK COVER SUB-ASSEMBLY (See  REMOVAL  )
  5. REMOVE FRONT UPPER FENDER PROTECTOR LH (See  REMOVAL  )
  6. REMOVE FRONT UPPER FENDER PROTECTOR RH

    HINT:

    Removal procedure of the RH side is the same as that of the LH side.

  7. REMOVE ROOF DRIP SIDE FINISH MOULDING LH (See  REMOVAL  )
  8. REMOVE ROOF DRIP SIDE FINISH MOULDING RH

    HINT:

    Removal procedure of the RH side is the same as that of the LH side.

  9. REMOVE FRONT WIPER ARM HEAD CAP (See  REMOVAL  )
  10. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY LH (See  REMOVAL  )
  11. REMOVE FRONT WIPER ARM AND BLADE ASSEMBLY RH (See  REMOVAL  )
  12. REMOVE COWL TOP VENTILATOR LOUVER SUBASSEMBLY (See  INSTALLATION  )
  13. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL
  14. DISCHARGE FUEL SYSTEM PRESSURE

    HINT:

    See FUEL SYSTEM  .

  15. DRAIN ENGINE COOLANT (See  COOLANT  )
  16. DISCONNECT NO. 2 VENTILATION HOSE (See  REMOVAL  )
  17. REMOVE AIR CLEANER CAP WITH AIR CLEANER HOSE ASSEMBLY (See  REMOVAL  )
  18. REMOVE THROTTLE WITH MOTOR BODY ASSEMBLY (See  REMOVAL  )
  19. REMOVE INTAKE AIR SURGE TANK (See  REMOVAL   )
  20. REMOVE INTAKE MANIFOLD (See  REMOVAL   )
  21. DISCONNECT WATER HOSE JOINT (See  REMOVAL   )
  22. REMOVE NO. 1 FUEL PIPE (See  REMOVAL   )
  23. REMOVE FUEL PRESSURE SENSOR
    1. Disconnect the connector and clamp.
    2. Remove the fuel pressure sensor and gasket.

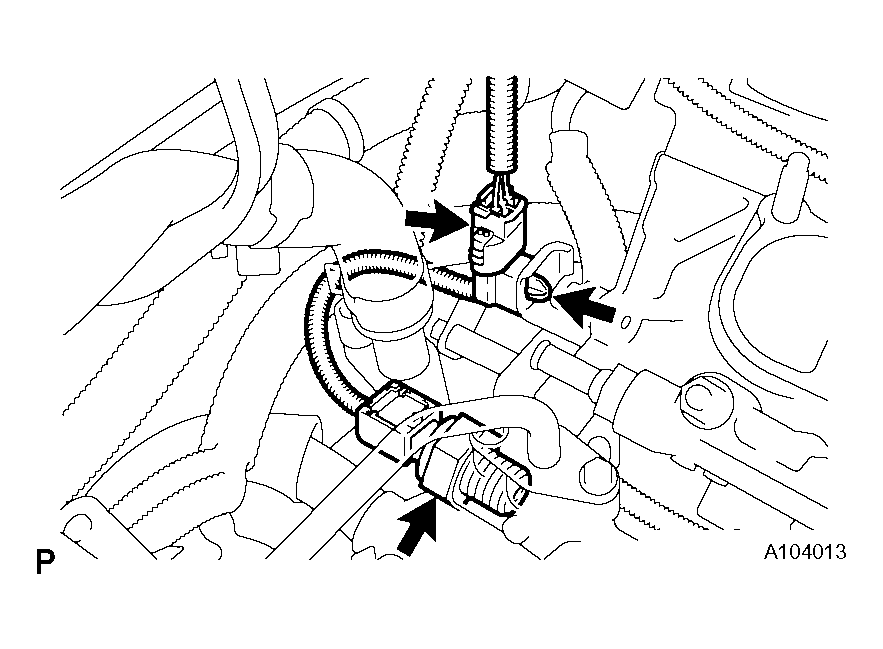

      Fig 1: Identifying Fuel Pressure Sensor
      G04056478Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
