Engine Switch: Removal
- REMOVE SHIFT LEVER KNOB SUB-ASSEMBLY (See REMOVAL
)
- REMOVE UPPER NO. 1 CONSOLE PANEL GARNISH (See REMOVAL
)
- REMOVE UPPER NO. 2 CONSOLE PANEL GARNISH (See REMOVAL
)
- REMOVE CONSOLE PANEL SUB-ASSEMBLY (See REMOVAL
)
- REMOVE FRONT ASH RECEPTACLE SUBASSEMBLY (See REMOVAL
)
- REMOVE CONSOLE BOX REGISTER ASSEMBLY (See REMOVAL
)
- REMOVE CONSOLE BOX (See REMOVAL
)
- REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY (See REMOVAL
)
- REMOVE CENTER LOWER INSTRUMENT CLUSTER FINISH PANEL (See REMOVAL
)
- REMOVE INTEGRATION CONTROL PANEL WITH RADIO RECEIVER ASSEMBLY (w/o Navigation System) (See REMOVAL
)
- REMOVE MULTI-DISPLAY WITH RADIO RECEIVER ASSEMBLY (w/ Navigation System) (See REMOVAL
)
- REMOVE ENGINE SWITCH

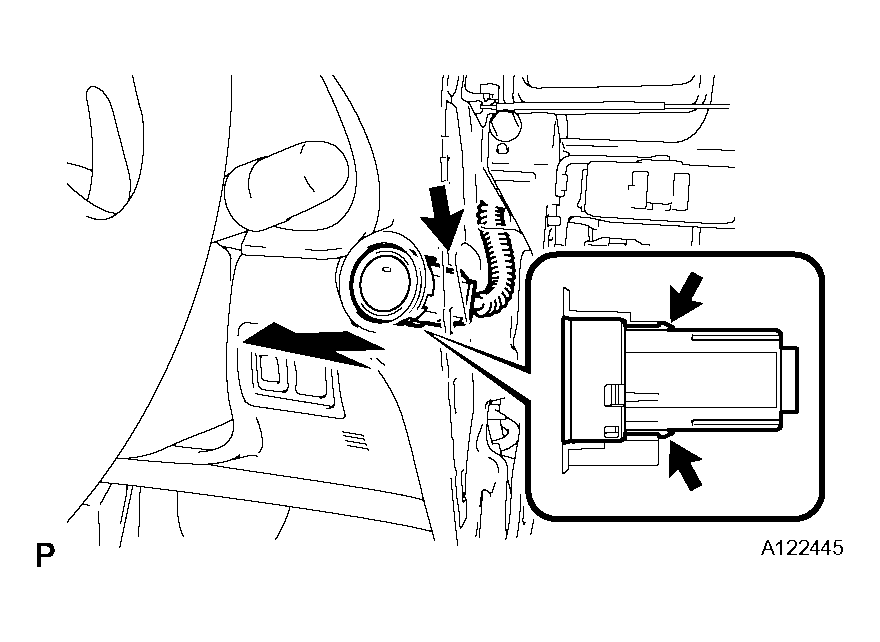

- Disconnect the switch connector.
- Detach the 2 claws and remove the switch.
