Home >> Lexus >> 2007 >> IS 350 >> Repair and Diagnosis >> Electrical >> Horns >> Horn >> High Pitched Horn >> Components

High Pitched Horn: Components

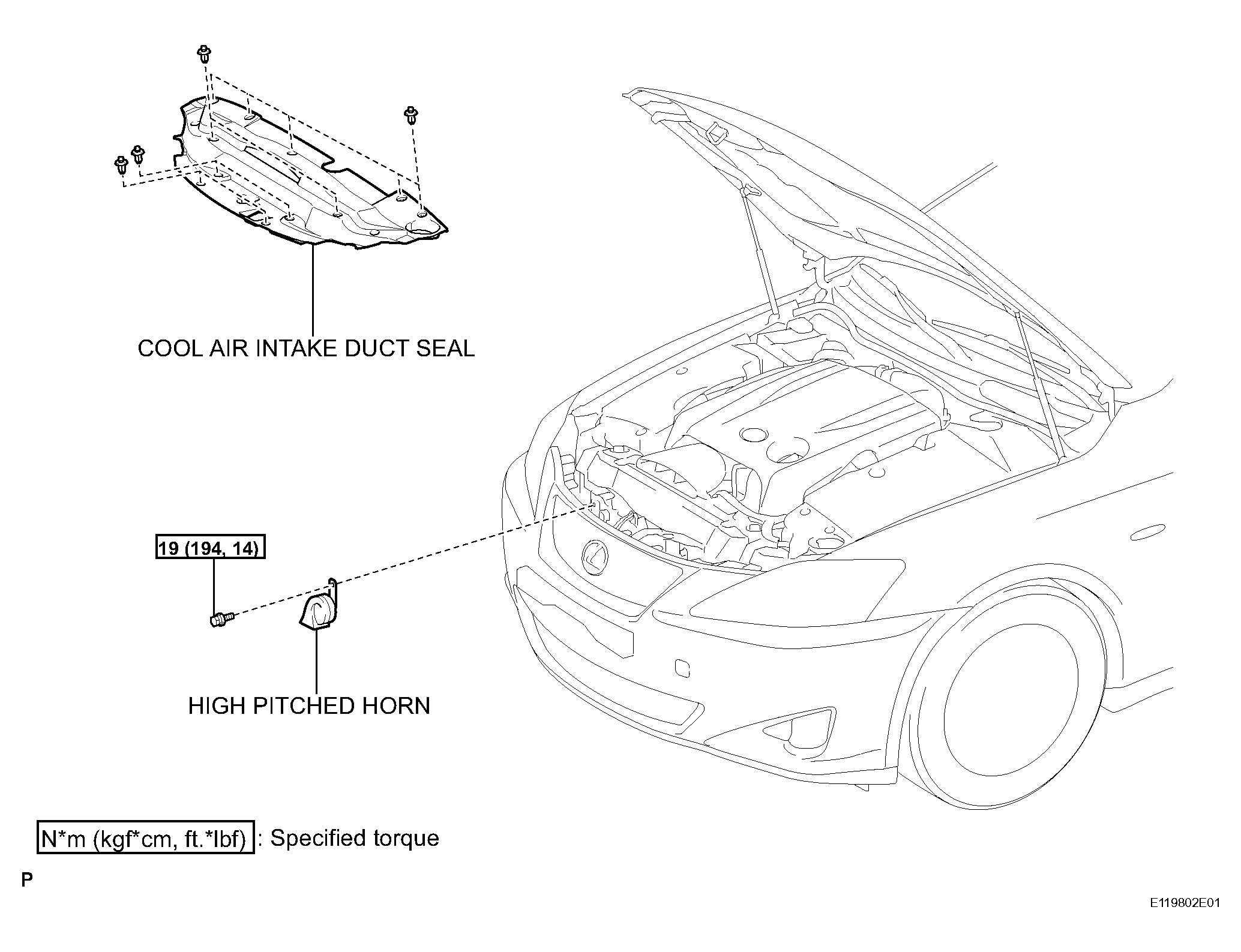

Fig 1: High Pitched Horn Replacement Components With Torque Specifications

G04050651

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
