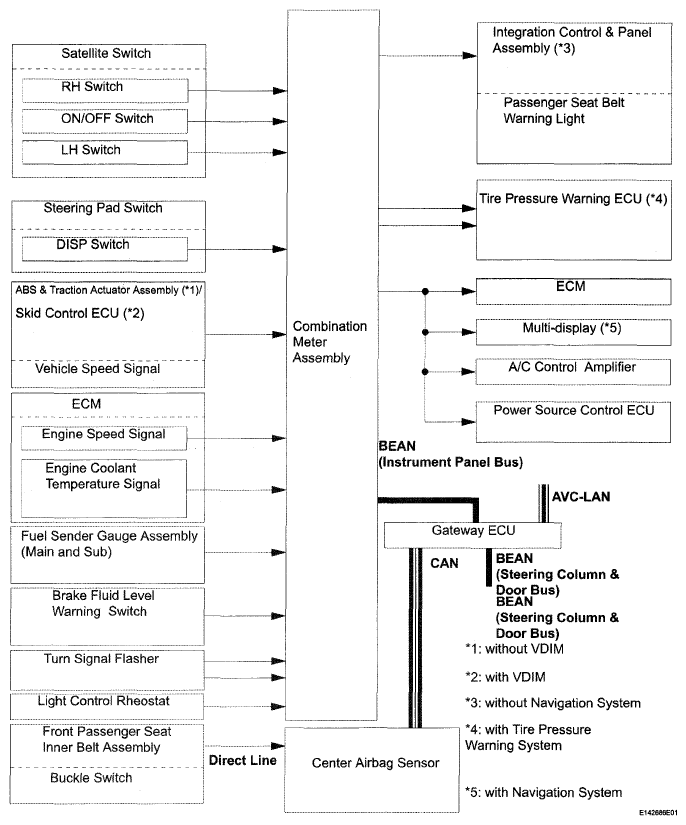

| Combination Meter |
Power Source Control ECU |
Light control rheostat position signal |
Direct Line |
| Combination Meter |
|
Vehicle specification signal |
- BEAN (Steering Column & Door Bus)
- CAN-BEAN
|
| Combination Meter |
- Gateway ECU
- AFS ECU()
- Clearance Sonar ECU ()
- Main Body ECU RH (Cowl Side J/B RH)
- ABS & Traction Actuator Assembly
|
Satellite switch signal |
- BEAN (Instrument Panel Bus)
- BEAN (Steering Column & Door Bus)
- CAN-BEAN
|
| Combination Meter |
- Center Airbag Sensor Assembly
- ECM
- Sliding Roof Control ECU ()
- Certification ECU
- Seat Belt Control ECU
- Tilt and Telescopic ECU ()
- Power Source Control ECU
- Main Body ECU LH/ RH (Cowl Side J/B LH/ RH)
- A/C Control Amplifier
- AFS ECU()
- Tire Pressure Warning ECU ()
- Clearance Sonar ECU ()
|
Vehicle speed signal |
- BEAN (Instrument Panel Bus)
- BEAN (Steering Column & Door Bus)
- CAN-BEAN
|
| A/C Control Amplifier |
Combination Meter |
Outside temperature signal |
BEAN (Instrument Panel Bus) |
| Clearance Sonar ECU () |
Combination Meter |
- Clearance sonar indicator light signal
- Area signals (FR/FL/RR/RL/Rear center)
|
BEAN (Instrument Panel Bus) |
| Tire Pressure Warning ECU () |
Combination Meter |
Tire Pressure warning signal |
BEAN (Instrument Panel Bus) |
| AFS ECU() |
Combination Meter |
- AFS OFF indicator light signal
- AFS warning signal
|
BEAN (Instrument Panel Bus) |
| Main Body ECU RH (Cowl Side J/B RH) |
Combination Meter |
- Front passenger door courtesy light switch signal
- Door lock detection switch signal
|
BEAN (Steering Column & Door Bus) |
| Sliding Roof Control ECU () |
Combination Meter |
Sliding roof signal |
BEAN (Steering Column & Door Bus) |
| Power Source Control ECU |
Combination Meter |
Charge indicator light signal |
BEAN (Steering Column & Door Bus) |
| ECM |
Combination Meter |
- Fuel injection signal
- Engine coolant temperature signal
- A/T gear position signal
- A/T shift position signal
- Diagnosis signal
- Dynamic radar cruise control signal ()
- Check engine indicator light signal
- Vehicle specification signal
|
CAN |
- Engine revolution signal
- Check engine indicator light signal
|
Direct Line |
| ABS & Traction Actuator Assembly ()/Skid Control ECU () |
Combination Meter |
VSC/SLIP/ABS/BRAKE indicator light signal |
CAN-BEAN |
| Vehicle speed signal |
Direct Line |
| Seat Belt Control ECU |
Combination Meter |
PCS indicator light signal () |
CAN-BEAN |
| 4WD Control ECU () |
Combination Meter |
4WD system condition signal |
CAN-BEAN |
| Electronic Power Steering ECU |
Combination Meter |
EPS warning light signal |
CAN-BEAN |
| Center Airbag Sensor Assembly |
Combination Meter |
Airbag indicator light signal |
CAN-BEAN |
| Satellite Switch |
Combination Meter |
To select the modes for multi-display listed below.
- Clearance Sonar ()
- Tire pressure warning ()
- AFS()
- Pre-collision ()
- Speed/Tacho indicator signal
|
Direct Line |
| Steering Pad Switch (DISP) |
Combination Meter |
Multi-display operation signal |
Direct Line |
| Fuel Sender Gauge Assembly (Main/Sub) |
Combination Meter |
Fuel level signal |
Direct Line |
| Turn Signal Flasher |
Combination Meter |
Turn signal LH/RH signal |
Direct Line |
| Light Control Rheostat |
Combination Meter |
- Illumination signal
- Tail cancel signal
|
Direct Line |
| Brake Fluid Level Warning Switch |
Combination Meter |
Brake fluid level signal |
Direct Line |
| Combination Meter |
Tire Pressure Warning ECU () |
Tire pressure Initial/Select signal |
Direct Line |
| Combination Meter |
Integration Control & Panel Assembly ()/ Multi-display () |
Passenger seat belt warning light signal |
Direct Line |
