Home >> Lexus >> 2007 >> IS 350 >> Repair and Diagnosis >> Drivelines & Axles >> Wheel Hubs >> Axle >> Front Axle Hub Bolt >> Components

Front Axle Hub Bolt: Components

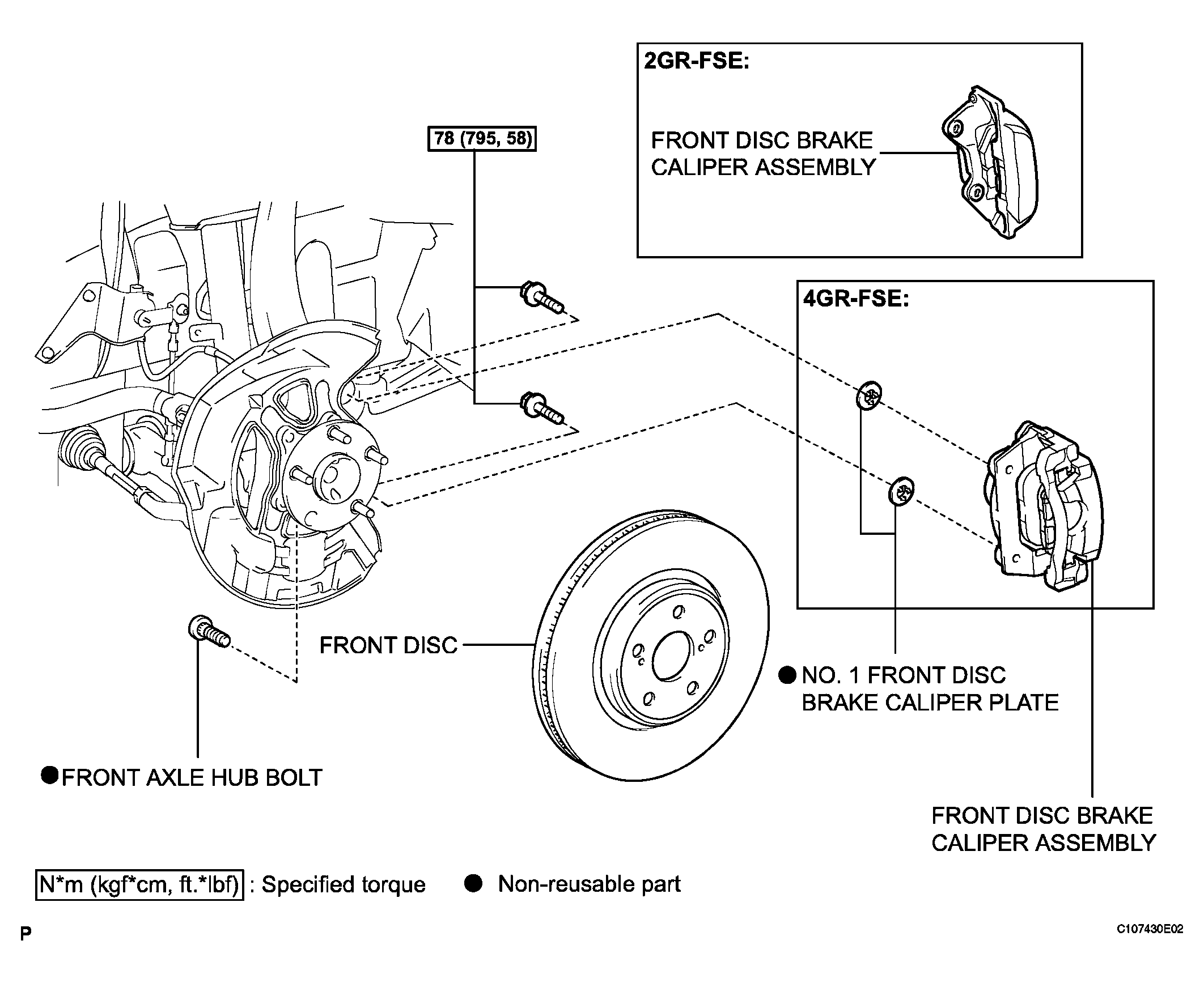

Fig 1: Front Axle Hub Bolt With Torque Specifications
G04053700Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
