Front Seatback Heater: Components

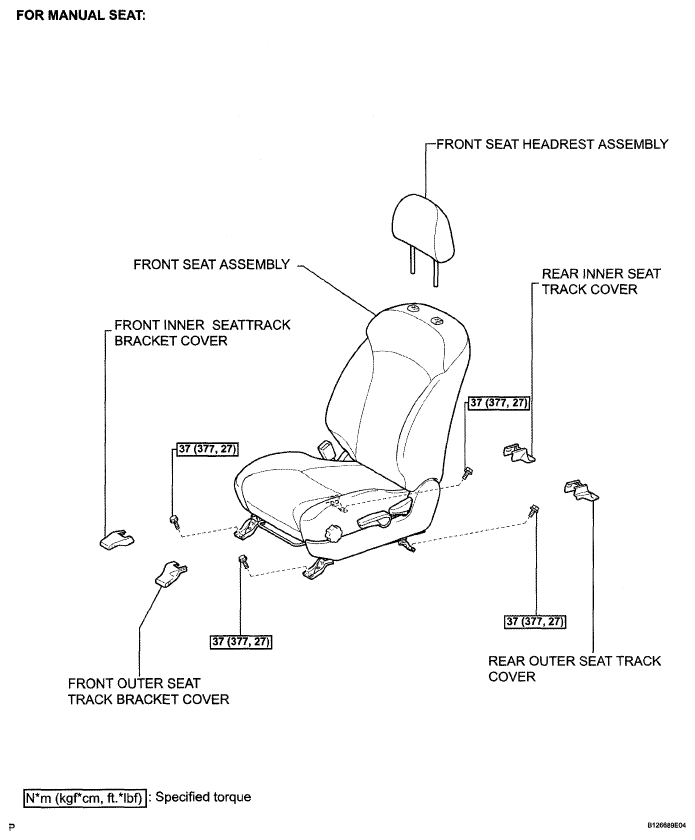

Fig 1: Front Seatback Heater Replacement Components With Torque Specifications (1 Of 5)
G05321117Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

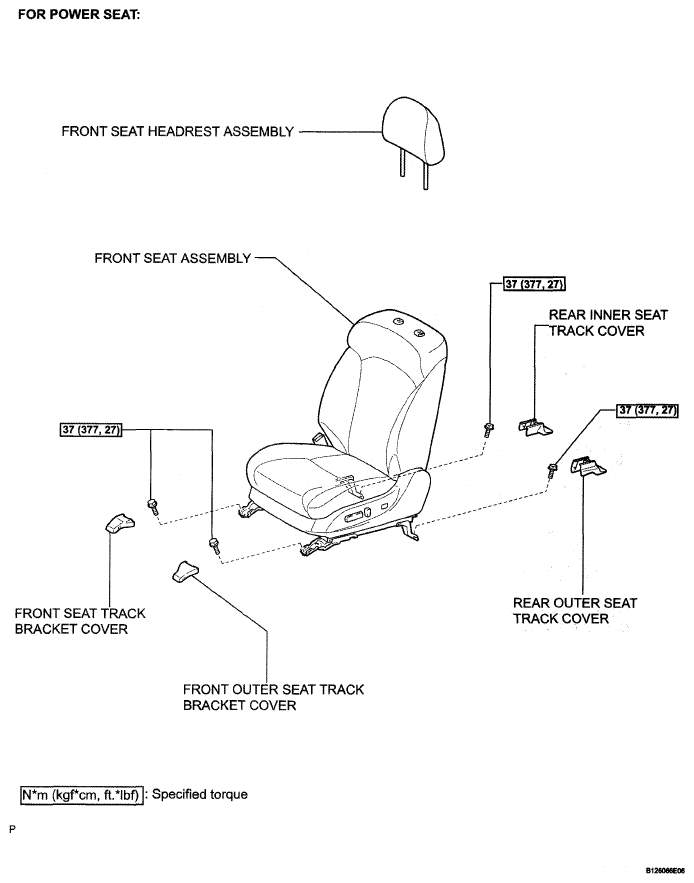

Fig 2: Front Seatback Heater Replacement Components With Torque Specifications (2 Of 5)
G05321118Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

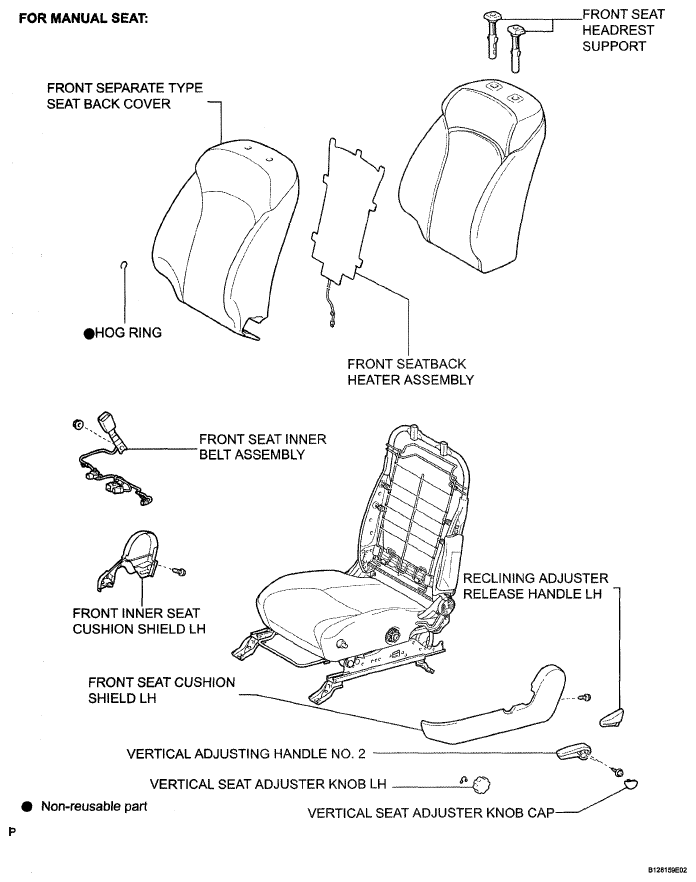

Fig 3: Identifying Front Seatback Heater Components (3 Of 5)
G05321119Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

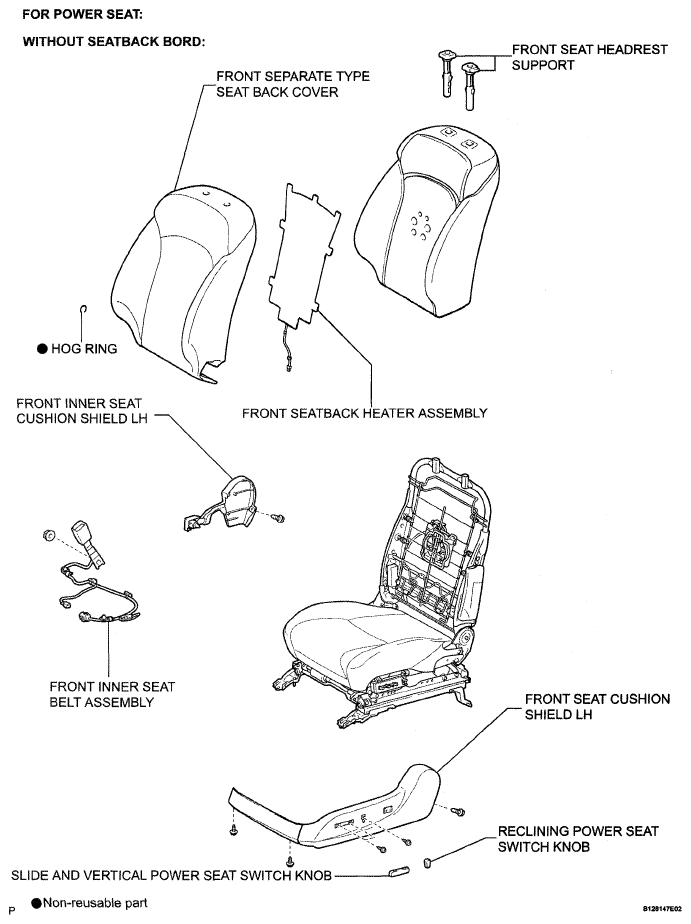

Fig 4: Identifying Front Seatback Heater Components (4 Of 5)
G05321120Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

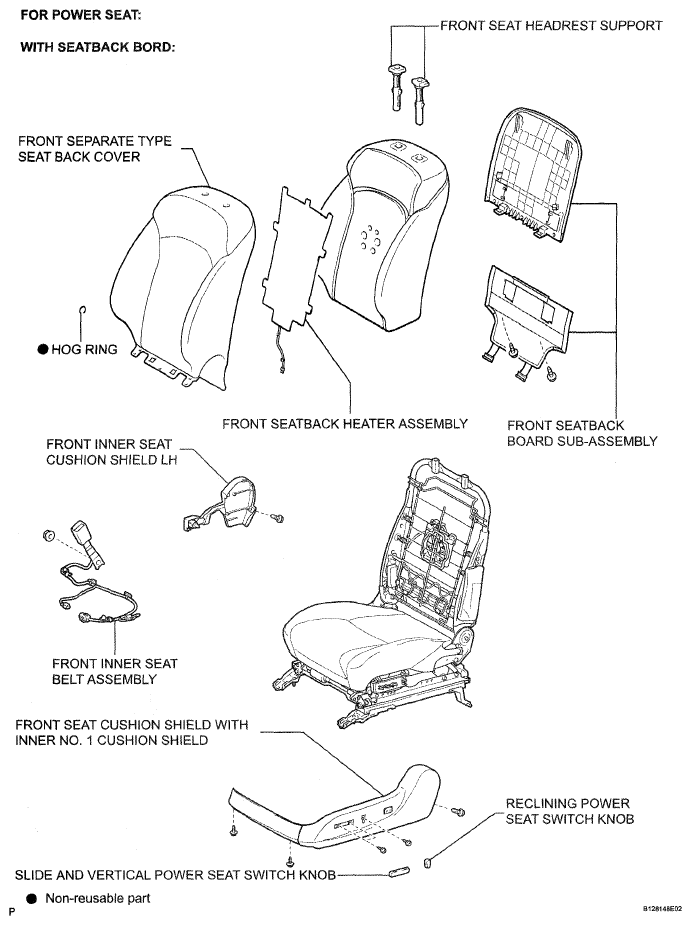

Fig 5: Identifying Front Seatback Heater Components (5 Of 5)
G05321121Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
