Rear Sunshade Assembly: Installation

INSTALL REAR SUNSHADE RELAY
NOTE: When reassembling the rear sunshade assembly, eliminate static electricity by touching the vehicle body to prevent the components from being damaged.
1. Install the rear sunshade relay with the 2 screws.
2. Connect the connector.

  Fig 1: Connecting Connector
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Engage the 4 claws and install the rear sunshade relay cover.
4. Install the screw.
Fig 2: Installing Rear Sunshade Relay Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR WINDOW SHADE ASSEMBLY
1. Install the rear window shade assembly, and temporarily tighten 4 bolts <A> and <B>.
2. Fully tighten the 5 bolts.
3. Connect the connector.

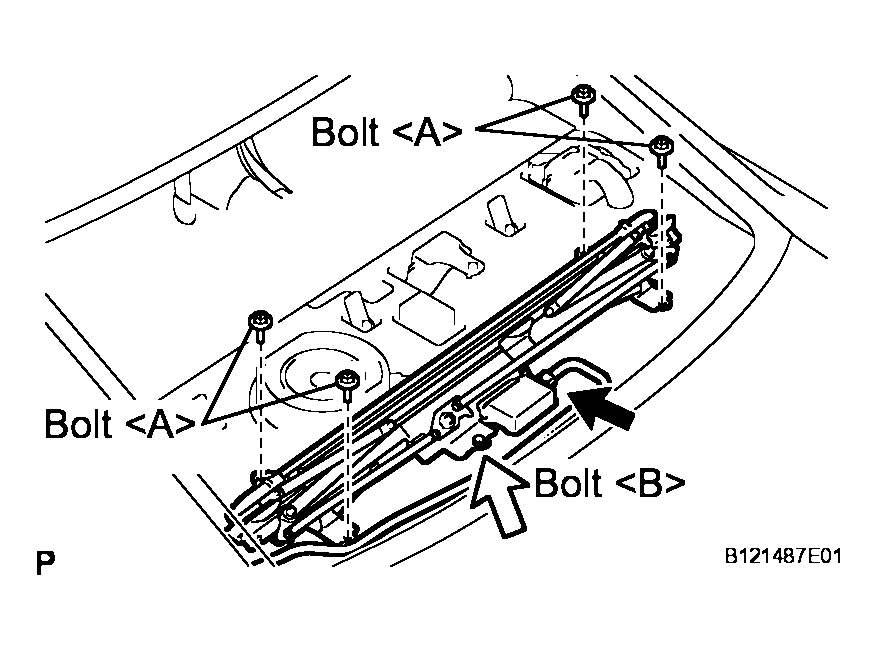

Fig 3: Installing Rear Window Shade Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY
1. Engage the 5 claws and 3 clips, and install the No. 2 package tray trim panel assembly.
INSTALL HIGH MOUNTED STOP LIGHT SET (See INSTALLATION )

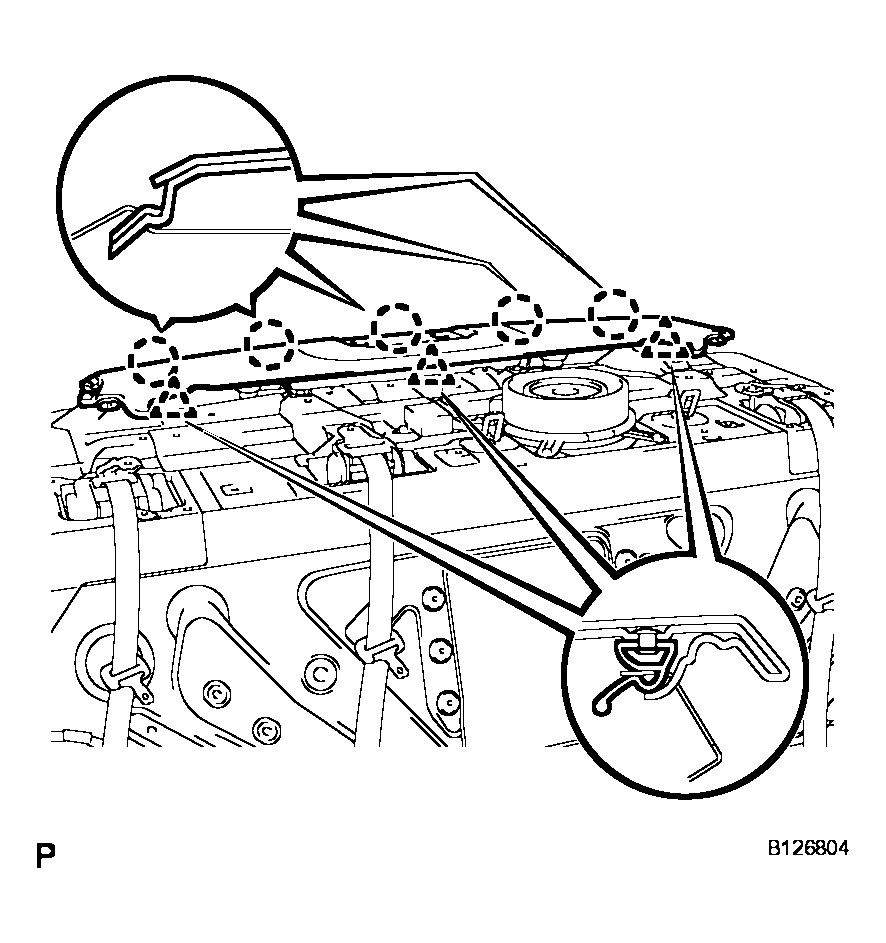

Fig 4: Installing No. 2 Package Tray Trim Panel Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY
1. Thread the 3 rear seat belt floor anchors into the package tray trim panel assembly.
2. Insert the rear end of the package tray trim panel assembly into the rear window shade assembly.
3. Engage the 3 clips and install the package tray trim panel assembly.

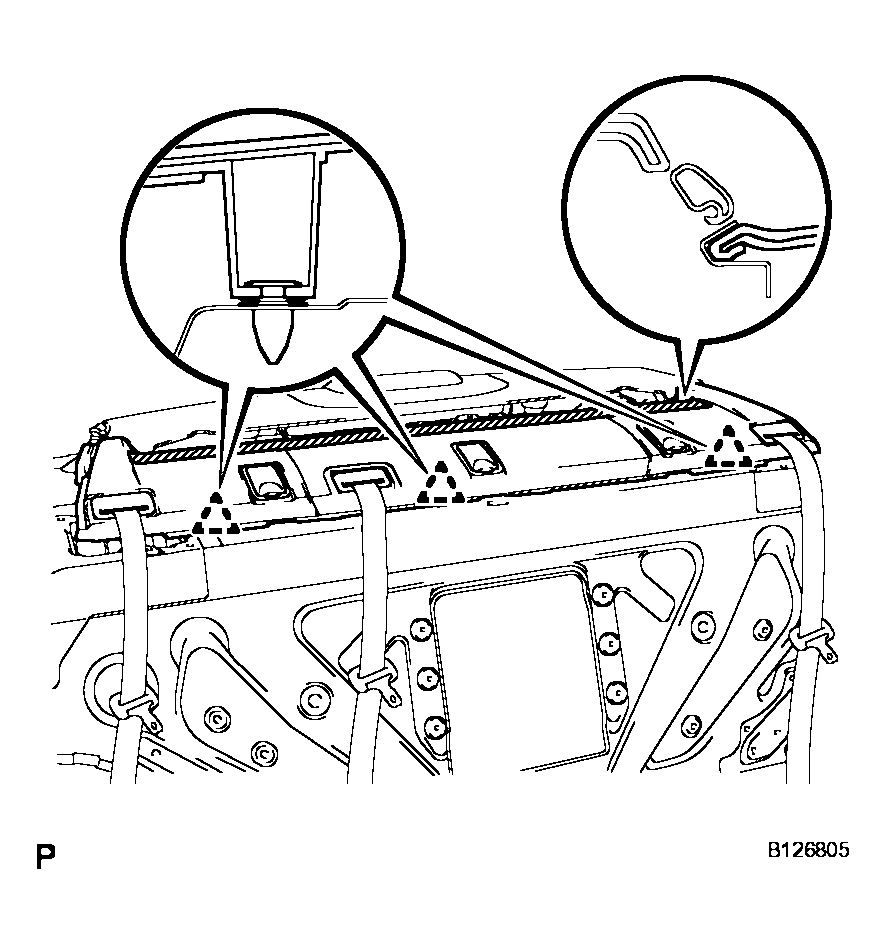

  Fig 5: Installing Package Tray Trim Panel Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Engage the 2 claws and install the rear seat shoulder belt cover.
  HINT:

  Use the same procedure for the other 2 rear seat shoulder belt covers.

  Fig 6: Installing Rear Seat Shoulder Belt Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Connect the floor side of the rear seat inner with center belt assembly RH with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not allow the anchor part of the rear seat inner with center belt assembly RH and the protruding parts of the floor panel to overlap.
6. Check if the ELR locks.
  NOTE: The check should be performed with the outer belt assembly installed.
  1. With the belt assembly installed, check that the belt locks when the belt is pulled out quickly.

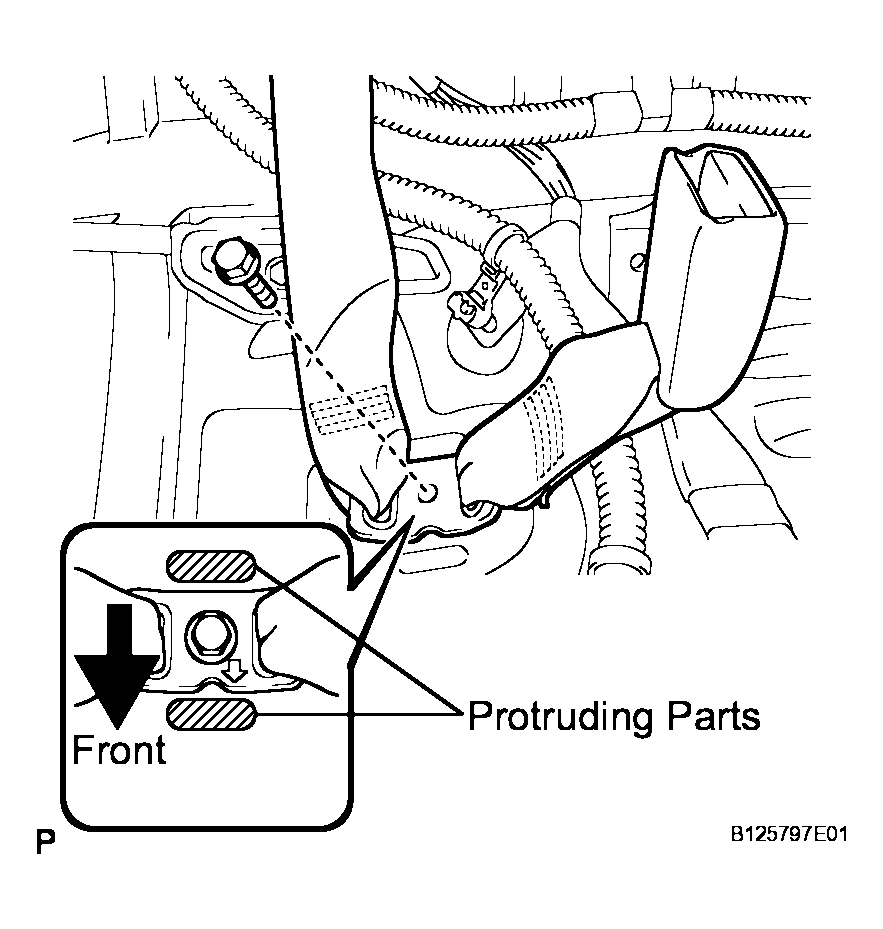

  Fig 7: Connecting Floor Side Of Rear Seat Inner With Center Belt Assembly RH With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. Connect the floor side of the rear seat 3 point type belt assembly LH with the bolt.
  Torque: 42 N*m (428 kgf*cm, 31 ft.*lbf)

  NOTE: Do not allow the anchor part of the rear seat 3 point type belt assembly LH and the protruding parts of the floor panel to overlap.

  HINT:

  Use the same procedures for the RH side and the LH side.
8. Check if the ELR locks.

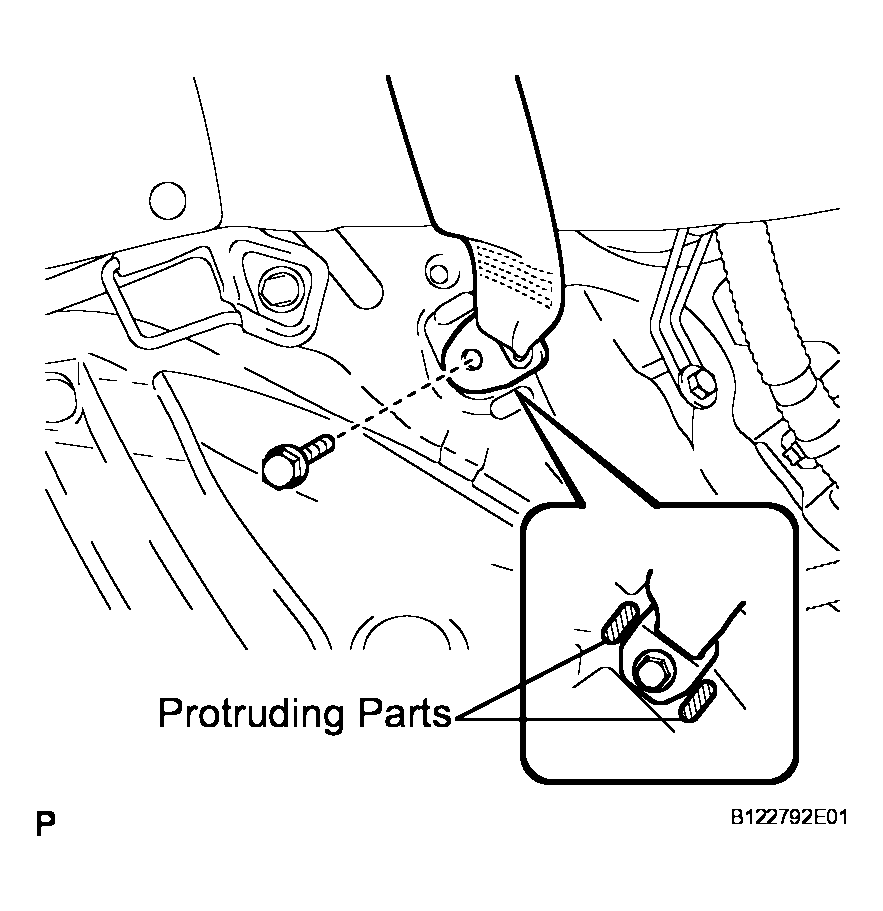

  Fig 8: Connecting Floor Side Of Rear Seat 3 Point Type Belt Assembly LH With Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: The check should be performed with the outer belt assembly installed.
  1. With the belt assembly installed, check that the belt locks when the belt is pulled out quickly.
INSTALL ROOF SIDE INNER GARNISH LH (See Step 26 in INSTALLATION )
INSTALL ROOF SIDE INNER GARNISH RH
INSTALL REAR SEAT SIDE GARNISH LH (See Step 28 in INSTALLATION )
INSTALL REAR SEAT SIDE GARNISH RH
INSTALL REAR DOOR SCUFF PLATE LH (See Step 37 in INSTALLATION )
INSTALL REAR DOOR SCUFF PLATE RH
INSTALL REAR SEATBACK ASSEMBLY (See INSTALLATION )
INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
INSTALL REAR SEAT HEADREST ASSEMBLY
INSTALL REAR SEAT CUSHION ASSEMBLY (See Step 4 in INSTALLATION )
