Rear Sunshade Assembly: Components

Fig 1: Rear Sunshade Assembly Replacement Components With Torque Specifications (1 Of 3)
G04051638Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

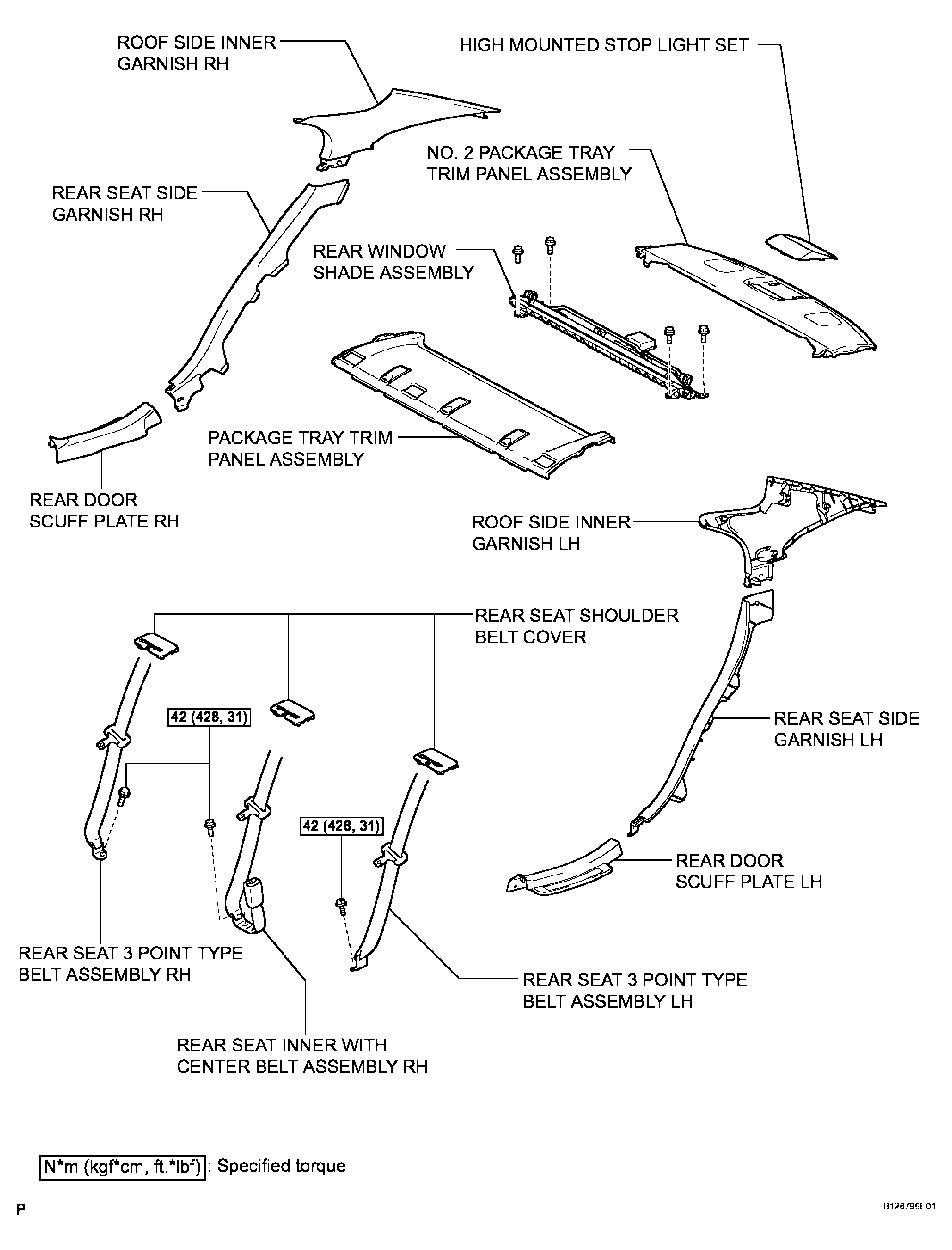

Fig 2: Rear Sunshade Assembly Replacement Components With Torque Specifications (2 Of 3)
G04051639Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

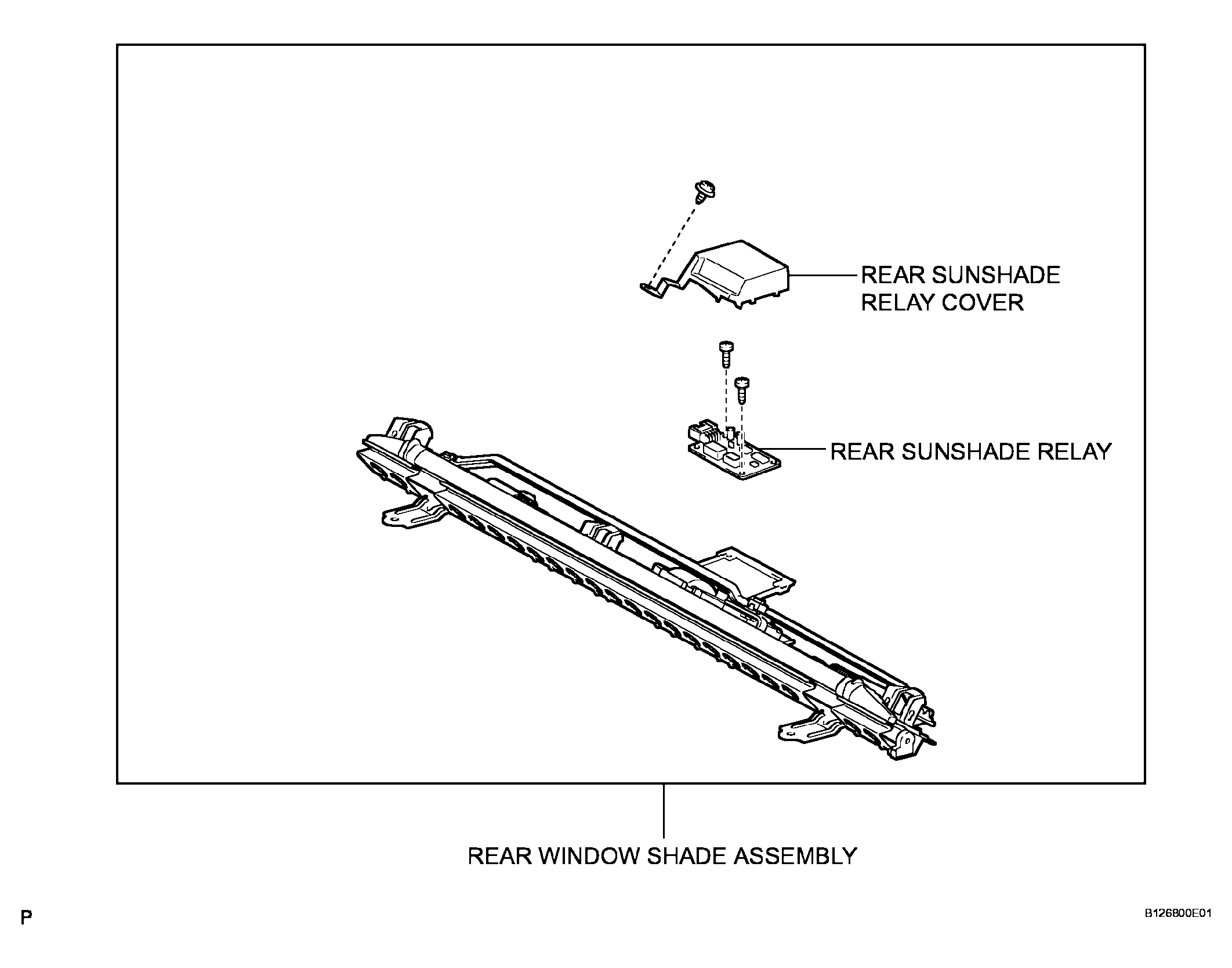

Fig 3: Identifying Rear Sunshade Assembly Components (3 Of 3)
G04051640Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
