ID Code Box Power Source Circuit: Wiring Diagram

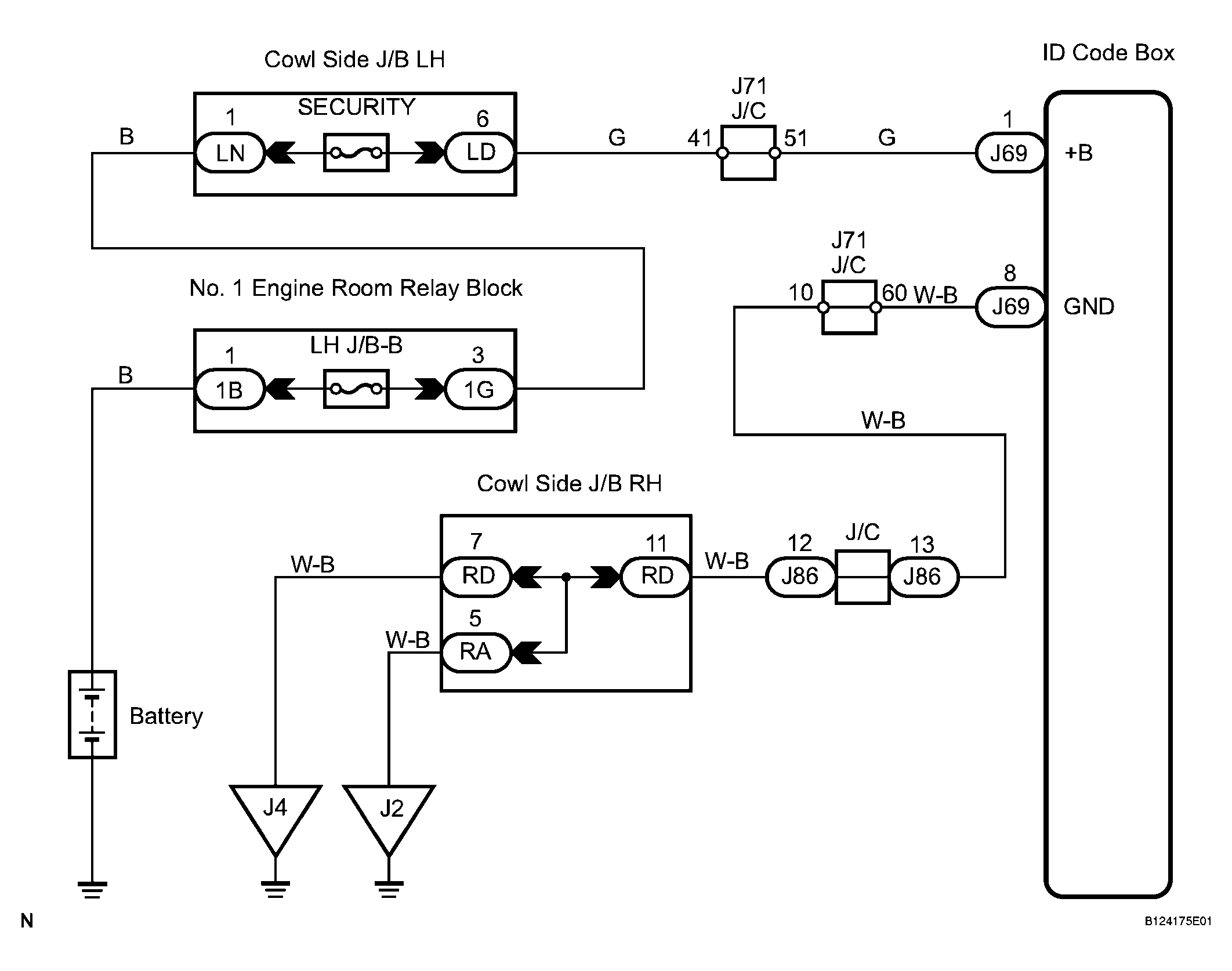

Fig 1: Wiring Diagram - ID Code Box Power Source Circuit

G04049181

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
