Home >> Lexus >> 2007 >> IS 350 >> Repair and Diagnosis >> Accessories & Equipment >> Warning Systems >> Park Assist/Monitoring >> Clearance Warning Ecu >> Components

Clearance Warning Ecu: Components

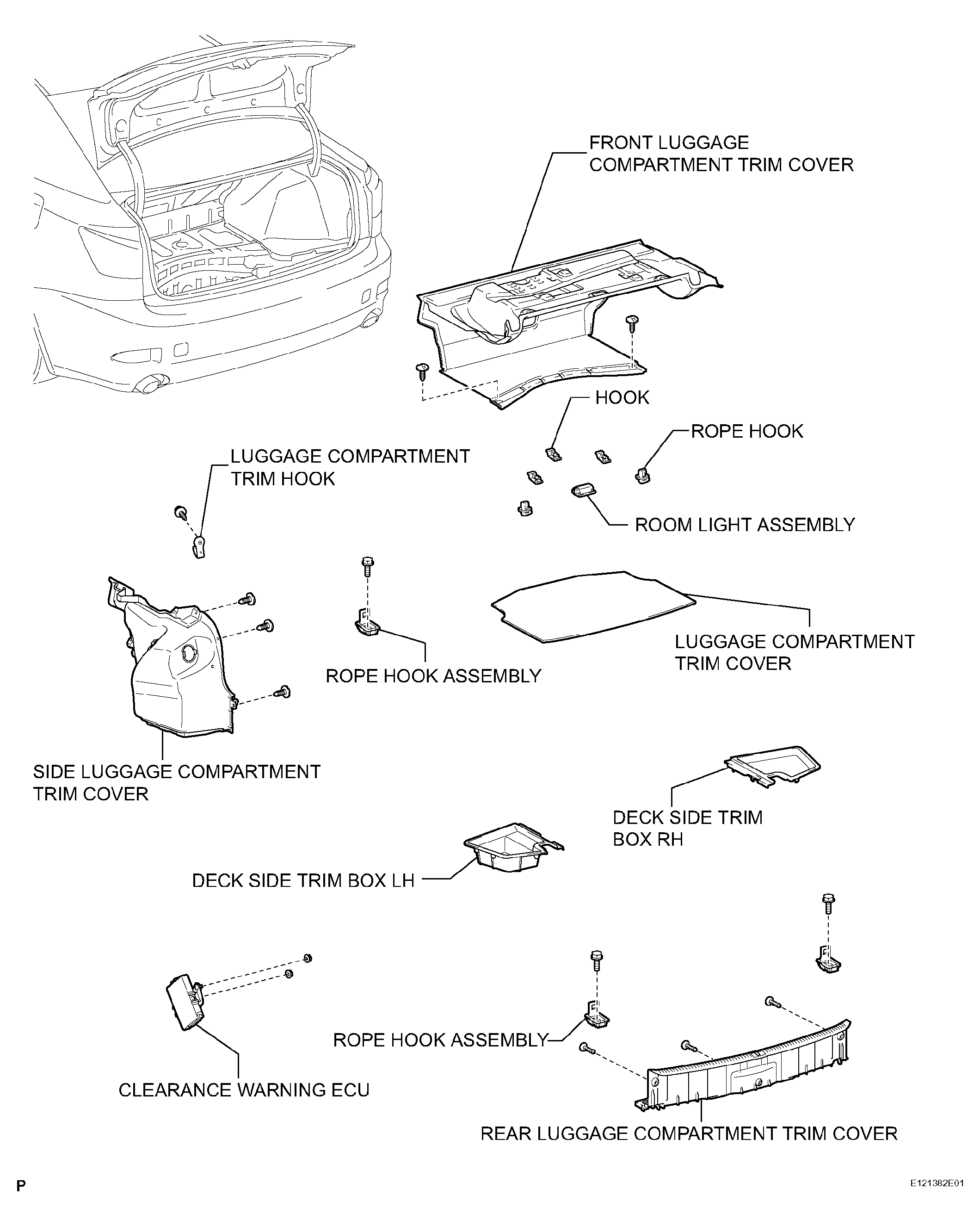

Fig 1: Identifying Clearance Warning ECU Components

G04050620

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
