Parts Location

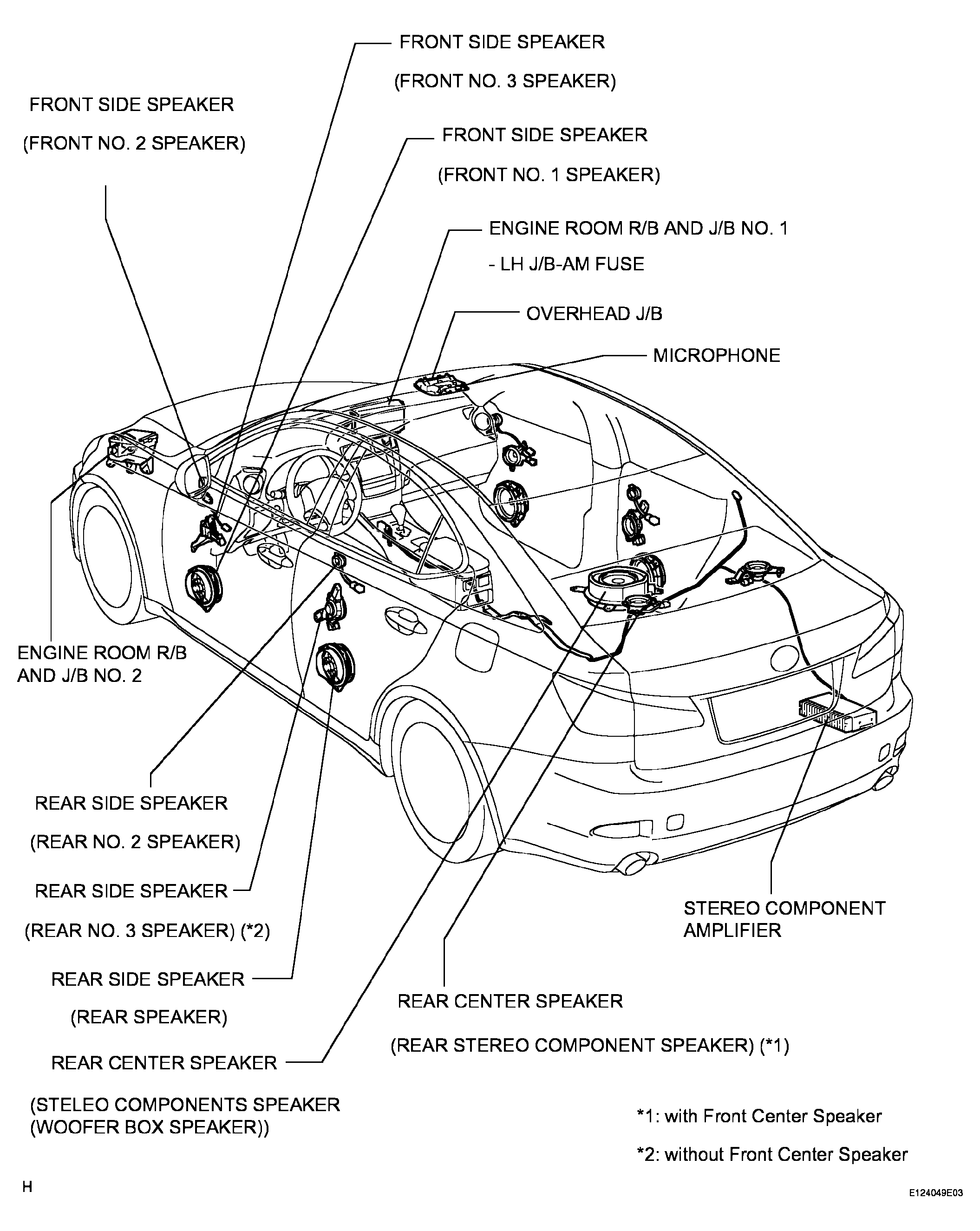

Fig 1: Identifying Navigation System Parts Location (1 Of 2)
G04050293Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

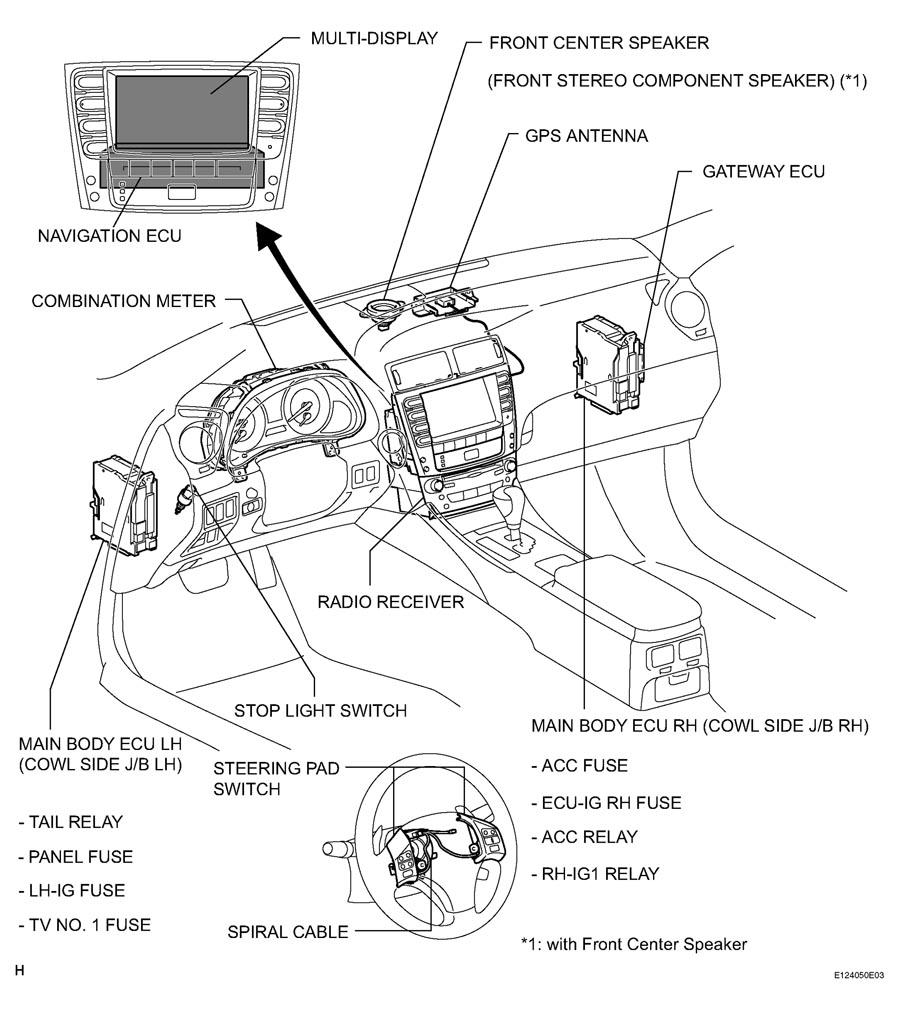

Fig 2: Identifying Navigation System Parts Location (2 Of 2)
G04050294Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
