Turn Signal Flasher Assembly: Components

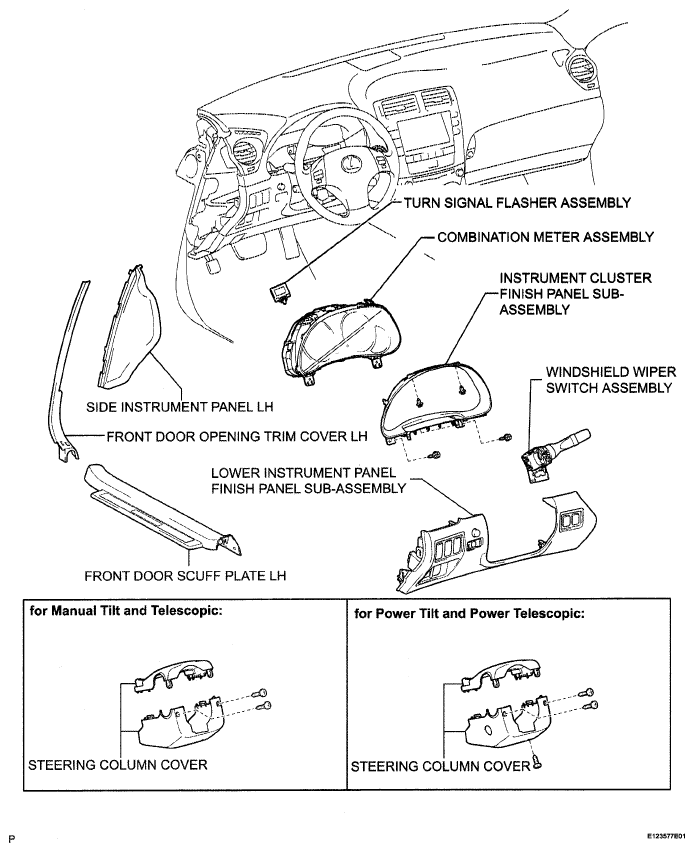

Fig 1: Identifying Turn Signal Flasher Assembly Components

G05320591

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
