Home >> Lexus >> 2007 >> IS 350 >> Repair and Diagnosis >> Accessories & Equipment >> Headlights >> Lighting >> Headlight Dimmer Switch >> Components

Headlight Dimmer Switch: Components

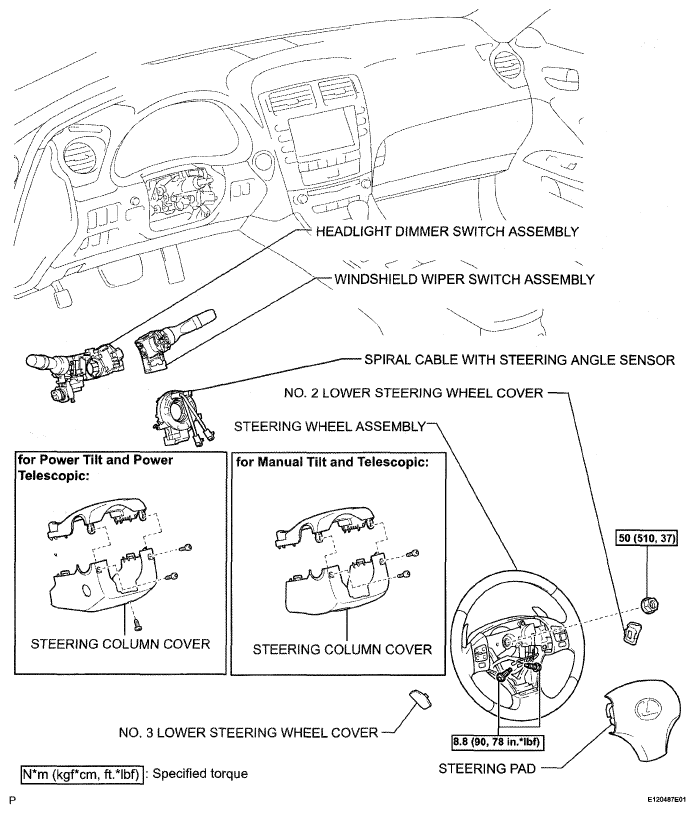

Fig 1: Headlight Dimmer Switch Replacement Components With Torque Specifications

G05320542

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
