Parts Location

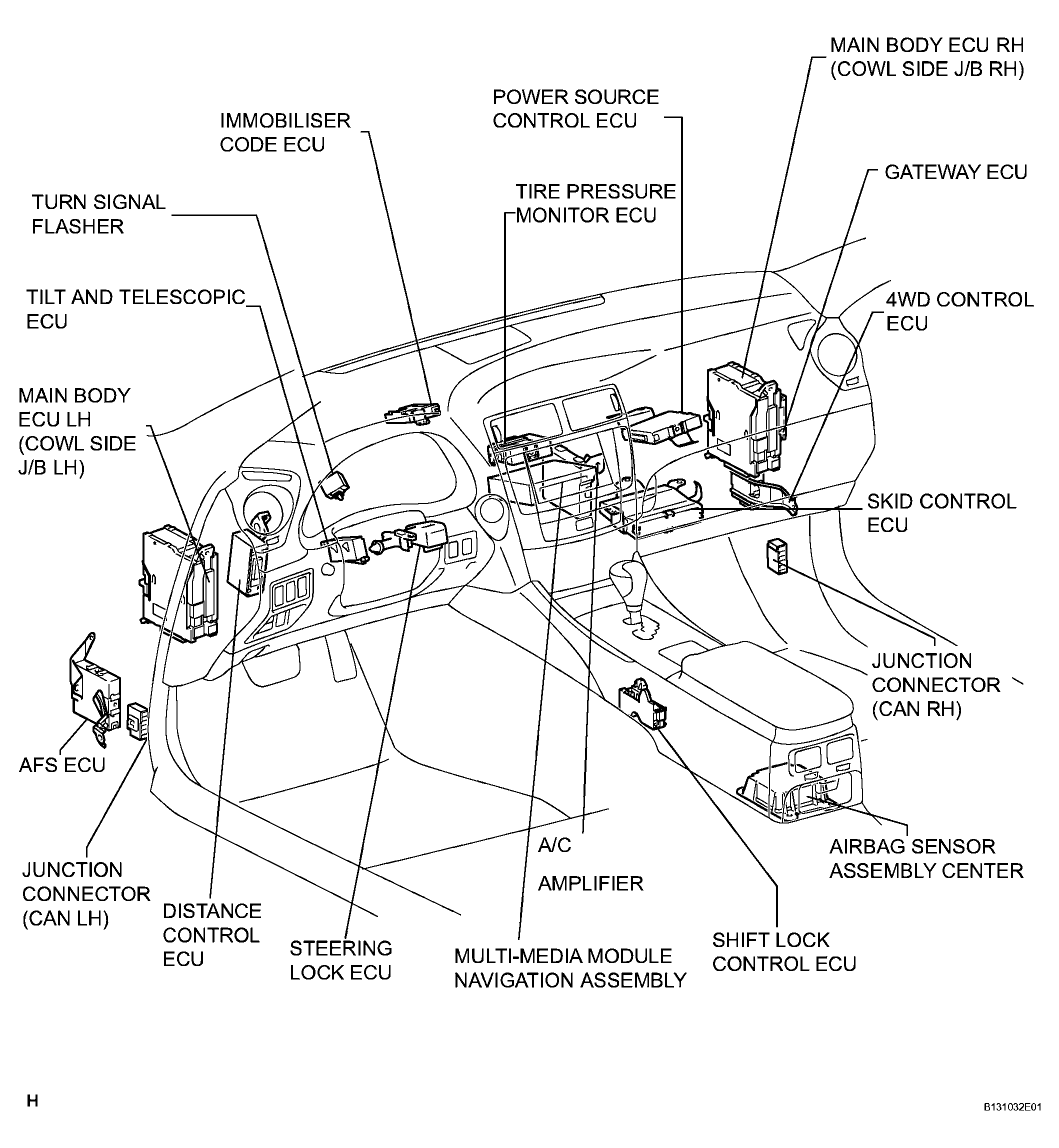

Fig 1: Identifying Multiplex Communication System Parts Location (1 Of 3)
G04051794Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

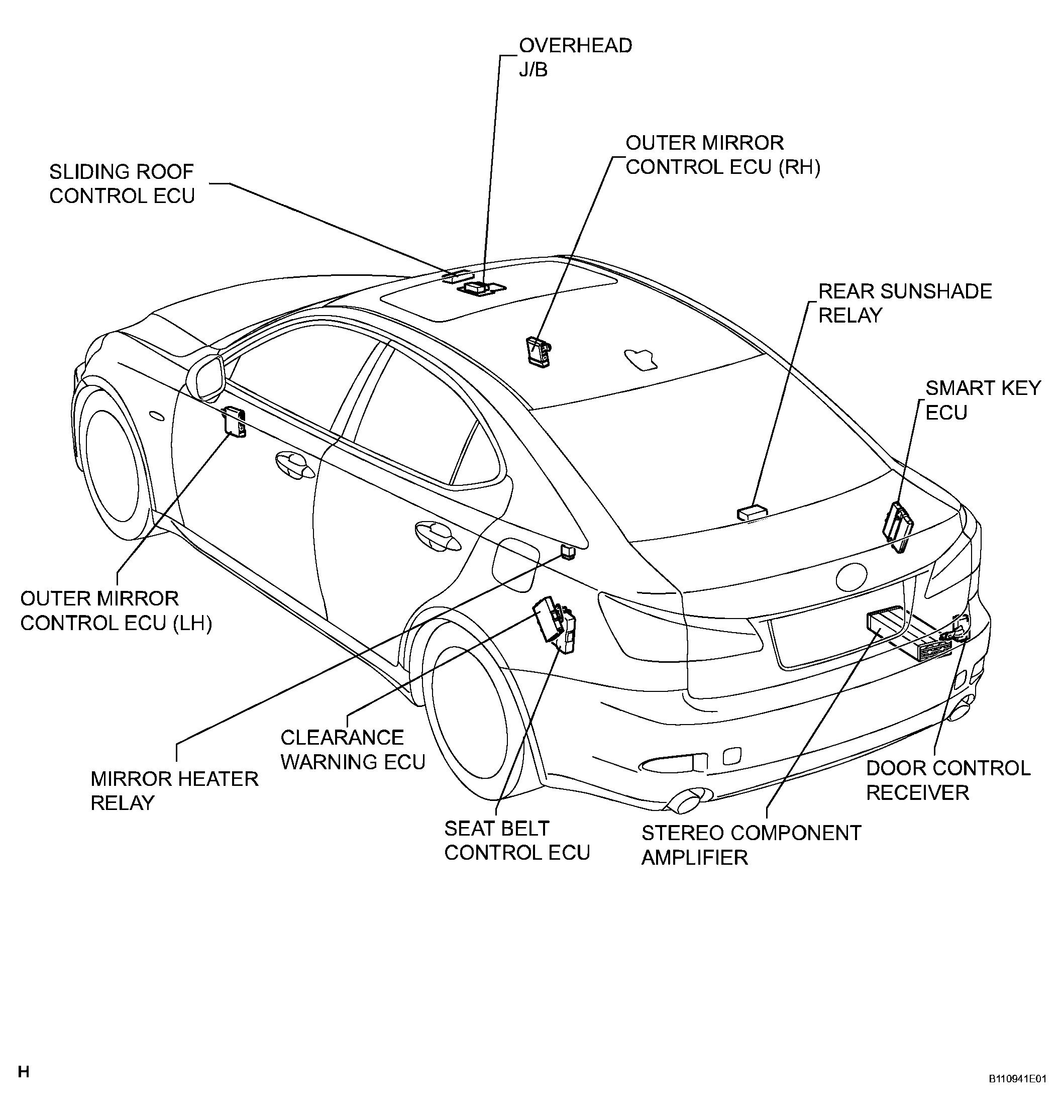

Fig 2: Identifying Multiplex Communication System Parts Location (2 Of 3)
G04051795Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

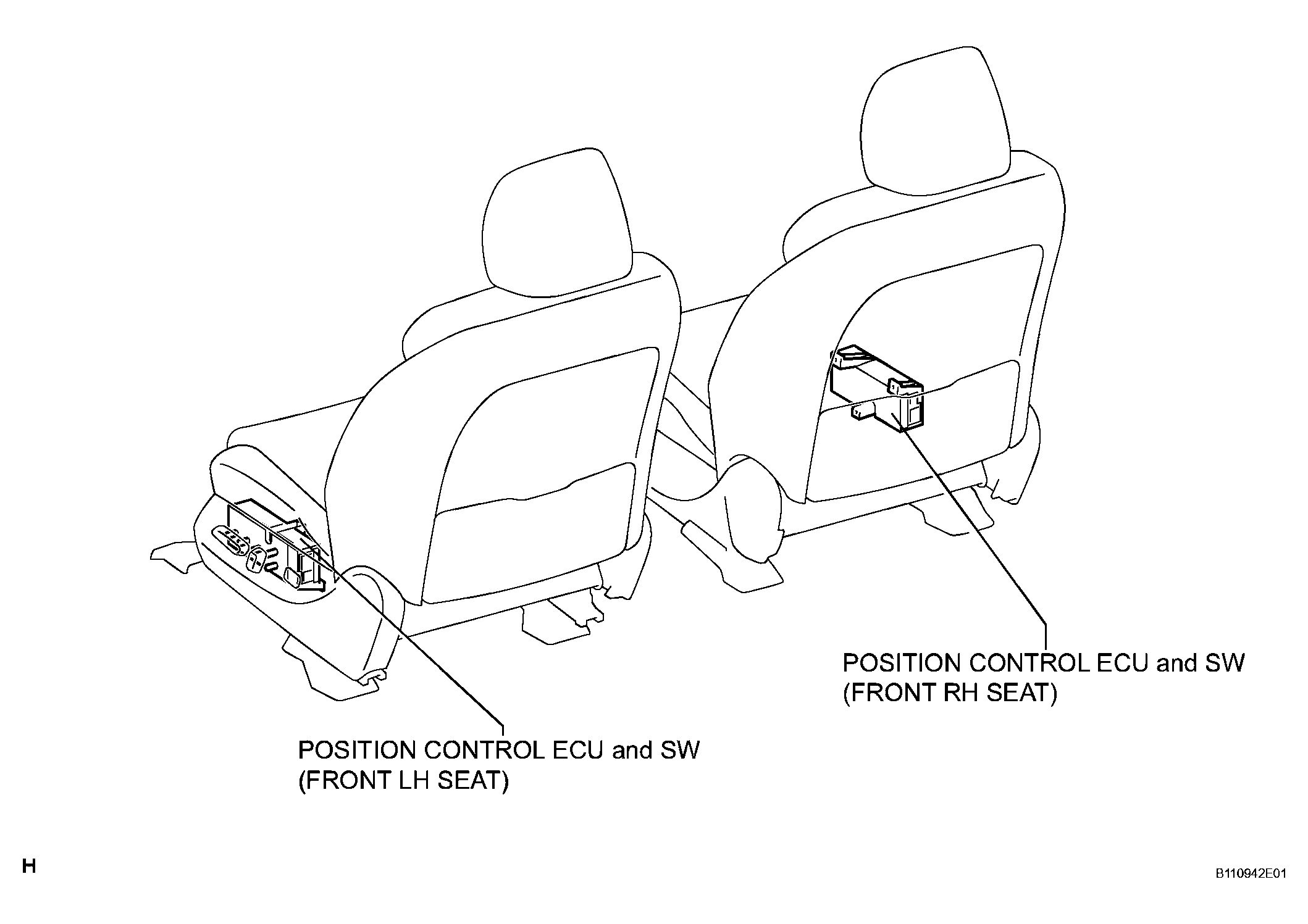

Fig 3: Identifying Multiplex Communication System Parts Location (3 Of 3)
G04051796Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
