Rear Center Speaker: Installation

  1. INSTALL REAR STEREO COMPONENT SPEAKER ASSEMBLY (w/ Front Center Speaker)
    1. Engage the clip to the vehicle body to temporarily install the rear stereo component speaker assembly.
      Fig 1: Identifying Rear Stereo Component Speaker Assembly (W/ Front Center Speaker)
      G04050241Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the rear stereo component speaker assembly with the bolt.
    3. Connect the connector.
  2. INSTALL NO. 2 PACKAGE TRAY TRIM PANEL ASSEMBLY (w/ Front Center Speaker) (See  INSTALLATION  )
    Fig 2: Identifying Rear Stereo Component Speaker Assembly With Bolt
    G04050242Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL STEREO COMPONENT SPEAKER ASSEMBLY
    1. Install the stereo component speaker assembly with the 4 bolts.

      HINT:

      Install the bolts in the order shown in the illustration.

    2. Connect the connector.

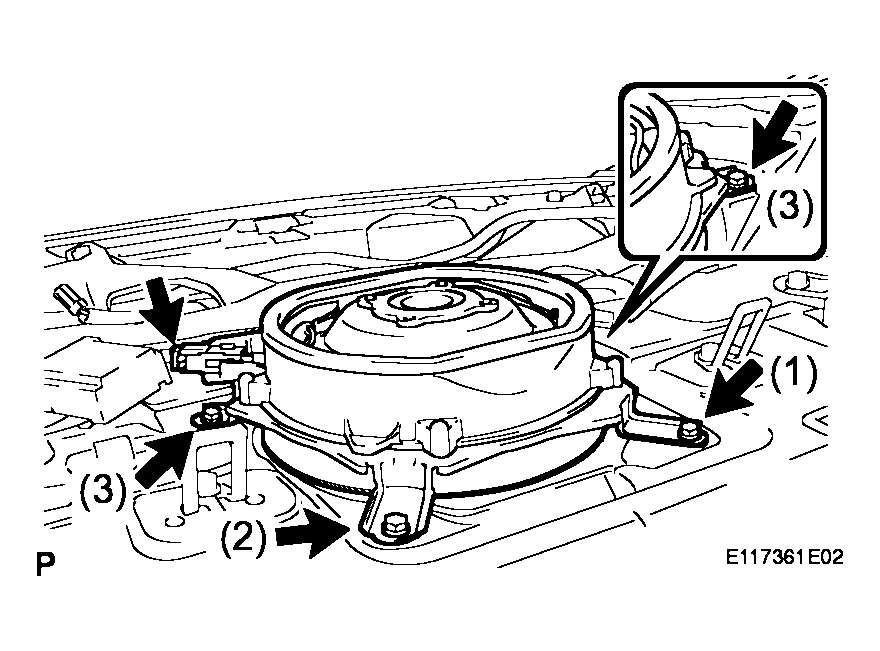

    Fig 3: Identifying Stereo Component Speaker Assembly With Bolts
    G04050243Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL PACKAGE TRAY TRIM PANEL ASSEMBLY (See  INSTALLATION  )
  5. INSTALL ROOF SIDE INNER GARNISH LH (See  INSTALLATION  )
  6. INSTALL ROOF SIDE INNER GARNISH RH
  7. INSTALL REAR SIDE SEAT GARNISH LH (See  INSTALLATION  )
  8. INSTALL REAR SIDE SEAT GARNISH RH
  9. INSTALL REAR DOOR SCUFF PLATE LH (See  INSTALLATION  )
  10. INSTALL REAR DOOR SCUFF PLATE RH
  11. INSTALL REAR SEATBACK ASSEMBLY (See  INSTALLATION  )
  12. INSTALL REAR CENTER SEAT HEADREST ASSEMBLY
  13. INSTALL REAR SEAT HEADREST ASSEMBLY
  14. INSTALL REAR SEAT CUSHION ASSEMBLY (See  INSTALLATION  )
