Audio / Visual: Microphone: Removal

  1. REMOVE MAP LIGHT ASSEMBLY (w/o Sliding Roof) (See  REMOVAL  )
  2. REMOVE MAP LIGHT ASSEMBLY (w/ Sliding Roof) (See  REMOVAL  )
  3. REMOVE AMPLIFIER MICROPHONE
    1. Disconnect the connector.

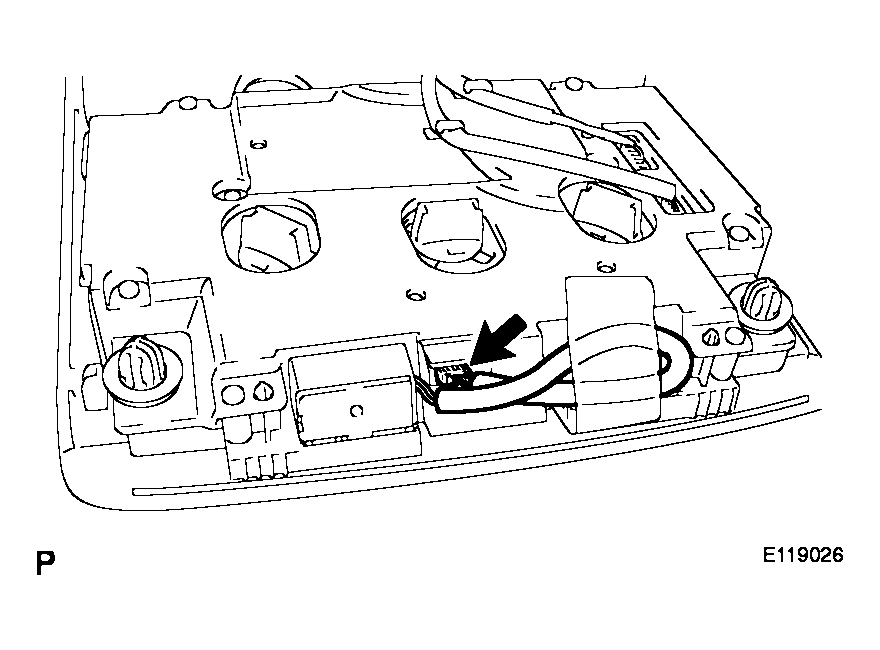

      Fig 1: Identifying Connector
      G04050284Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disengage the 2 claws and remove the amplifier microphone.

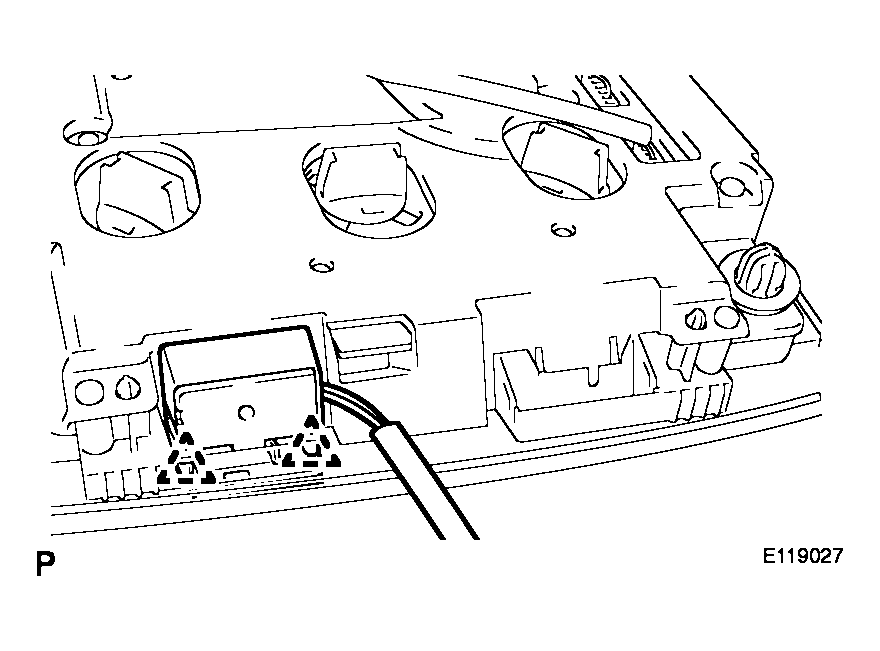

    Fig 2: Identifying Amplifier Microphone And Disengage Claws
    G04050285Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
