System Diagram

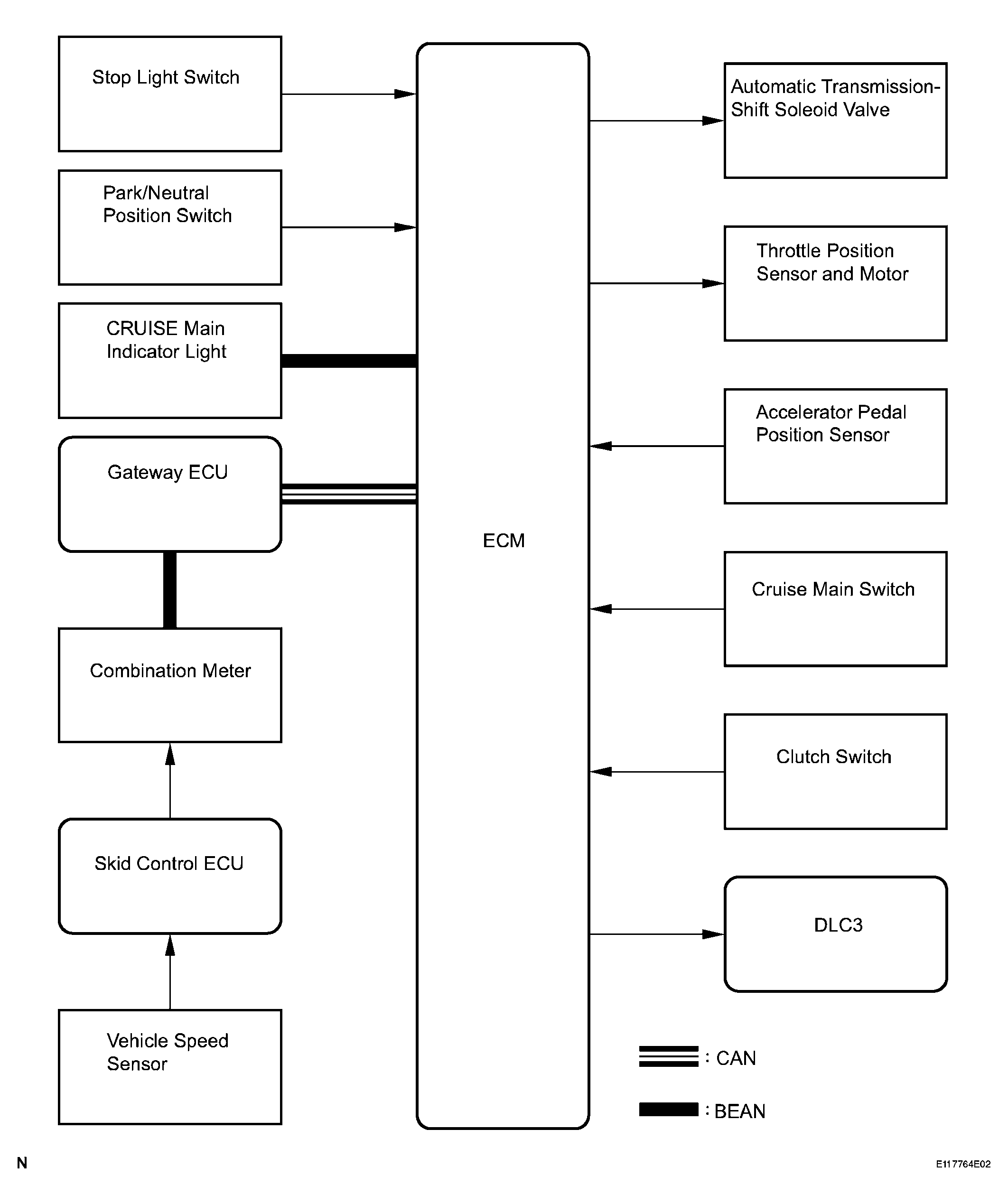

Fig 1: Identifying Cruise Control System Diagram
G04049189Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication Table:

COMMUNICATION TABLE

Sender Receiver Signal Line
ECM Combination Meter ECU CRUISE main indicator operation signal BEAN (Instrument Panel Bus)
