Rear Power Window Motor LH Circuit: Wiring Diagram

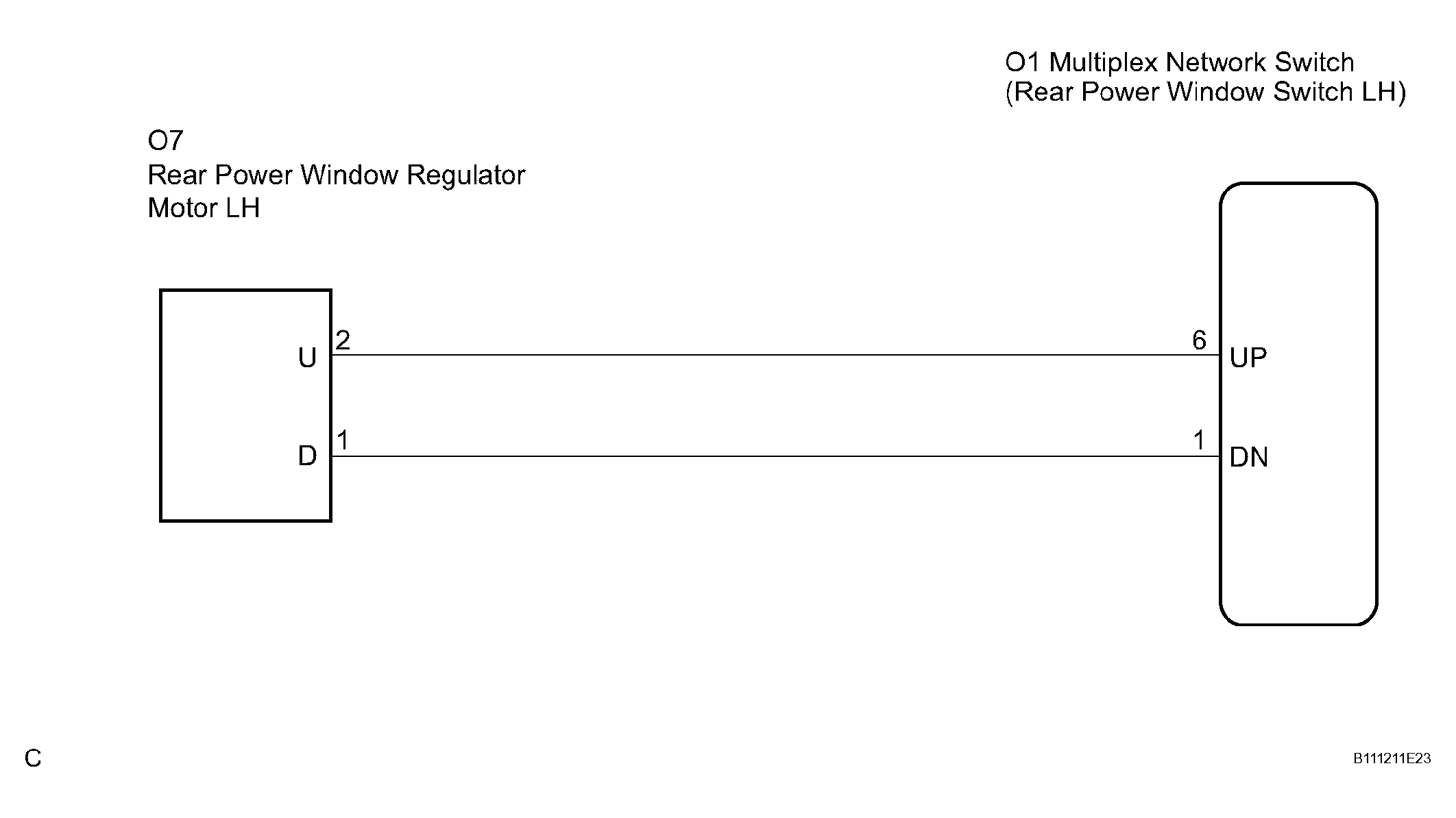

Fig 1: Identifying Rear Power Window Motor LH Wiring Diagram

G04050727

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
