Parts Location

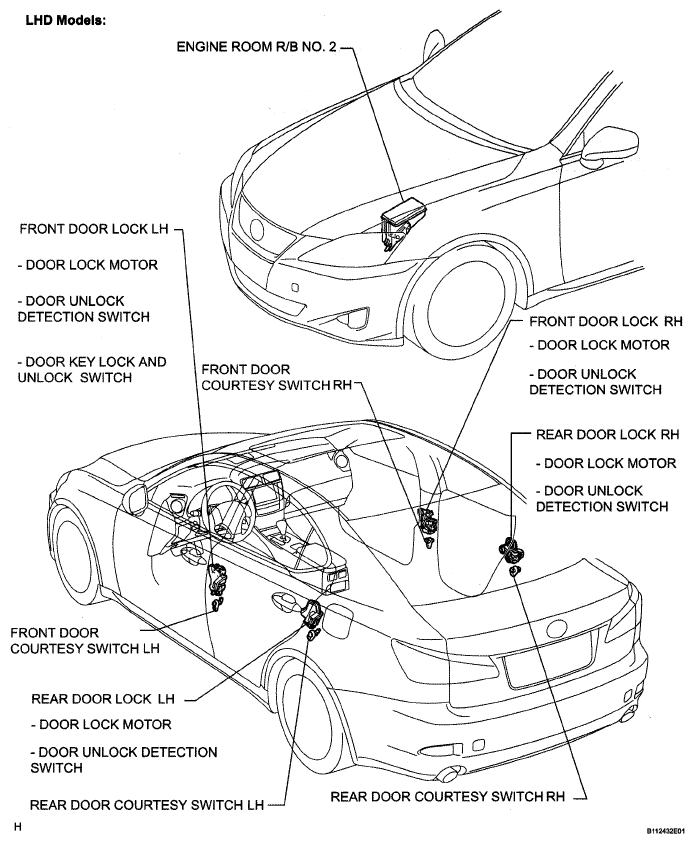

Fig 1: Identifying Power Door Lock Control System Part Location (1 Of 2)
G05320594Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

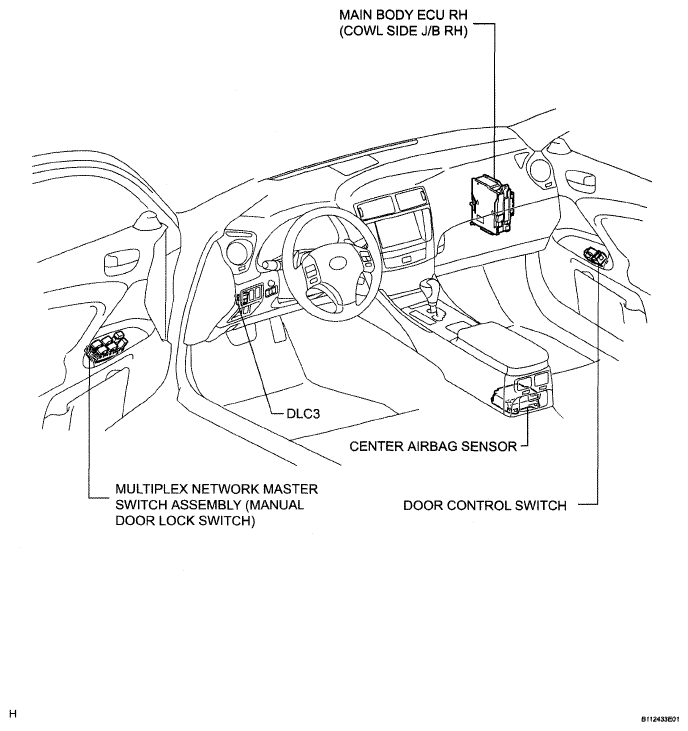

Fig 2: Identifying Power Door Lock Control System Part Location (2 Of 2)
G05320595Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
