Inspection Procedure

  1. CHECK WIRE HARNESS (BATT, ACC, IG, GND)
    1. Turn the engine switch off.
    2. Disconnect the gateway ECU connector (J76).
    3. Measure the resistance according to the value(s) in WIRE HARNESS (BATT, ACC, IG, GND) (RESISTANCE)  .

      Standard resistance

      WIRE HARNESS (BATT, ACC, IG, GND) (RESISTANCE)

      Tester Connection Condition Specified Value
      J76-24 (GND) - Body ground Always Below 1 ohms
    4. Measure the voltage according to the value(s) in WIRE HARNESS (BATT, ACC, IG, GND) (VOLTAGE)  .

    Standard voltage

    WIRE HARNESS (BATT, ACC, IG, GND) (VOLTAGE)

    Tester Connection Condition Specified Value
    J76-10 (BATT) - Body ground Always 10 to 14 V
    J76-2 (ACC) - Body ground Engine switch on (IG) 10 to 14 V
    J76-1 (IG) - Body ground Engine switch on (IG) 10 to 14 V

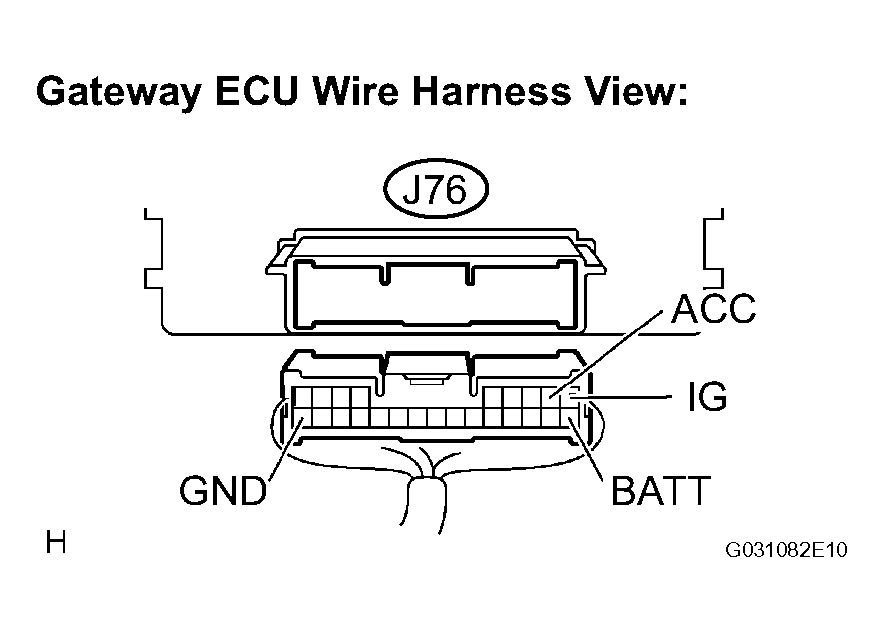

    Fig 1: Identifying J76 Connector Terminals
    G04051948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    NG: REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK: REPLACE GATEWAY ECU
