Distance Control ECU Communication Stop Mode: Wiring Diagram

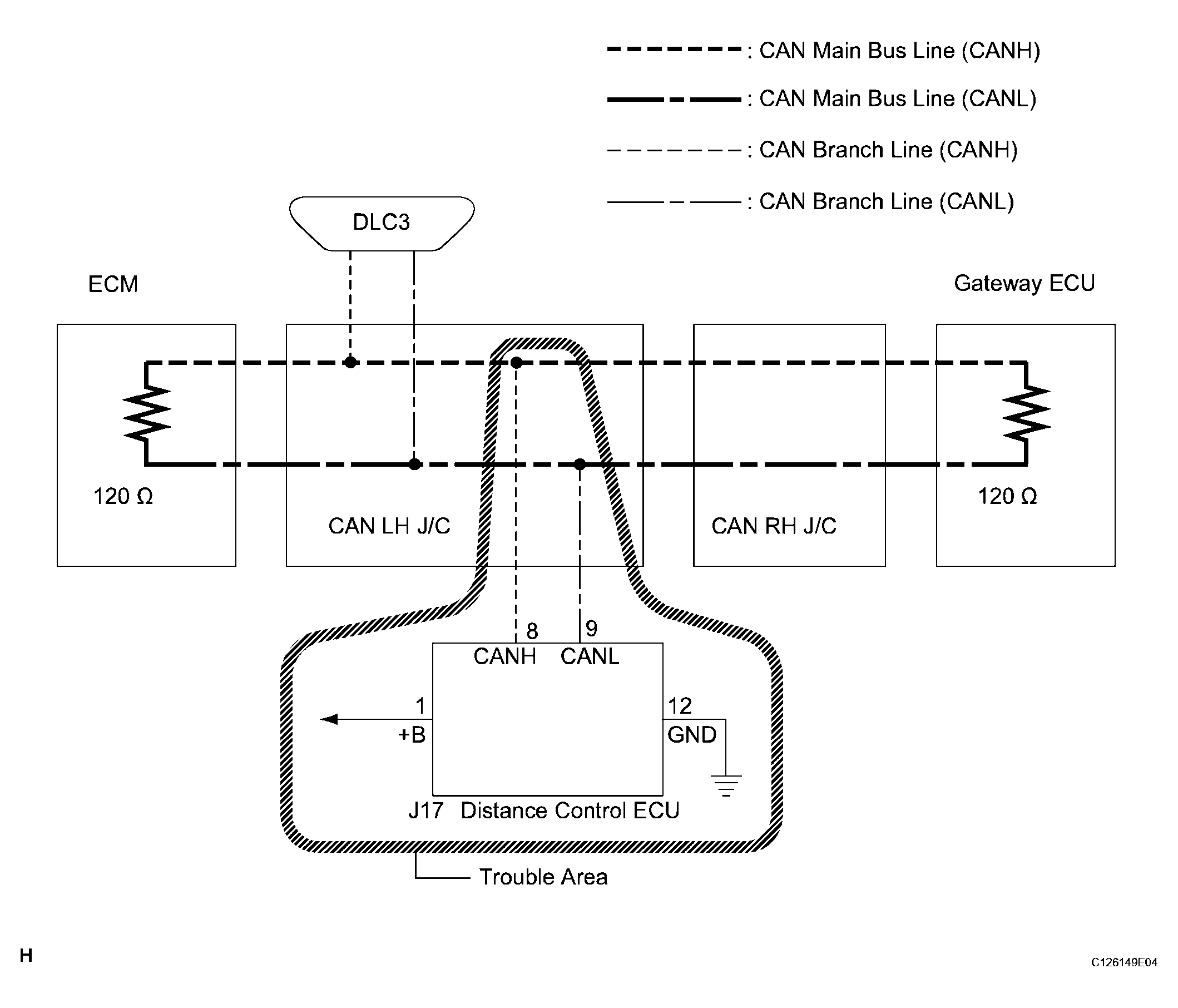

Fig 1: Identifying Distance Control ECU Communication Wiring Diagram

G04051938

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
