Smog Ventilation Sensor: Installation

  1. INSTALL SMOG VENTILATION SENSOR
    1. Install the smog ventilation sensor with the bolt.

      Torque: 9.8 N*m (100 kgf*cm, 7 ft.*lbf)

    2. Connect the connector.
  2. INSTALL COOL AIR INTAKE DUCT SEAL (See  INSTALLATION  )

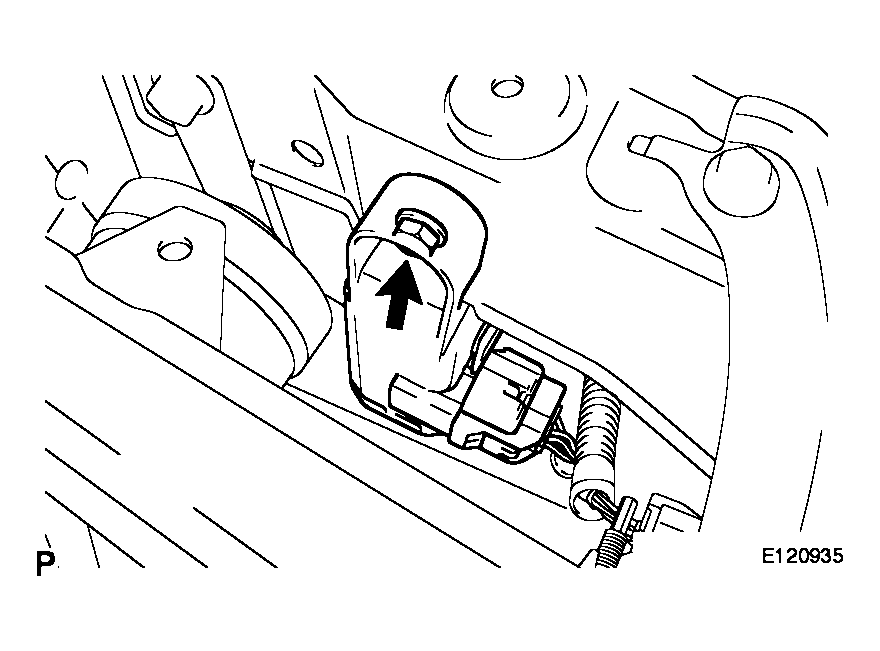

Fig 1: Identifying Smog Ventilation Sensor And Bolt
G04048522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
