Heater Glow Plug: Inspection

  1. INSPECT WATER BY-PASS GLOW PLUG
    1. Measure the resistance according to the value(s) in the table below.

      Standard resistance:

      Below 1 Ω

      If the resistance is not as specified, replace the water by-pass glow plug.

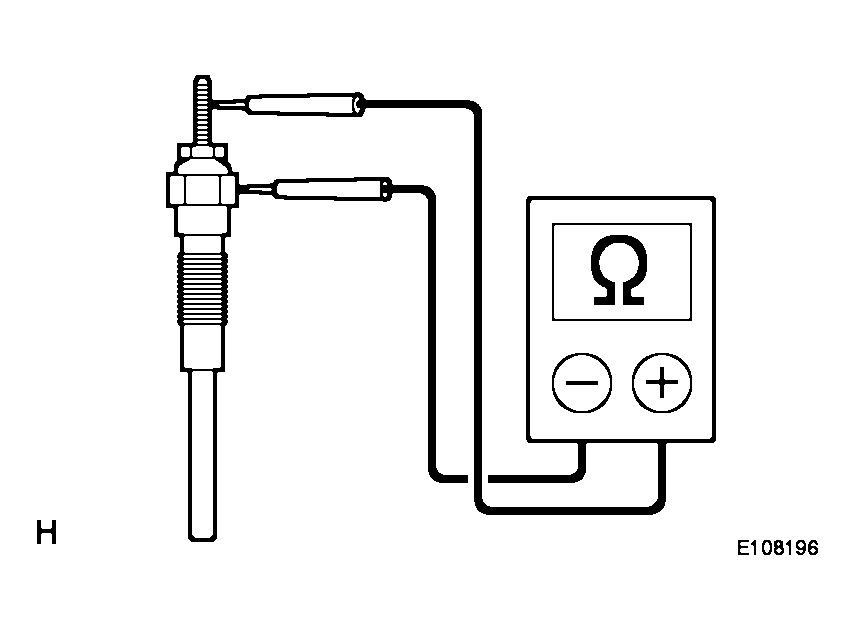

    Fig 1: Measuring Resistance To Value
    G04048528Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
