Clutch Start Switch: Inspection
WARNING: This page is about a different variant/trim than selected.

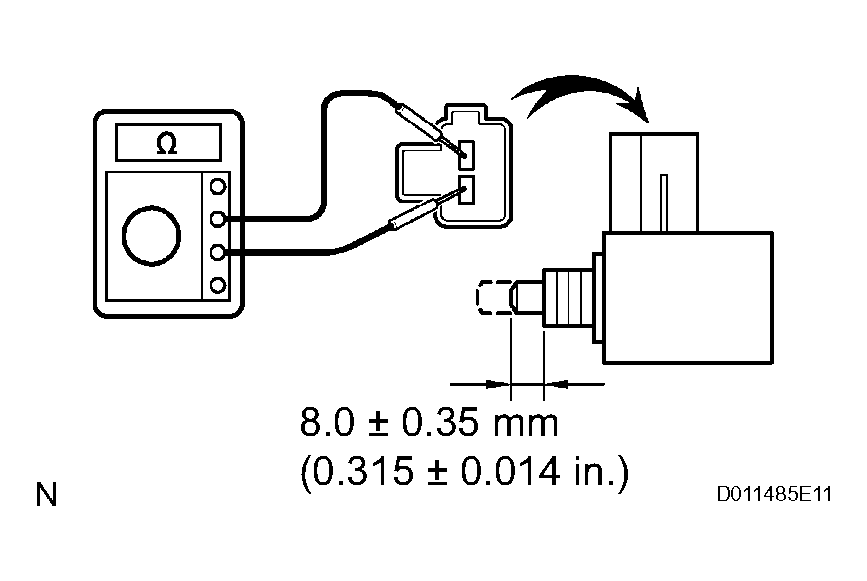

- INSPECT CLUTCH START SWITCH ASSEMBLY
- Measure the resistance between the terminals when the switch is ON and OFF.
Standard resistance :
CLUTCH START SWITCH TERMINALS RESISTANCE SPECIFICATION
| Switch position |
Condition |
| ON (pushed) |
Below 1 Ω |
| OFF (free) |
10 kΩ or higher |
