Oil Pump: Components

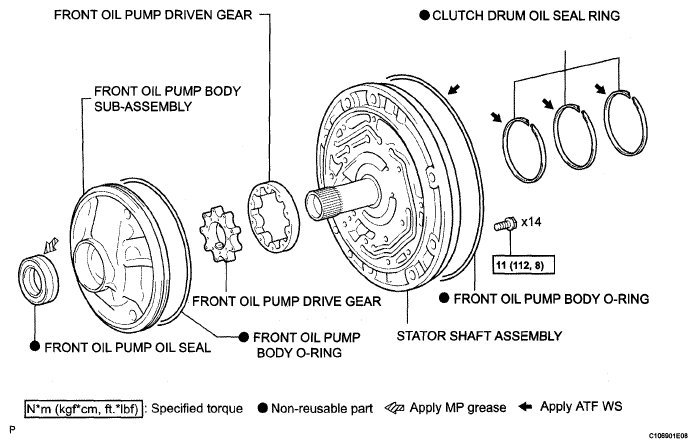

Fig 1: Exploded View Of Oil Pump Components With torque Specification

G05317894

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
