System Diagram

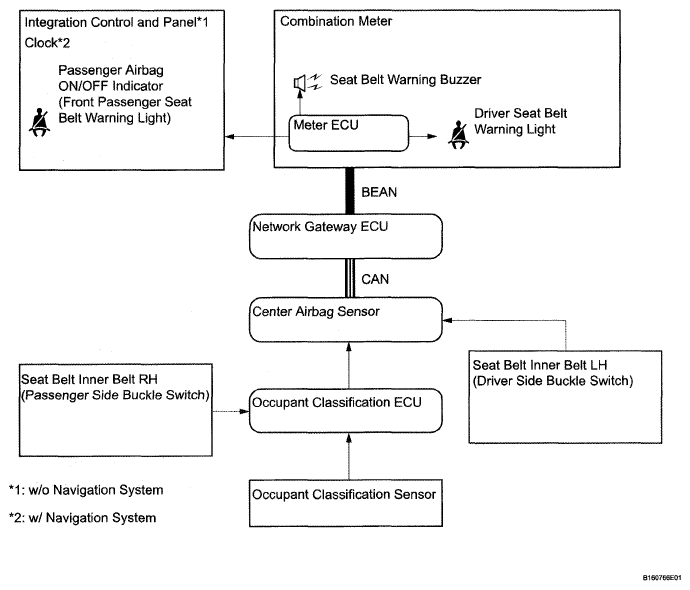

Fig 1: Seat Belt Warning System - System Diagram
G05320122Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Communication table:

COMMUNICATION REFERENCE CHART

Sender Receiver Signal Line
Center airbag sensor Network gateway ECU
  • Front seat inner belt switch signal (for driver side)
  • Front seat inner belt switch signal (for passenger side)
  • Occupant detection signal
 CAN
Network gateway ECU Combination meter
  • Front seat inner belt switch signal (for driver side)
  • Front seat inner belt switch signal (for passenger side)
  • Occupant detection signal
 BEAN
