How To Determine Bolt Strength

Bolt Type

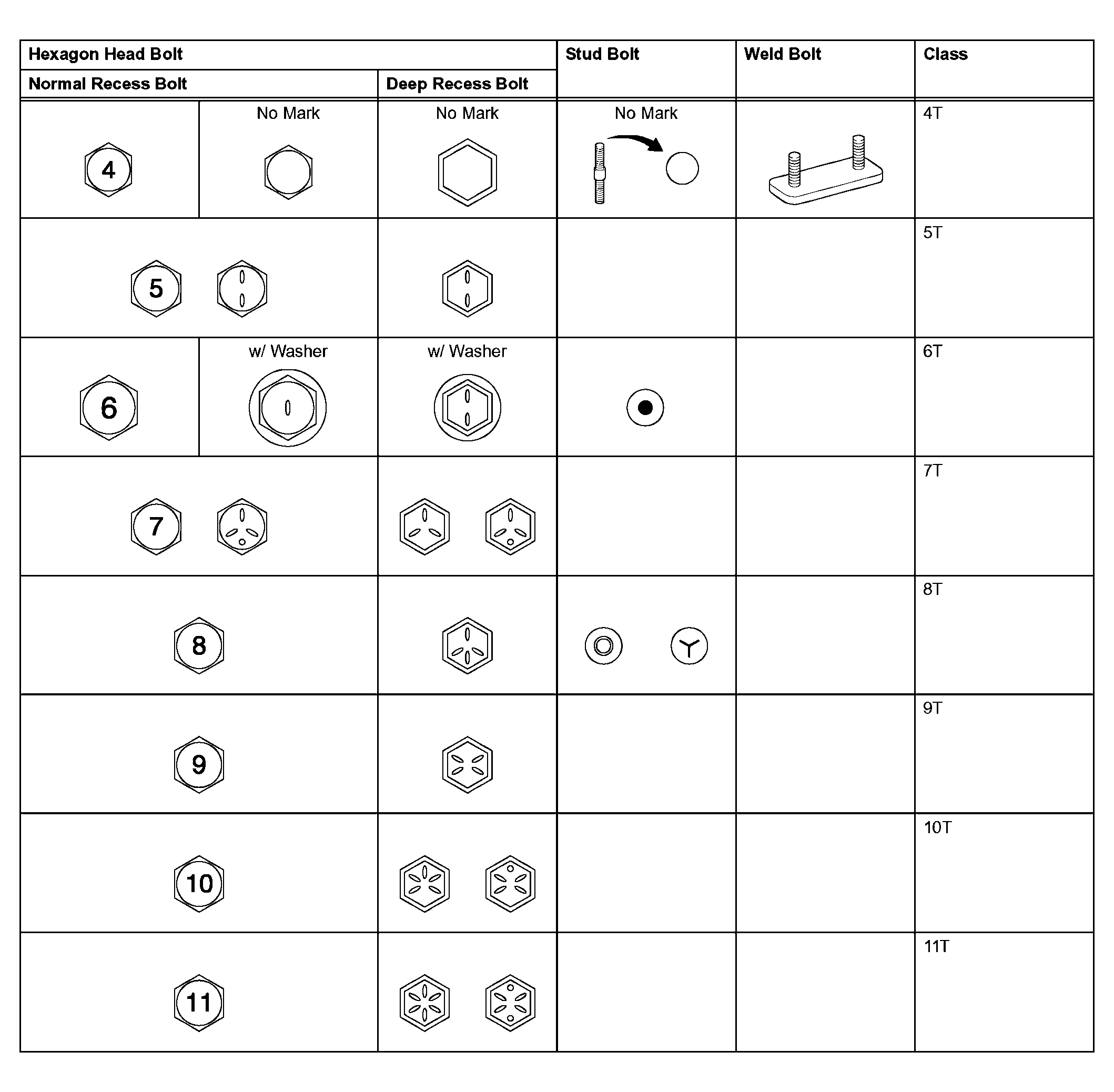

Fig 1: Identifying Standard Bolt Type Table - Specification
G04043436Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
