Injector Driver: Components

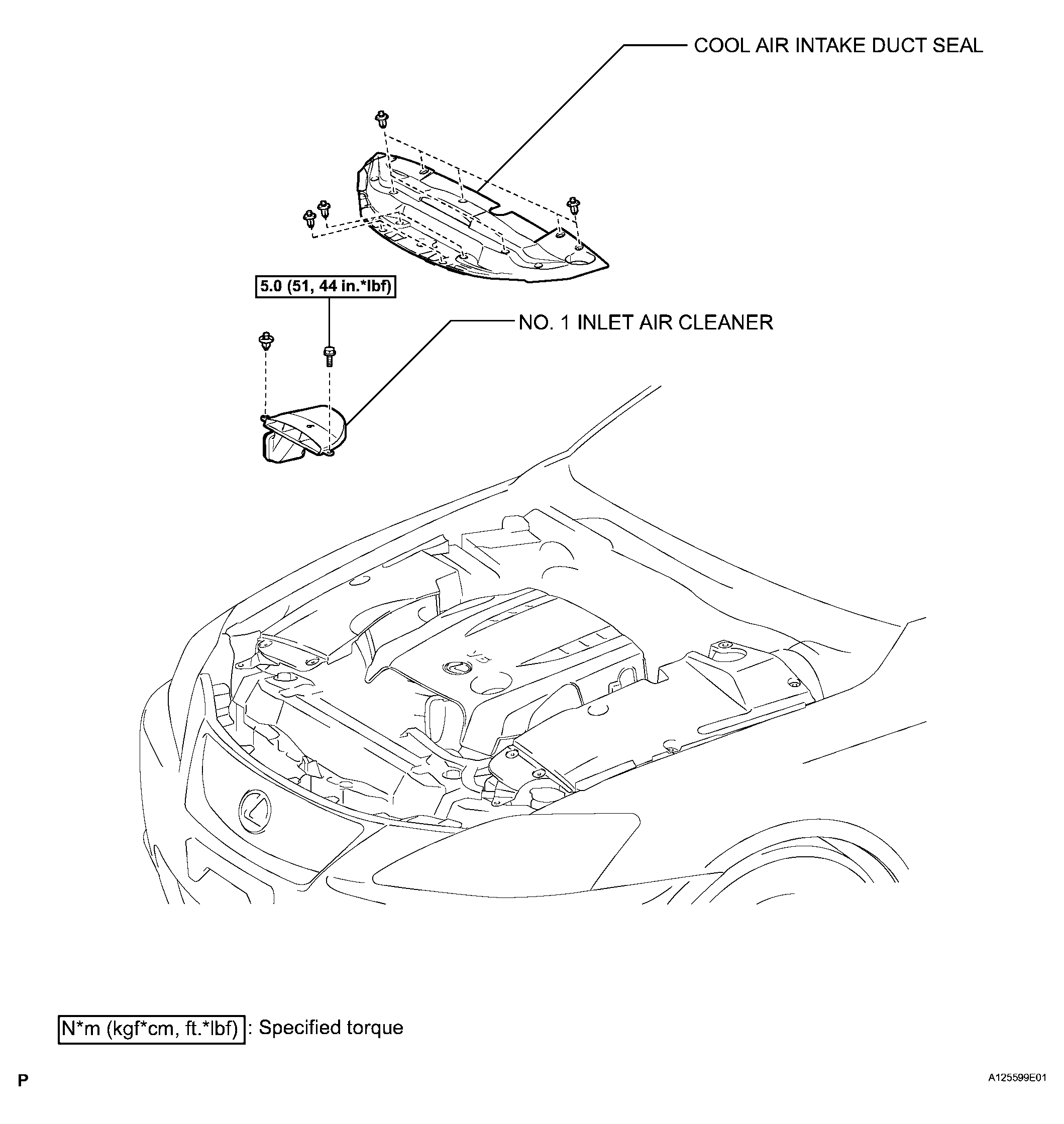

Fig 1: Injector Driver Replacement Components (1 Of 2) With Torque Specifications
G04044577Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

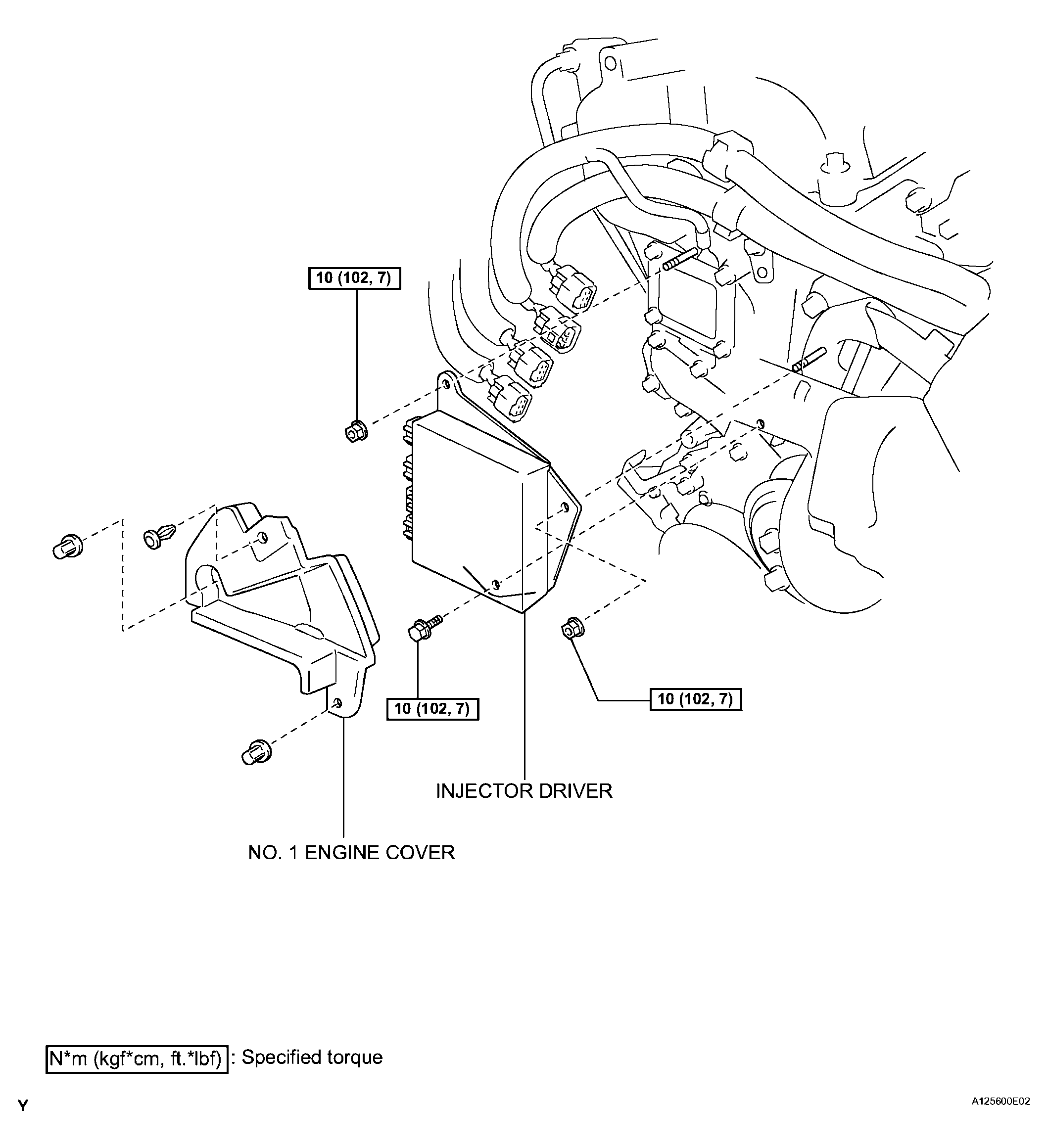

Fig 2: Injector Driver Replacement Components (2 Of 2) With Torque Specifications
G04044578Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
