Fuel Pump Resistor: Installation

INSTALL FUEL PUMP RESISTOR
1. Install the fuel pump resistor with the bolt.
  Torque: 5.0 N*m (51 kgf*cm, 44 in.*lbf)
2. Install the ground wires with the 2 bolts.

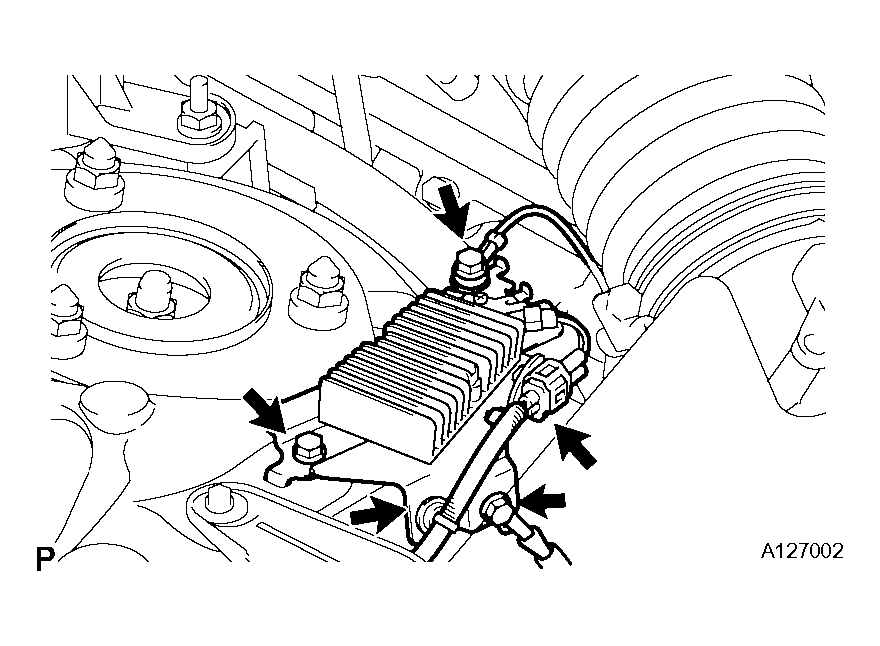

  Fig 1: Installing Fuel Pump Resistor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Torque: 8.0 N*m (80 kgf*cm, 69 in.*lbf)
3. Connect the connector with the clamp.
INSTALL ENGINE ROOM RH SIDE COVER (See Step 117 in INSTALLATION )
INSTALL COOL AIR INTAKE DUCT SEAL (See Step 118 in INSTALLATION )
CONNECT CABLE TO NEGATIVE BATTERY TERMINAL (See Step 93 in INSTALLATION )
PERFORM INITIALIZATION
1. Perform initialization (See INITIALIZATION ).
  HINT:

  Certain systems need to be initialized after reconnecting the cable to the negative (-) battery terminal.
