Fuel Pump Resistor: Components

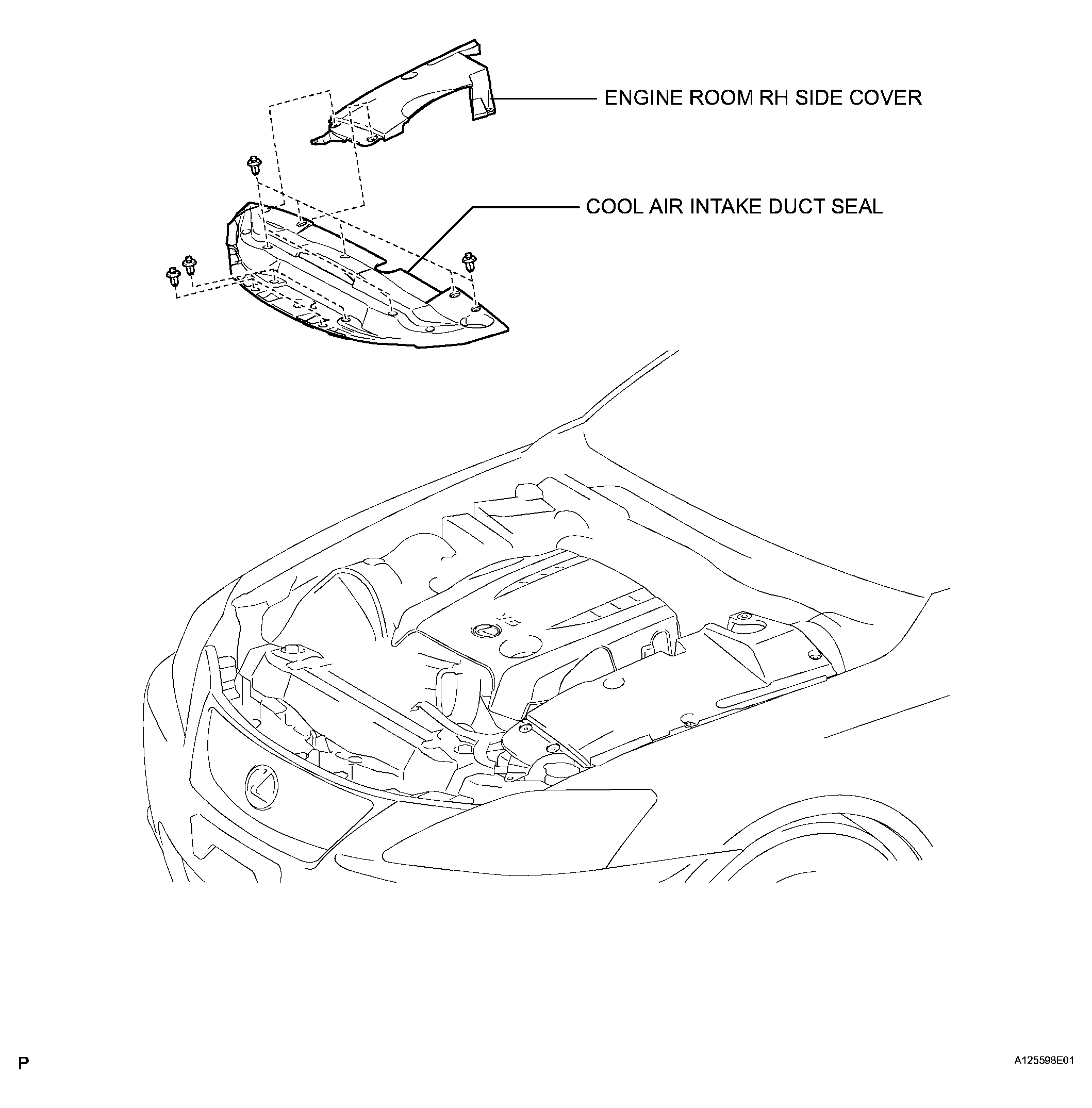

Fig 1: Identifying Fuel Pump Resistor Components (1 Of 2)
G04044635Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

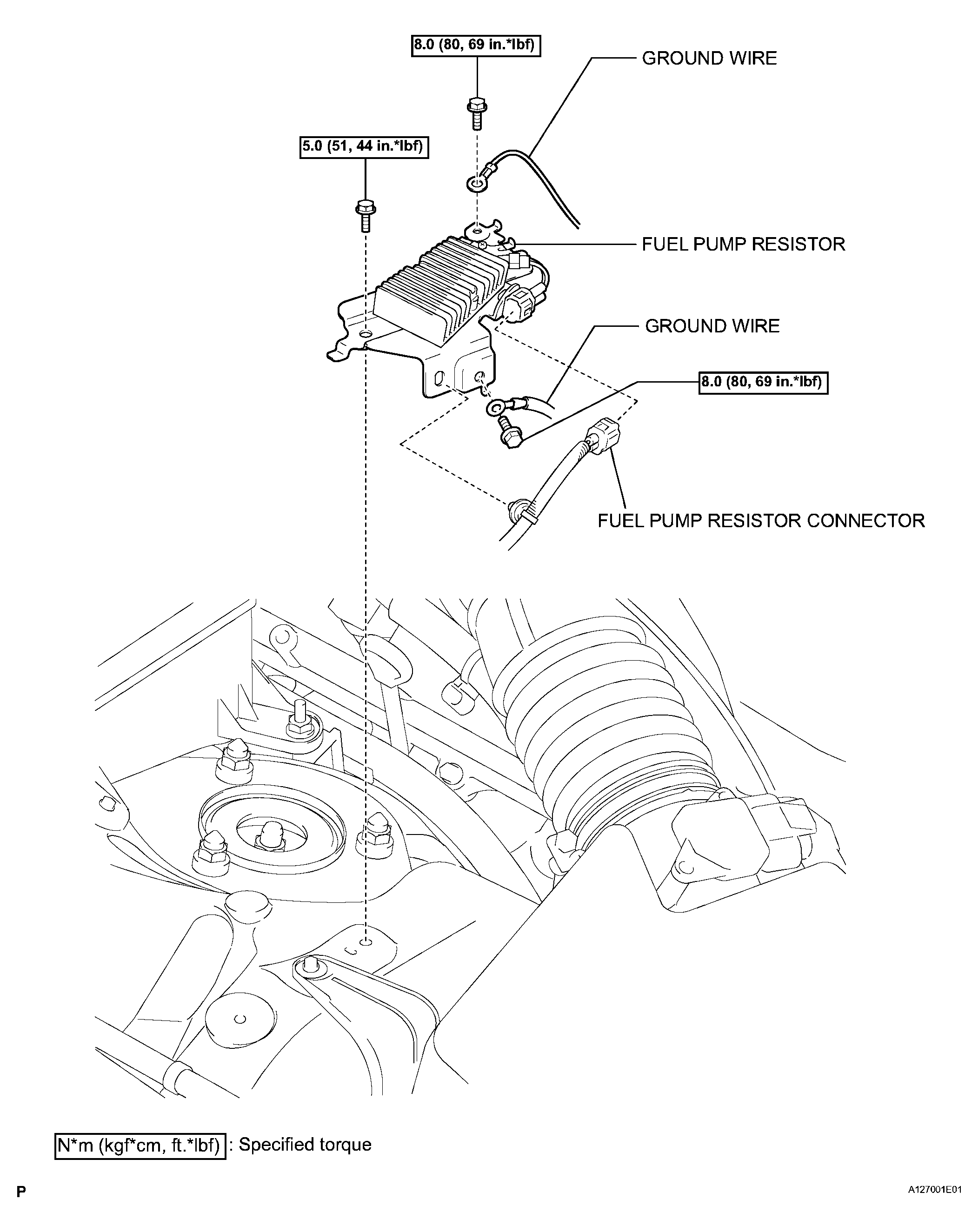

Fig 2: Fuel Pump Resistor Replacement Components (2 Of 2) With Torque Specifications
G04044636Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
