Engine Exhaust Assembly (4GR-FSE): Components

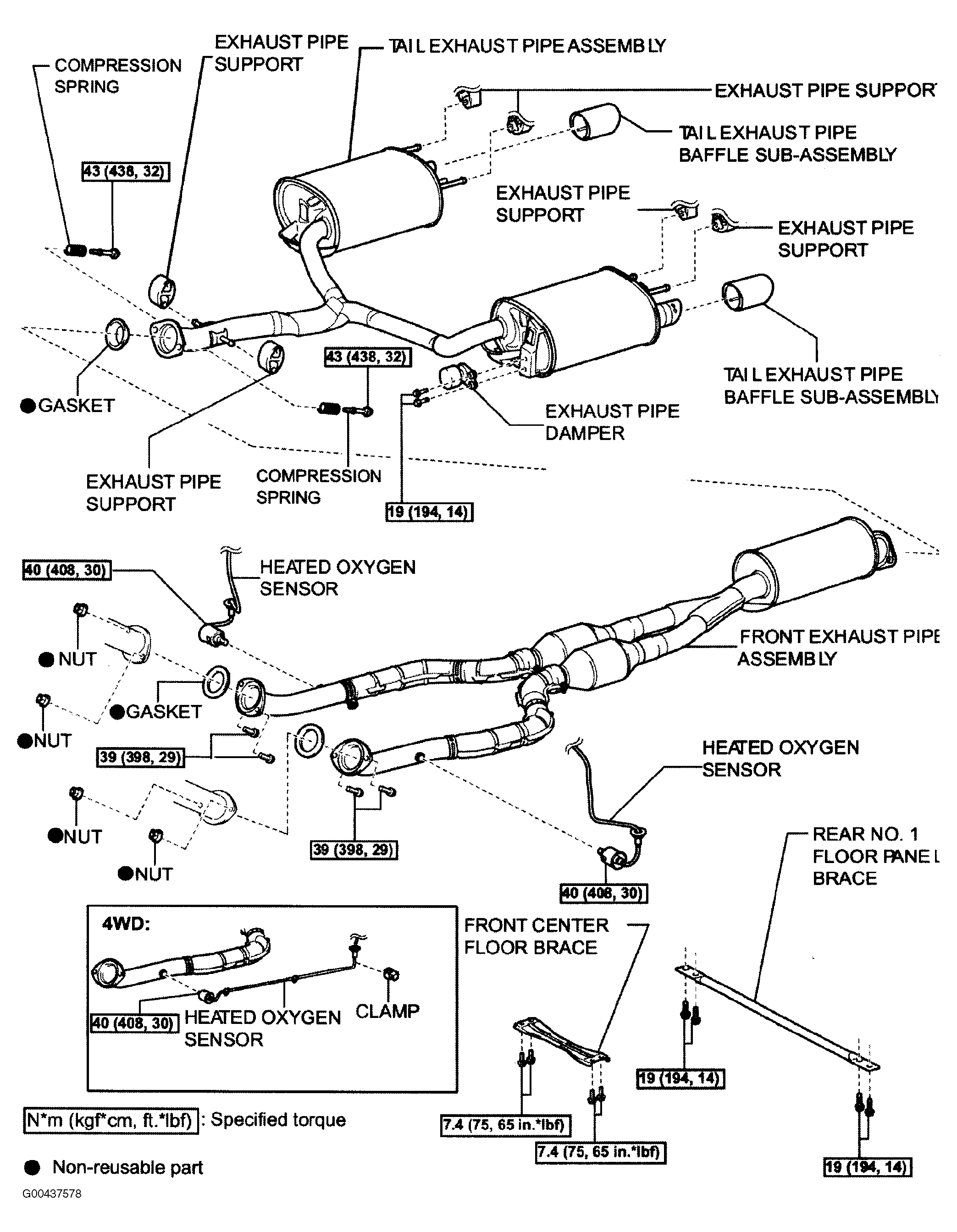

Fig 1: Identifying Exhaust Components

G00437578

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
