Parts Location

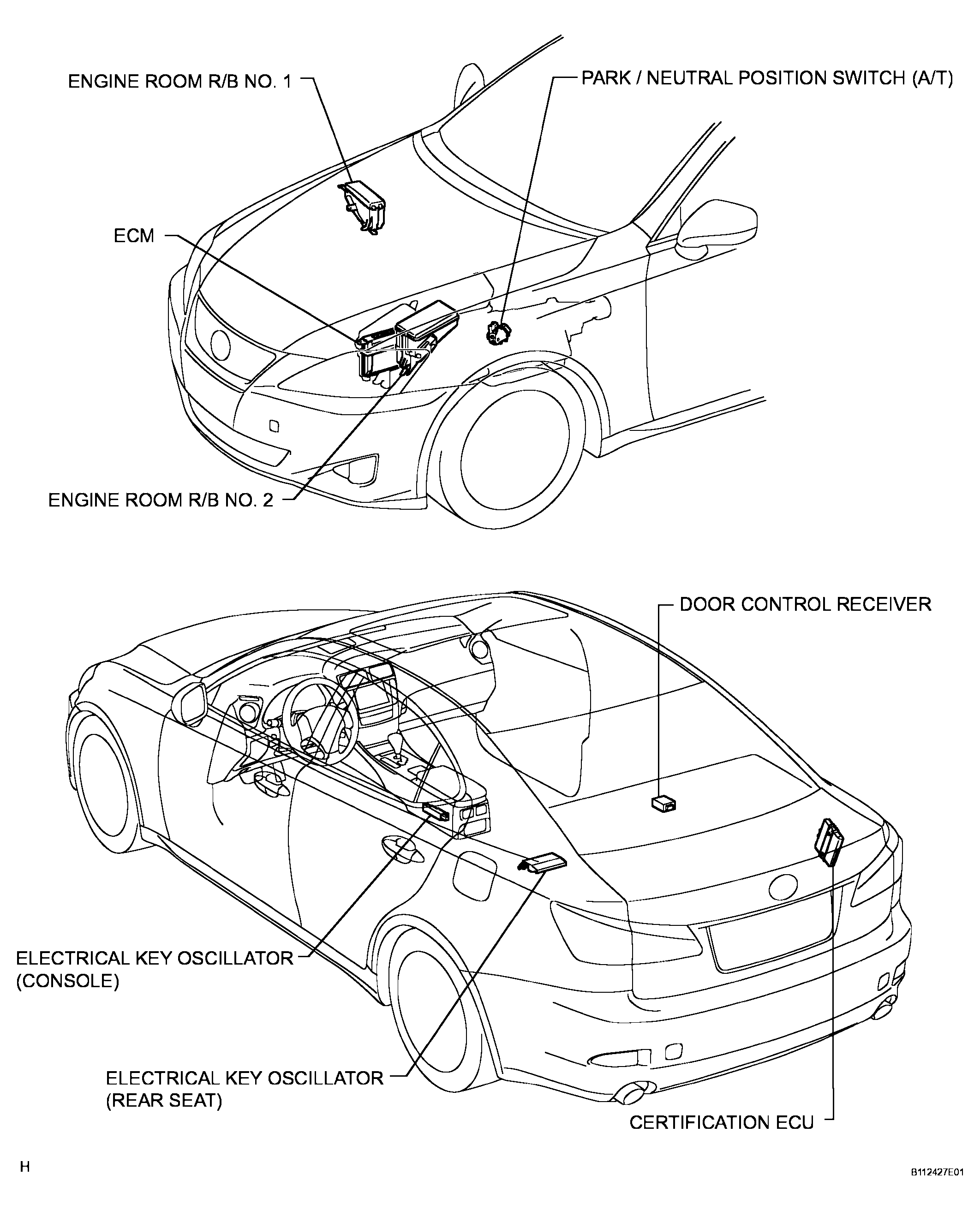

Fig 1: Identifying Starting Components (1 Of 2)
G04044918Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

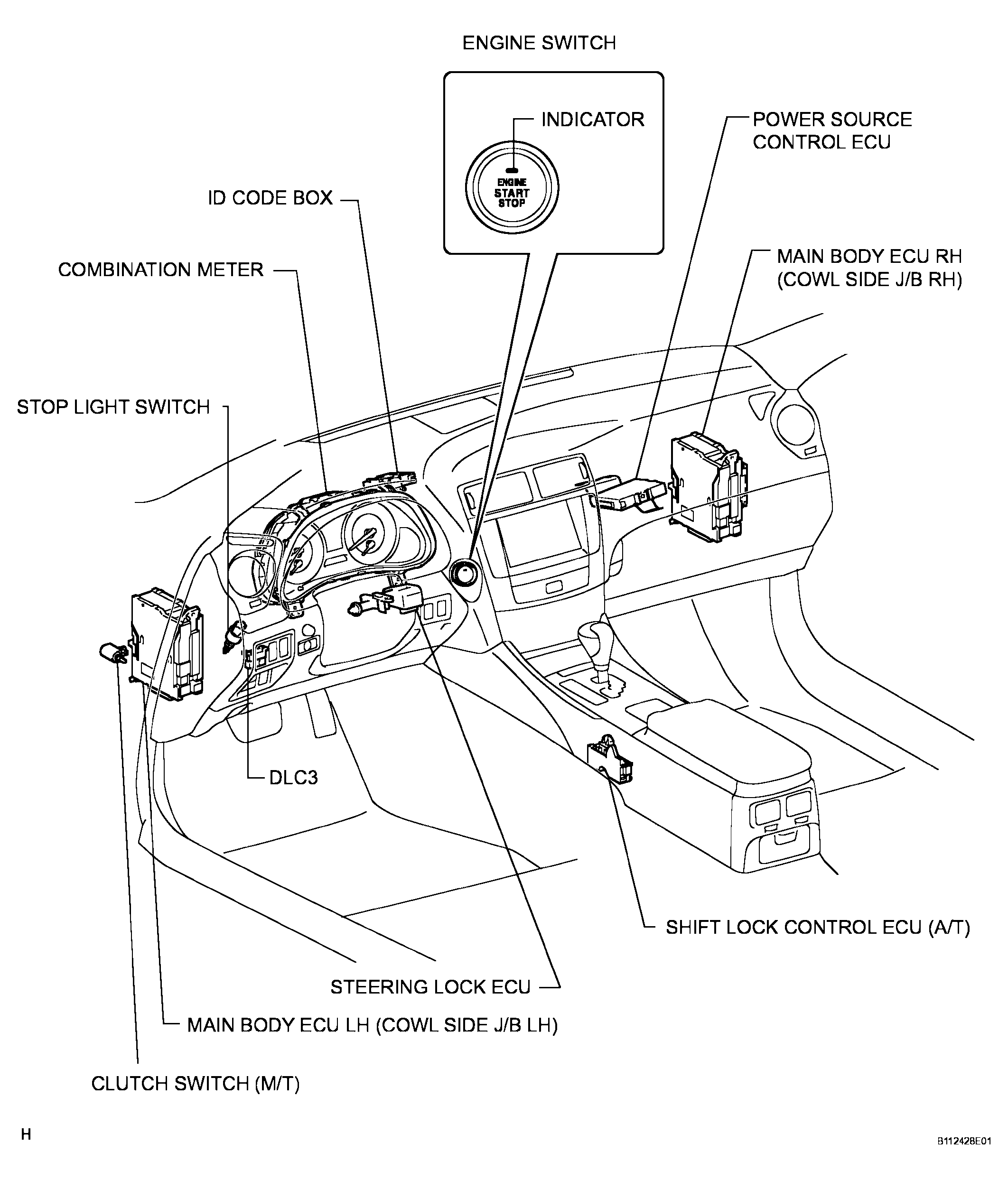

Fig 2: Identifying Starting Components (2 Of 2)
G04044919Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
