System Diagram

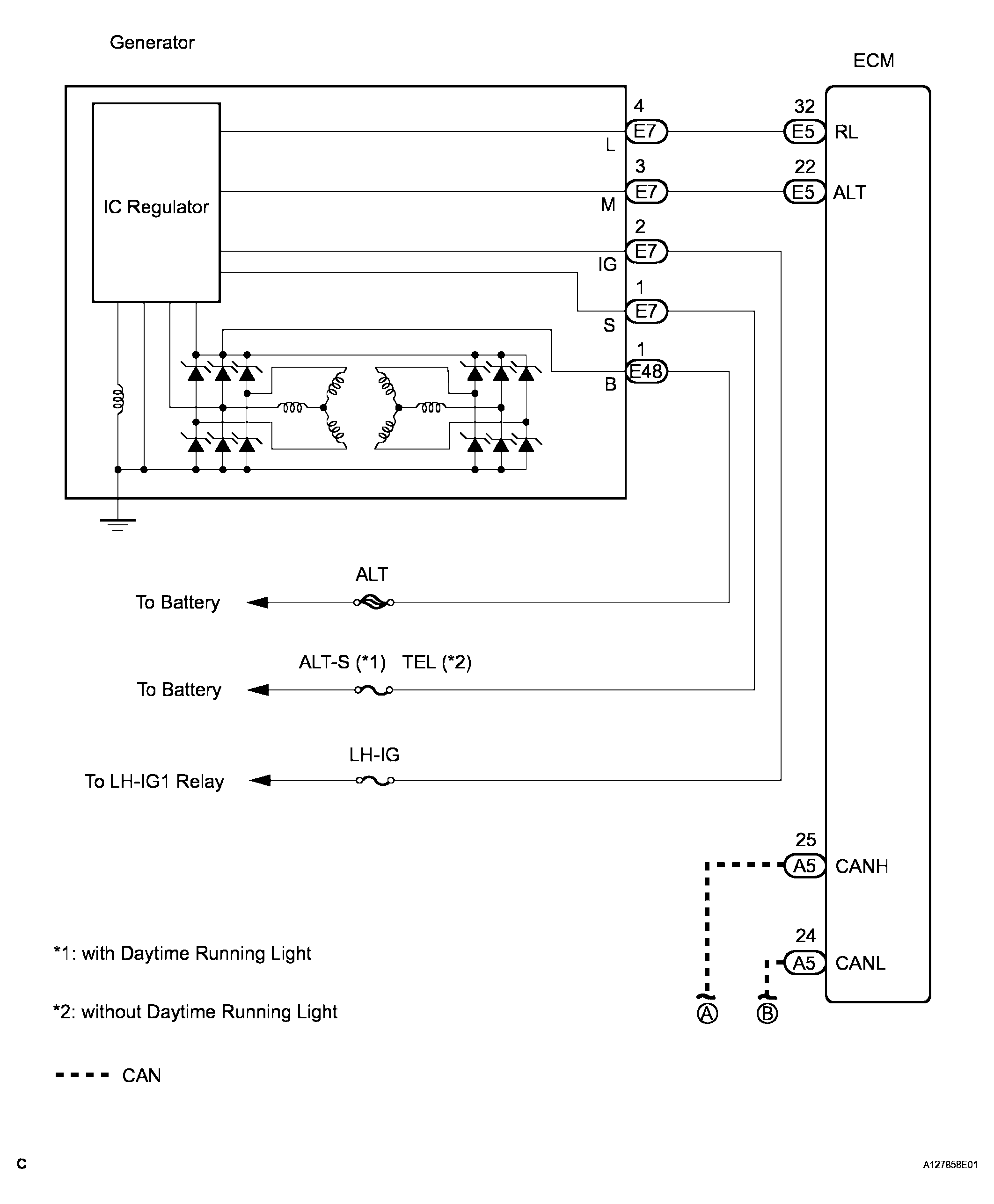

Fig 1: Identifying Charging System Diagram (1 Of 2)
G04045038Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

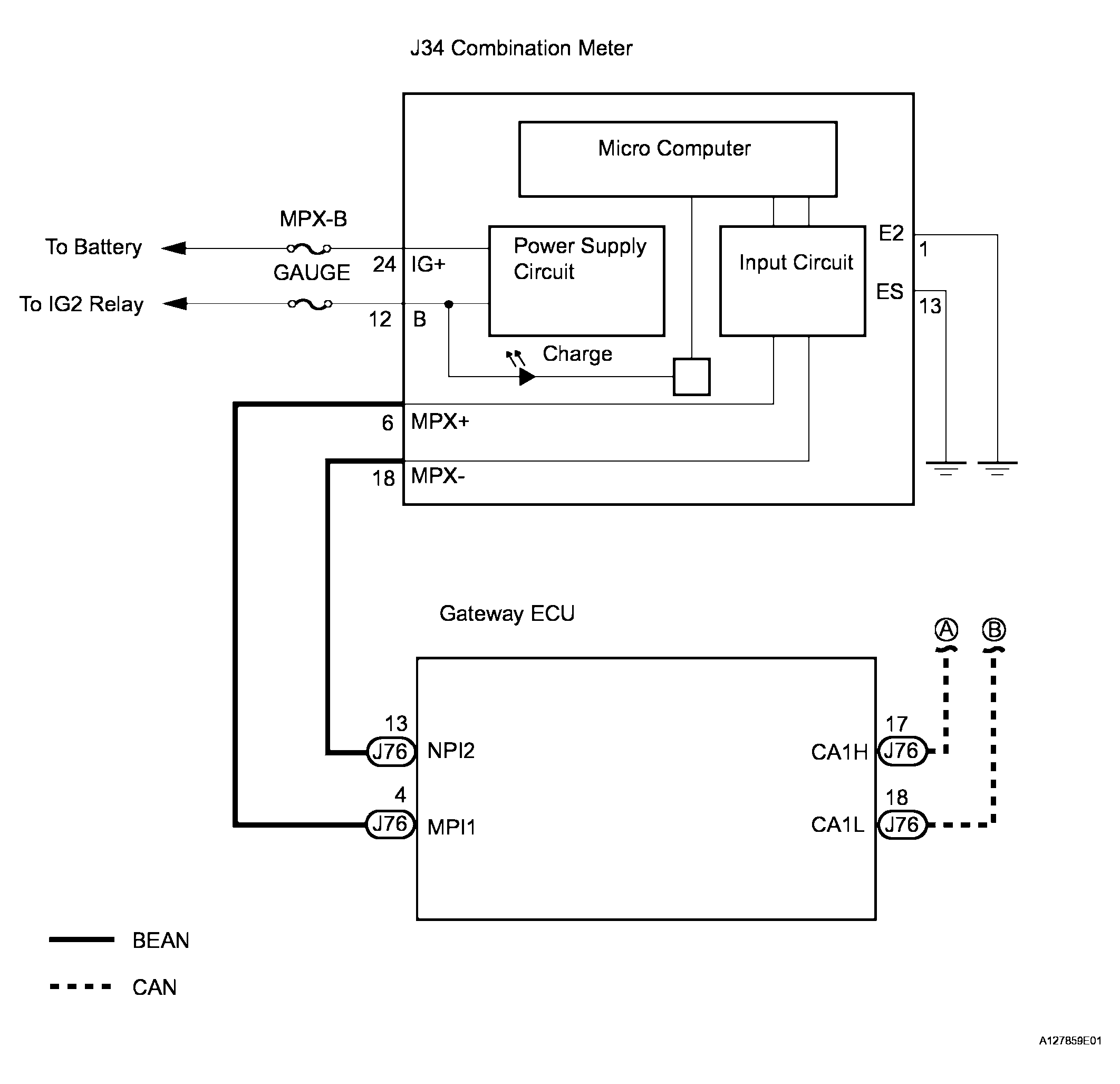

Fig 2: Identifying Charging System Diagram (2 Of 2)
G04045039Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
